Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>REMOVAL .
  5. Remove the snap pin and washer from the shifter arm.

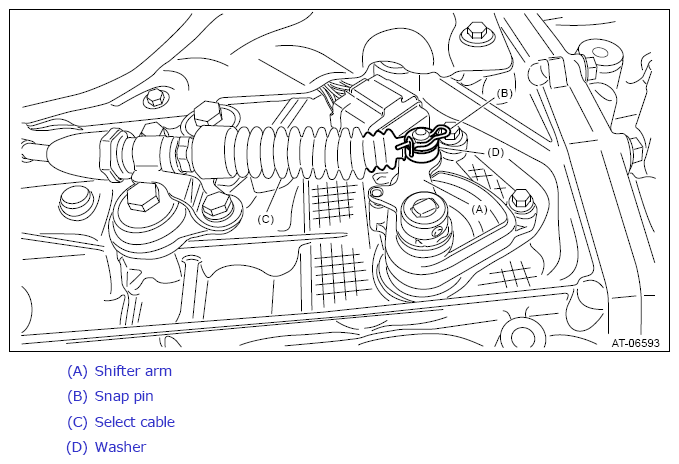

    Fig 1: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
    G11265481Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spring pin and shifter arm.

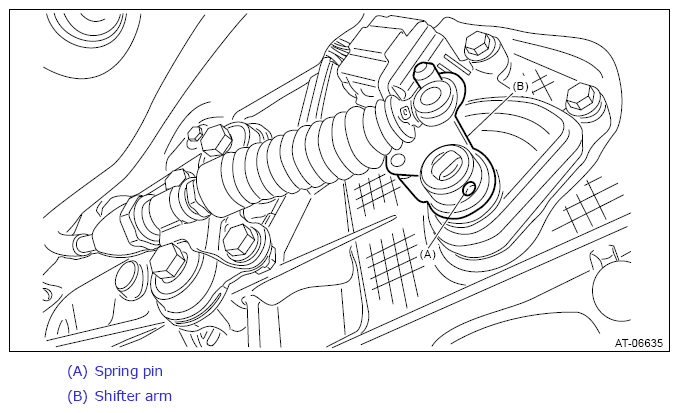

    Fig 2: Identifying Spring Pin And Shifter Arm
    G11265482Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the inhibitor harness connector from inhibitor switch.
  8. Remove the two inhibitor switch securing bolts.

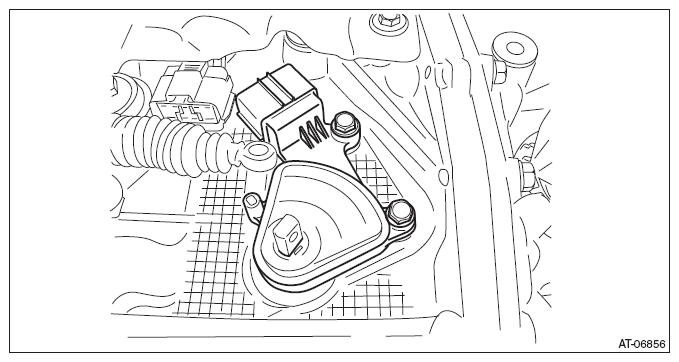

    Fig 3: Removing Inhibitor Switch Bolts
    G08317792Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the inhibitor switch from the transmission case.
