Extension Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the extension case and transmission hanger.
    NOTE: The total number of extension case mounting bolts is 13.

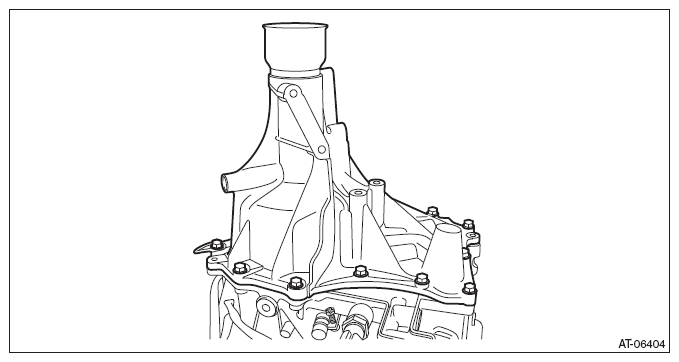

    Fig 1: Removing Extension Case And Transmission Hanger
    G08317892Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring.
Fig 2: Locating O-Ring
G08317893Courtesy of SUBARU OF AMERICA, INC.
