Transmission Control Device: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>REMOVAL .
  3. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan and Strainer>REMOVAL .
  4. Shift the manual plate to "N" range, and remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
    Fig 1: Locating Spring Pin
    G08317943Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the detent spring.
    Fig 2: Locating Detent Spring Bolt
    G08317944Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.

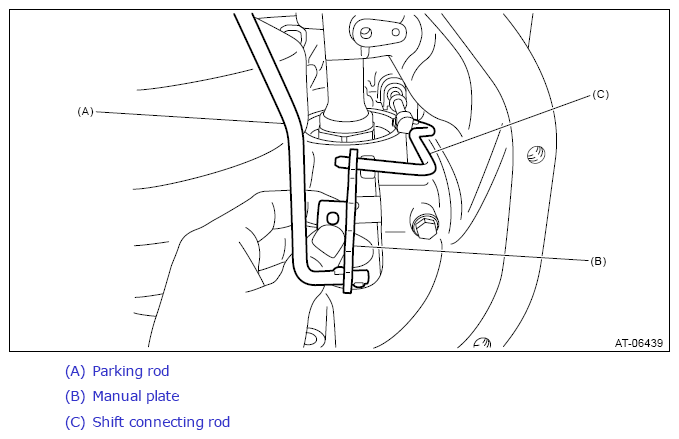

    Fig 3: Identifying Parking Rod, Manual Plate And Shift Connecting Rod
    G11265648Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the manual plate and parking rod.
  8. Remove the bolt, and remove the shifter arm shaft.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.
    Fig 4: Locating Shifter Arm Shaft Bolt
    G08317946Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the manual valve.
    Fig 5: Removing Manual Valve
    G08317947Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL .
  11. Remove the parking support.
Fig 6: Locating Parking Support Bolts
G08317948Courtesy of SUBARU OF AMERICA, INC.
