Parking Pawl: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Shift the range select lever to "N" range.
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL .
  4. Remove the parking pawl shaft, return spring and parking pawl.

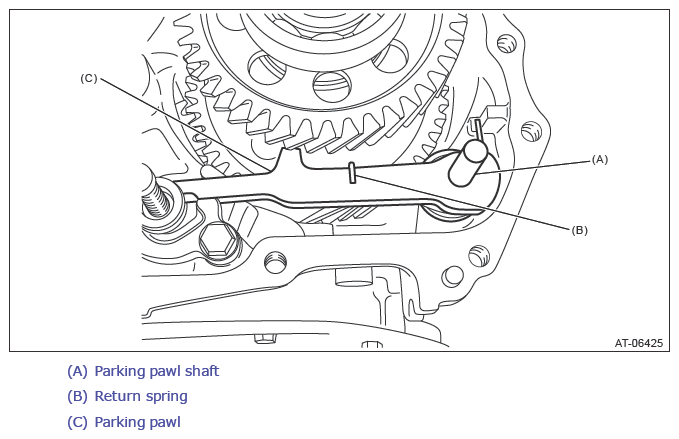

Fig 1: Identifying Parking Pawl Shaft, Return Spring And Parking Pawl
G11265630Courtesy of SUBARU OF AMERICA, INC.
