Secondary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  • When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the under cover front - transmission.
  4. Remove the harness connector from secondary speed sensor.
  5. Remove the secondary speed sensor.

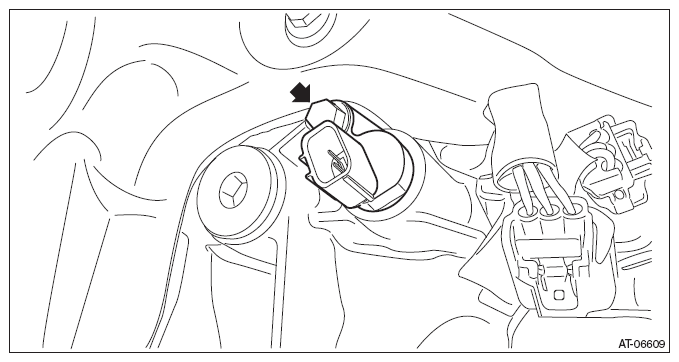

Fig 1: Locating Secondary Speed Sensor Bolt
G08317800Courtesy of SUBARU OF AMERICA, INC.
