Assembly and covering work when painting the rear fender - AR98.00-P-0207EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0

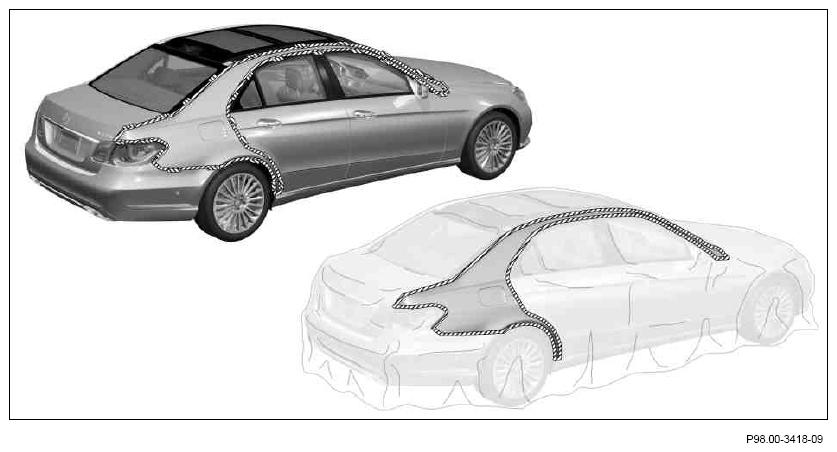

Rear fender in paint stage 2/3

Fig 1: Protecting Rear Fender Paint Applying Area - Rear Fender In Paint Stage 2/3

Courtesy of MERCEDES-BENZ USA

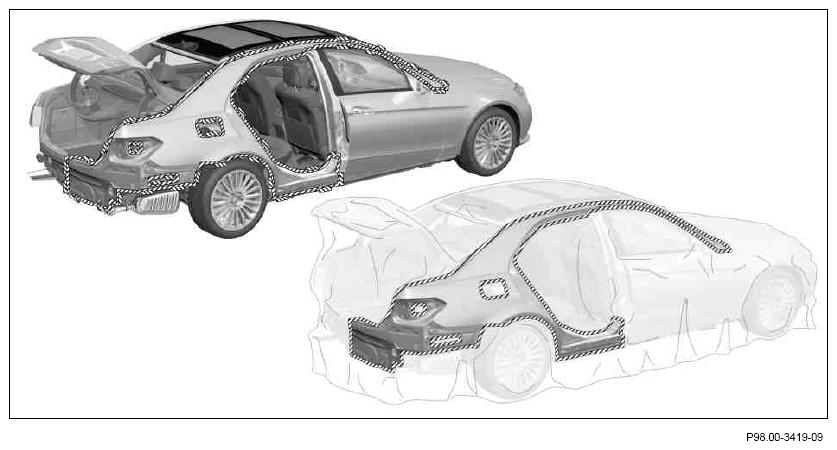

Rear fender in paint stage 1E

Fig 2: Protecting Rear Fender Paint Applying Area - Rear Fender In Paint Stage 1E

Courtesy of MERCEDES-BENZ USA

	Notes on paintwork repairs		AH98.00-P-9408-02A
	Mask off and cover in paint stage 2/3
1.1	Detach rear bumper	Paint stage 2
			AR88.20-P-2200EW
		It is not necessary to remove the rear bumper; this can remain on the vehicle.
1.2	Remove rear bumper	Paint stage 3
			AR88.20-P-2200EW
		If the damaged area is in the area of the rear bumper, it may be necessary to remove the bumper.
2	Remove longitudinal member panel	Paint stage 3
			AR88.80-P-6000EW
		If the damaged area is in the area of the longitudinal member panel, it may be necessary to remove the longitudinal member panel.
3	Remove taillamp		AR82.10-P-4905EW
4	Remove drip rail		AR88.80-P-4000EW
5	Remove trim strip at side roof paneling	Long wedge	Figure
6	Remove tank flap	Right side of vehicle
6	Remove tank flap	Right side of vehicle	AR88.60-P-2000EW
7.1	Mask off tank recess	Paint stage 2, right side of vehicle.
7.2	Remove tank recess	Paint stage 3, right side of vehicle.
			AR88.60-P-2000EW
		If the damaged area is in the area of the tank recess, it may be necessary to remove the tank recess.
8	Install fuel filler flap, mask off inside of fuel filler flap and close fuel filler flap	Paint stage 2, right side of vehicle.
8		Paint stage 2, right side of vehicle.	AR88.60-P-2000EW
9	Remove cover from trunk sealing frame		AR88.80-P-0004EW
9	Remove cover from trunk sealing frame	If the damaged area is in the area of the cover at the sealing frame, it may be necessary to remove the cover at the sealing frame.	AR88.80-P-0004EW
10	Mask off all openings using adhesive tape
11	Mask off rear fender all around edge
12	Cover areas of the vehicle that are not to be painted with foil
	Mask off and cover in paint stage 1E
13	Remove rear bumper		AR88.20-P-2200EW
14	Remove rear crossmember under bumper
15	Remove bracket for rear bumper
16	Remove rear wall window	MODEL 212.0 without CODE Z04 (Light armoring)	AR67.20-P-2000P
16	Remove rear wall window	MODEL 212.0 with CODE Z04 (Light armoring)	AR67.20-P-2000EG
17	Remove longitudinal member panel		AR88.80-P-6000EW
18	Remove taillamp		AR82.10-P-4905EW
19	Remove tank recess	Right side of vehicle
19	Remove tank recess	Right side of vehicle	AR88.60-P-2000EW
20	Remove rear door		AR72.12-P-0600CW
21	Remove edge guard for door cutout of rear door
22	Detach floor covering
23	Remove edge guard for trunk cutout
24	Remove cover from trunk sealing frame		AR88.80-P-0004EW
25	Remove drip rail		AR88.80-P-4000EW
26	Remove trim strip at side roof paneling	Long wedge	Figure
27	Remove rear fender liner
28	Remove rear vent flap
29	Mask off all openings using adhesive tape
30	Mask off rear fender all around edge
31	Cover areas of the vehicle that are not to be painted with foil

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
