Retrofit Mercedes-Benz InCar Internet - AZ82.85-P-0005EW

MODEL 212.0##/2## 1# up to 5/31/12 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

MODEL 212.0##/2## 1# up to 5/31/12 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

MODEL 212.0##/2## 1# up to 5/31/12 up to model year 2013 with CODE 528 (COMAND with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (China version)

Routing diagram with code (518) Media interface

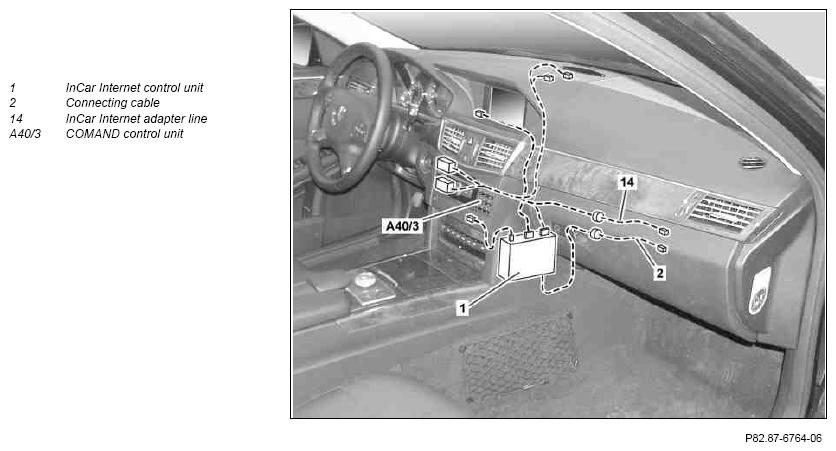

Fig 1: InCar Internet Control Unit Routing Diagram - With Code (518)

Courtesy of MERCEDES-BENZ USA

Routing diagram without code (518) Media interface

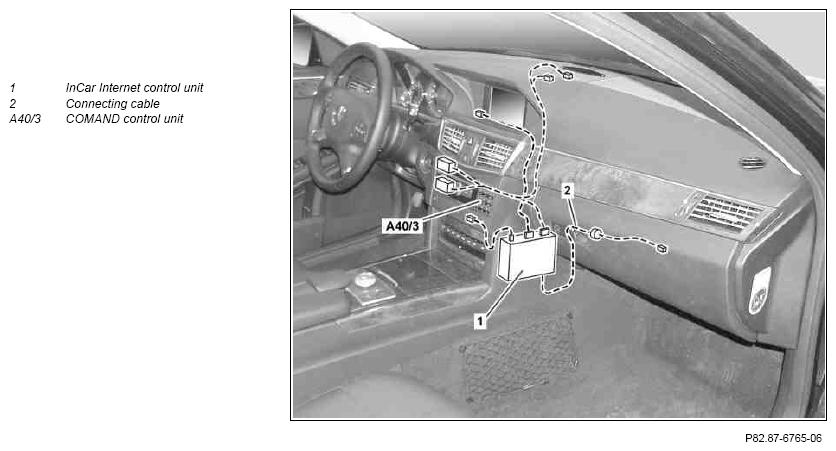

Fig 2: InCar Internet Control Unit Routing Diagram - Without Code (518)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move front passenger seat toward rear
2	Remove glove box
			AR68.10-P-1200EW
3	Remove COMAND controller unit (A40/3)	With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
4	Remove Audio/COMAND display	With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
	Install
5	Retrofit InCar Internet adapter wiring harness		AZ82.85-P-0005-02EW
6	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03EWA
7	Install Audio/COMAND display	With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
8	Retrofit connecting cable (2)		AZ82.85-P-0005-05EW
		Rechargeable screwdriver, rechargeable drill
9	Strap down the electrical connector for the AUX connection previously installed in the glove box to the vehicle wiring harness and wrap felt tape around it	Except CODE 518 (Media Interface)
10	Retrofit InCar Internet control unit (1)		AZ82.85-P-0005-04EW
11	Install COMAND controller unit	With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 528 (COMAND incl. DVD changer)
		With CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
12	Install glove box
			AR68.10-P-1200EW
13	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Mercedes-Benz InCar Internet retrofitted as per AZ82.85-P-0005EW" under field organization texts to design group 82.
14	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
15	Perform initial startup for InCar Internet with XENTRY	For the initial startup the model series 212 must be entered in the "ICI variant coding" menu item in XENTRY.
16	Disconnect STAR DIAGNOSIS
17	Perform function check of InCar Internet
