Retrofit Mercedes-Benz InCar Internet connecting cable - AZ82.85-P-0005-05EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## /2## 1#

Open lid of glove box (22).
Pull insulating felt (23) in cross-hatched area to one side.

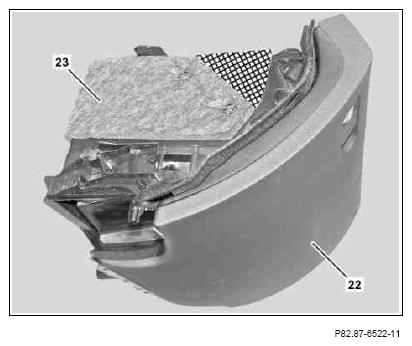

Fig 1: Glove Box Lid And Insulating Felt
Courtesy of MERCEDES-BENZ USA
- 3.1) Drill hole (arrow A) with a diameter of 19 mm, as shown, on the glove box (22).
  Cordless drill/driver

  In vehicles without code (518) Media Interface.
- 3.2) Drill holes (arrows A and B) with a diameter of 19 mm, as shown, on the glove box (22).
  Cordless drill/driver

  In vehicles with code (518) Media Interface. Note breakthrough for Media Interface electrical connector (broken line).

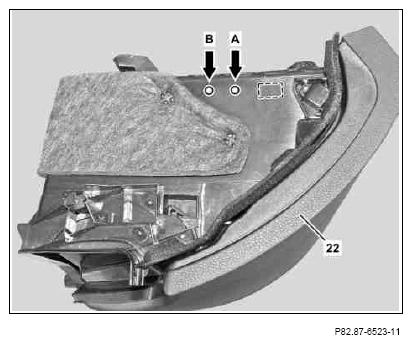

  Fig 2: Glove Box Hole
  Courtesy of MERCEDES-BENZ USA
- 4.1) Place InCar Internet connecting cable (2) into glove box (22) and route outwards through the previously made hole.
  On vehicles without code (518) Media interface.
- 4.2) Place InCar Internet connecting cable (2) and InCar Internet adapter line (4) into the glove box (22) and route outwards through the previously made hole.
  In vehicles with code (518) Media Interface.
- 5.1) Insert grommet (2.2) into hole.
  On vehicles without code (518) Media interface.
- 5.2) Insert grommets (2.2 and 4.2) into the hole.
  In vehicles with code (518) Media Interface.

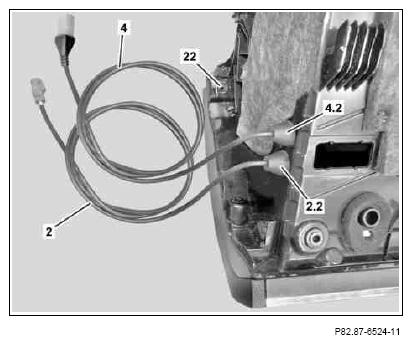

  Fig 3: Placing Incar Internet Connecting Cable And Incar Internet Adapter Line Into The Glove Box
  Courtesy of MERCEDES-BENZ USA
- 6.1) Route InCar Internet connecting cable (2) under the insulating felt (23) to the rear of the glove box (22).
  On vehicles without code (518) Media interface.
- 6.2) Route InCar Internet connecting cable (2) and InCar Internet adapter line (4) under the insulating felt (23) to the rear of the glove box (22).
  In vehicles with code (518) Media Interface.

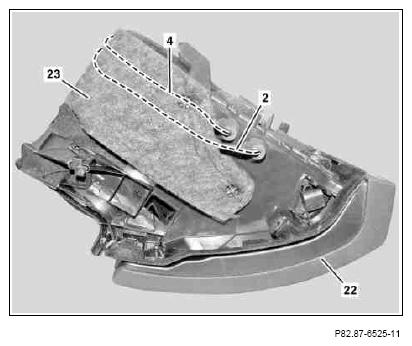

  Fig 4: Incar Internet Adapter Line And Insulating Felt
  Courtesy of MERCEDES-BENZ USA
