Retrofit Mercedes-Benz InCar Internet control unit - AZ82.85-P-0005-04EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## /2## 1#

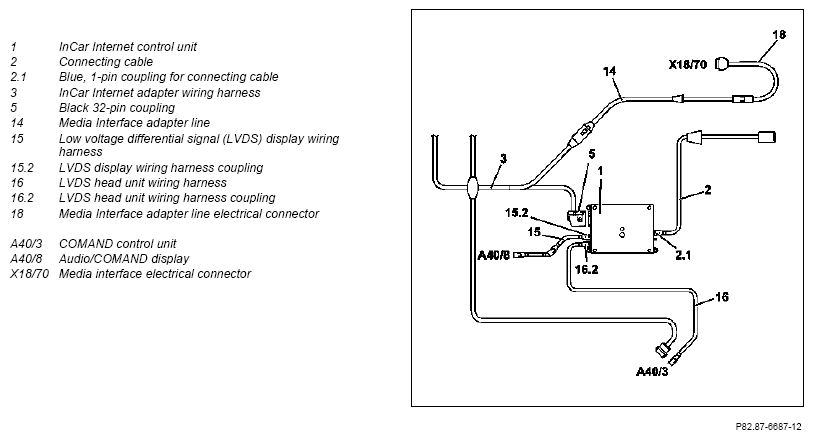

Connection diagram with code (518) Media interface

Fig 1: Incar Internet Control Unit Connection Diagram (With Code 518)

Courtesy of MERCEDES-BENZ USA

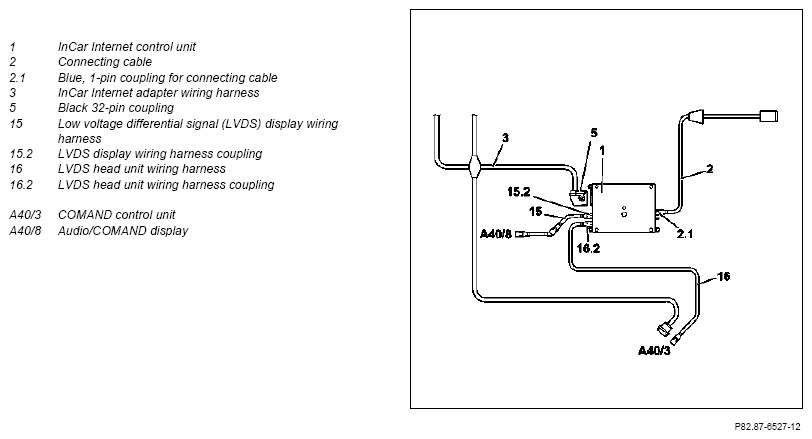

Connection diagram without code (518) Media Interface

Fig 2: Incar Internet Control Unit Connection Diagram (Without Code 518)

Courtesy of MERCEDES-BENZ USA

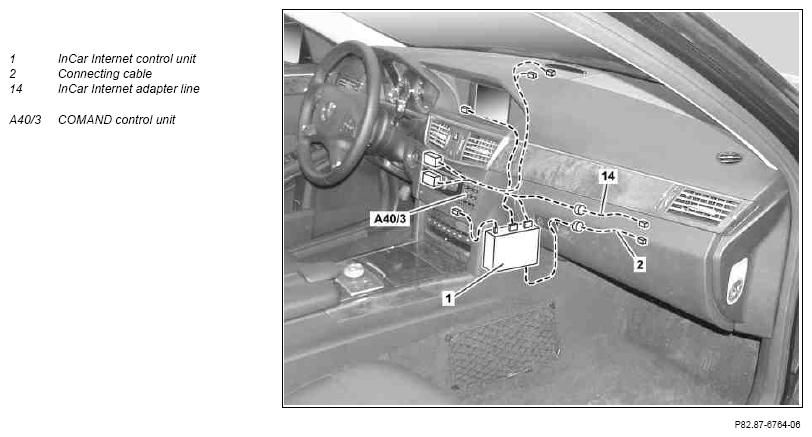

Routing diagram with code (518) Media interface

Fig 3: Incar Internet Control Unit Wiring Harness Routing Diagram (With Code 518)

Courtesy of MERCEDES-BENZ USA

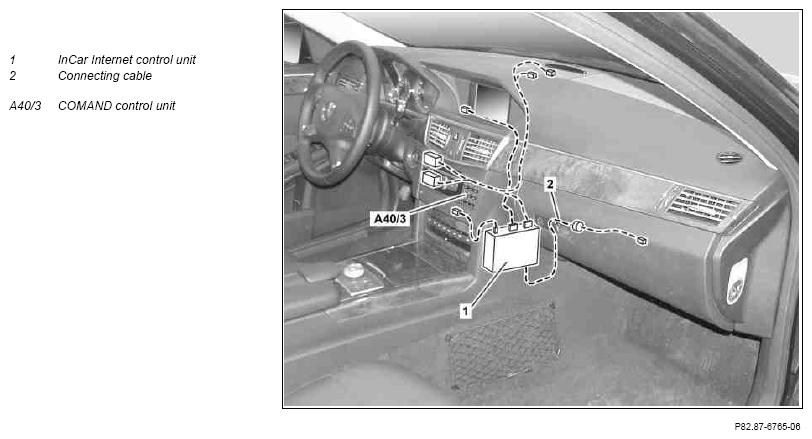

Routing diagram without code (518) Media Interface

Fig 4: COMAND Control Unit Wiring Harness Routing Diagram (Without Code 518)

Courtesy of MERCEDES-BENZ USA

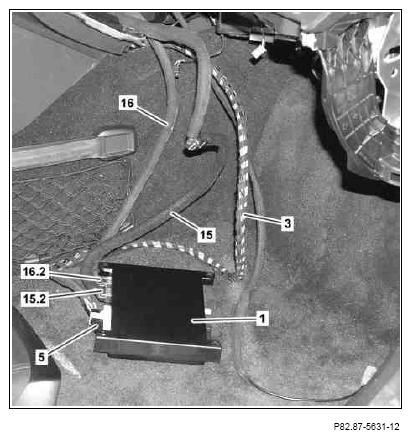

Connect black, 32-pin coupling (5) of InCar Internet adapter wiring harness (3), coupling for LVDS display wiring harness (15.2) of LVDS display wiring harness (15) and coupling for LVDS head unit wiring harness (16.2) of LVDS head unit wiring harness (16), as shown, to InCar Internet control unit (1).

Fig 5: LVDS Head Unit Wiring Harness And Incar Internet Control Unit
Courtesy of MERCEDES-BENZ USA

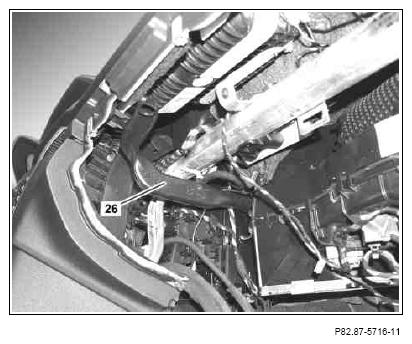

Remove air duct (26)

Fig 6: Air Duct
Courtesy of MERCEDES-BENZ USA

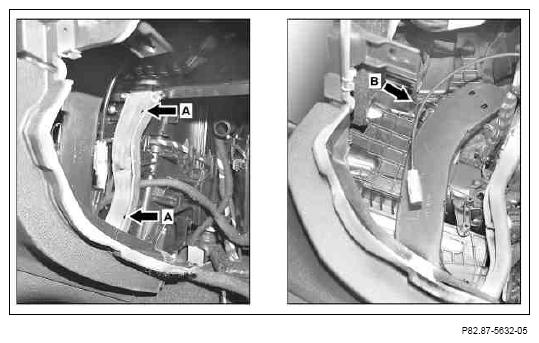

Route cable ties through holes (arrows A) and holder (arrow B).
The cable ties are used to fasten the InCar Internet control unit.

Fig 7: Routing Cable Ties Through Holes And Holder
Courtesy of MERCEDES-BENZ USA

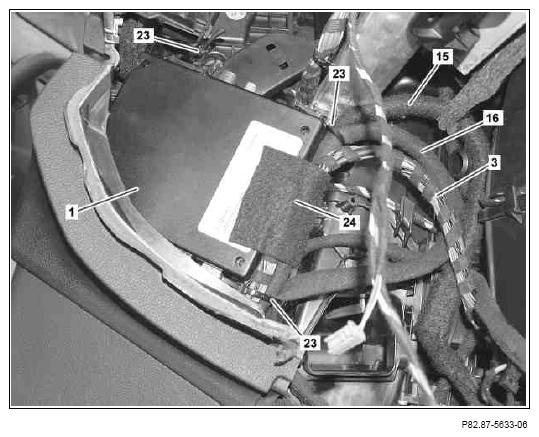

Route InCar Internet adapter wiring harness (3), LVDS display wiring harness (15) and LVDS head unit wiring harness (16) to the InCar Internet control unit (1) and fasten in place using felt tape (24) as shown.
Install InCar Internet control unit (1), as shown, and fasten in place using previously positioned cable ties (23).
Route cable ties through attachment points on InCar Internet control unit (1) and tighten.

The InCar Internet control unit (1) must be fixed so that any noise development is prevented.

Fig 8: Incar Internet Control Unit And Cable Ties
Courtesy of MERCEDES-BENZ USA

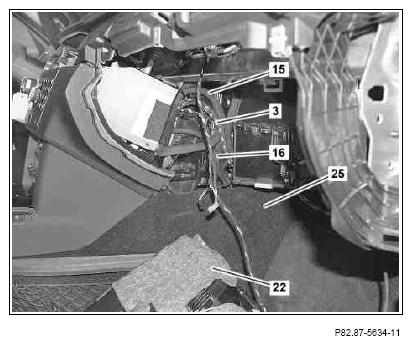

Route excess length of InCar Internet adapter wiring harness (3), of LVDS display wiring harness (15) and LVDS head unit wiring harness (16) behind the floor covering on the passenger-side (25) in loops.
Place glove box (22) into footwell on passenger-side.

Fig 9: Incar Internet Adapter Wiring Harness And Glove Box
Courtesy of MERCEDES-BENZ USA

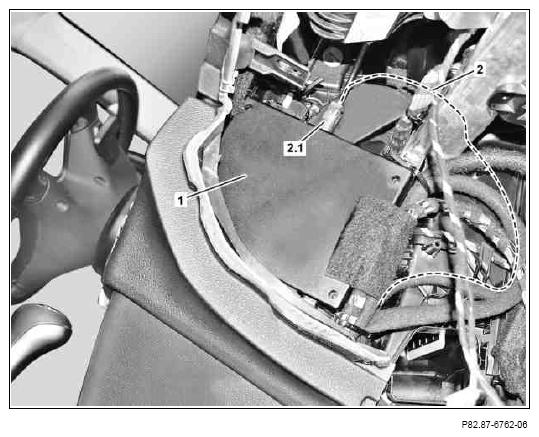

Connect blue 1-pin connecting cable coupling (2.1) of connecting cable (2) to InCar Internet control unit (1).

Fig 10: Incar Internet Control Unit And Cable
Courtesy of MERCEDES-BENZ USA

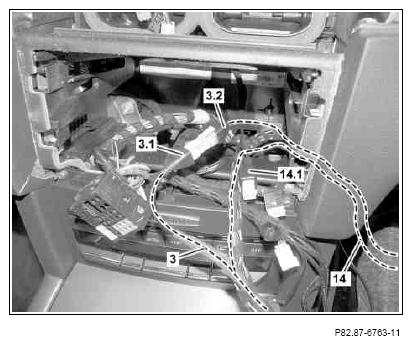

Detach white 4-pin coupling (3.1) and white 4-pin connector (3.2) of InCar Internet adapter wiring harness (3).
In vehicles with code (518) Media Interface.
Connect white 4-pin coupling (3.1) with white 4-pin connector (14.1) of media interface adapter line (14).
In vehicles with code (518) Media Interface.

Fig 11: Media Interface Adapter Line Wiring Harness Routing Diagram
Courtesy of MERCEDES-BENZ USA
Connect black 1-pin coupling (18.1) of media interface electrical connector adapter line (18) to adapter wiring harness for intelligent head unit.
In vehicles with code (518) Media Interface.
Connect black 24-pin plug (18.2) with media interface electrical connector.
In vehicles with code (518) Media Interface.

Fig 12: Media Interface Electrical Connector Adapter Line Coupling
Courtesy of MERCEDES-BENZ USA

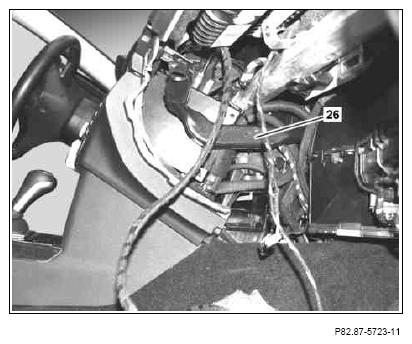

Install air duct (26).

Fig 13: Air Duct
Courtesy of MERCEDES-BENZ USA
