Remove/install air conditioner housing - AR83.30-P-5200CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
| Remove/install | |||
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Drain air conditioning system | AR83.30-P-1760CW | |
| 2 | Remove wiper system | AR82.30-P-6400CW | |

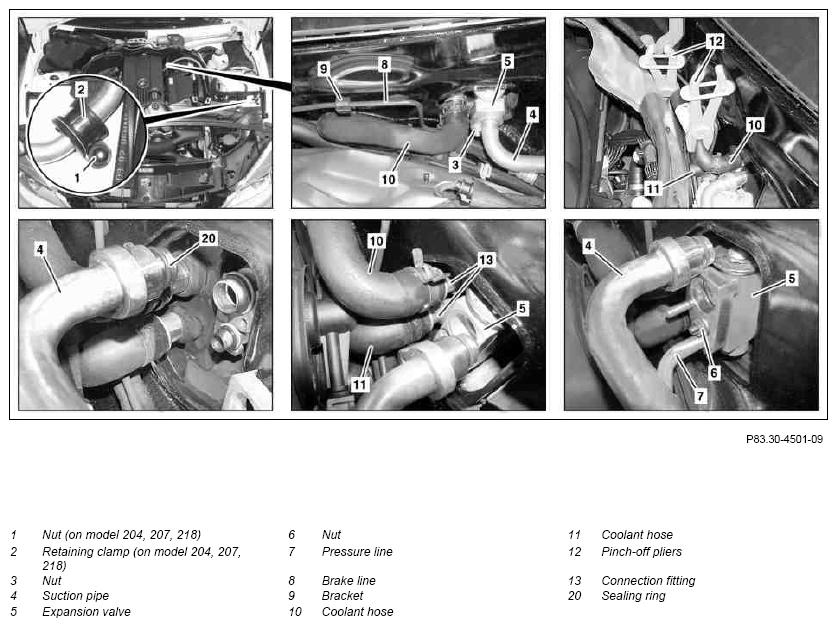

| 3 | Unscrew nut (1) and detach retaining clamp (2) | MODEL 204, 207, 218 | |
| 4 | Unscrew nut (3) | ||
| 5 | Pull suction line (4) out of expansion valve (5) and close off | ||
| 6 | Unscrew nut (6) | ||
| 7 | Pull pressure line (7) out of expansion valve (5) and close off | ||
| 8 | Reduce pressure in cooling system | ||
| 9 | Unclip brake line (8) from holder (9) and push to one side | ||
| 10 | Clamp off coolant hoses (10, 11) using pinch-off pliers (12) and remove from the connection fitting (13) on the air conditioner housing (A32) | Tools for installing/removing cooling and heating hoses | |
| 11 | Seal connection fitting (13) on air conditioner housing (A32) | Coolant leaks through connection fittings (13) that are not closed off when the air conditioner housing (A32) is removed. The vehicle interior can hereby be soiled. |
|
| 12 | Remove cross member under instrument panel | MODEL 204, 207, 212, 218 | |
| MODEL 204, 207, 212 | AR68.10-P-1120CW | ||

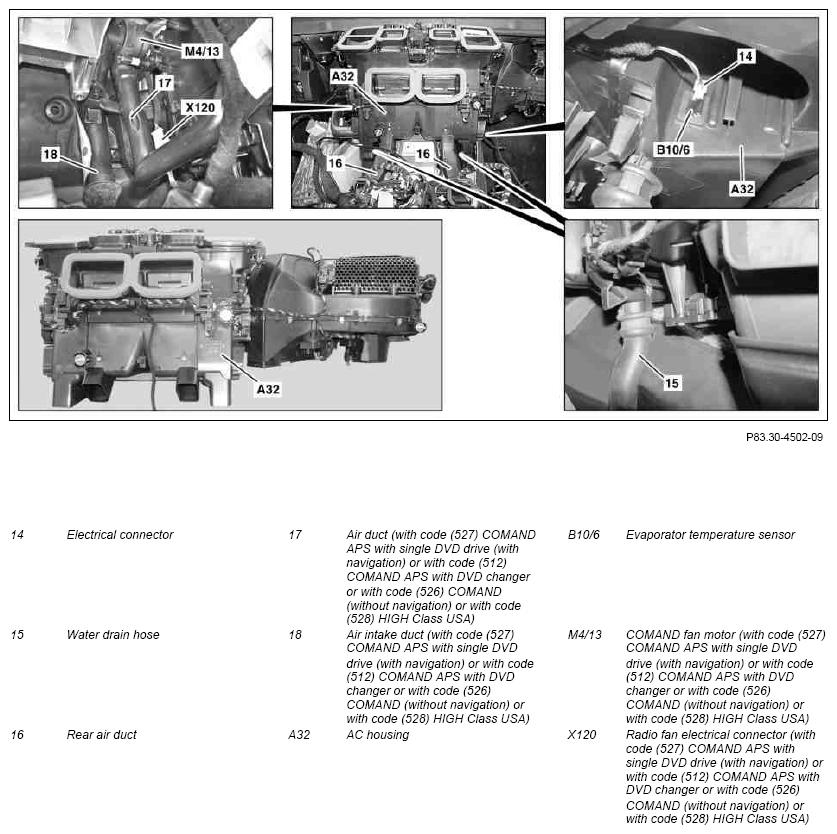

| 13 | Disconnect radio fan electrical connector (X120) from COMAND fan motor (M4/13) | MODEL 204, 207, 212, 218 with CODE 512 (COMAND APS with DVD changer) MODEL 204, 207, 212, 218 with CODE 526 (COMAND (without navigation)) MODEL 204, 207, 212, 218 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204, 207, 212, 218 with CODE 528 (HIGH Class USA) |
|
| 14 | Disconnect electrical connector (14) from evaporator temperature sensor (B10/6) | ||
| 15 | Detach left and right water drain hoses (15) from air conditioner housing (A32) | ||
| 16 | Detach rear left and right air ducts (16) from air conditioner housing (A32) | ||
| 17 | Remove air duct (17) from COMAND fan motor (M4/13) | MODEL 204, 207, 212, 218 with CODE 512 (COMAND APS with DVD changer) MODEL 204, 207, 212, 218 with CODE 526 (Comand DVD (without navigation)) MODEL 204, 207, 212, 218 with CODE 527 (COMAND APS) MODEL 204, 207, 212, 218 with CODE 528 (HIGH Class USA) |
|
| 18 | Remove air intake duct (18) from COMAND fan motor (M4/13) | MODEL 204, 207, 212, 218 with CODE 512 (COMAND APS with DVD changer) MODEL 204, 207, 212, 218 with CODE 526 (COMAND (without navigation)) MODEL 204, 207, 212, 218 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204, 207, 212, 218 with CODE 528 (HIGH Class USA) |
|
| 19 | Have someone assist you when removing the air conditioner housing (A32) from the vehicle | Carefully take out air conditioner housing (A32). To prevent damage to components in interior. |
|
| 20 | Install in the reverse order | ||
| 21 | Fill with coolant, vent cooling system and check for signs of leaks | MODEL 207 with ENGINE 276.8 | AR20.00-P-1142A |
| MODEL 212.098/298 with ENGINE 651.9 | AR20.00-P-1142EH | ||
| MODEL 204 with ENGINE 271, 272, 642, 646, 651 MODEL 207 with ENGINE 271, 272, 273, 642, 651 MODEL 212 with ENGINE 271 |
AR20.00-P-1142CW | ||
| MODEL 204, 212 with ENGINE 156 | AR20.00-P-1142CMG | ||
| MODEL 204 with ENGINE 276 MODEL 207 with ENGINE 276.9, 278 |
AR20.00-P-1142FH | ||
| MODEL 212, 218 with ENGINE 157, 276, 278 | AR20.00-P-1142EL | ||
| MODEL 212 with ENGINE 272, 273 | AR20.00-P-1142EWS | ||
| MODEL 212, 218 with ENGINE 642 | AR20.00-P-1142OGE | ||
| MODEL 212 (except 212.098/298), 218 with ENGINE 651 | AR20.00-P-1142OMA |
