Remove/install wiper system - AR82.30-P-6400CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218

Shown on model 204.0/2

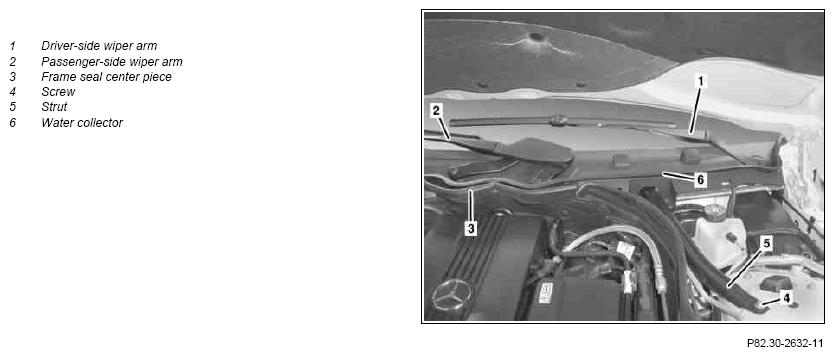

Fig 1: Wiper System Remove/Install Components - Shown On Model 204.0/2 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

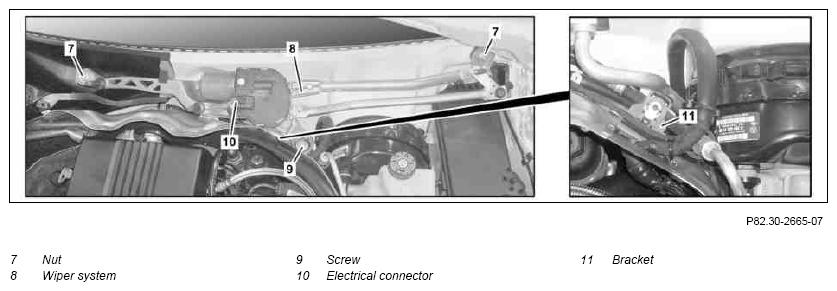

Fig 2: Wiper System Remove/Install Components - Shown On Model 204.0/2 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Model 218

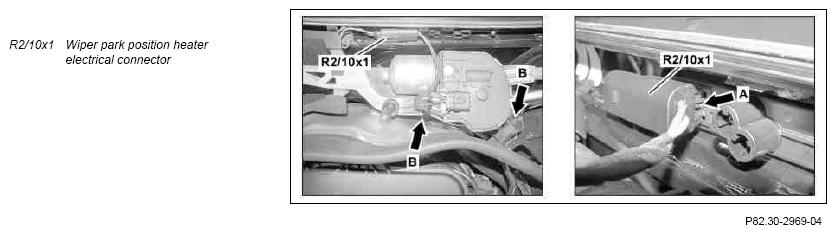

Fig 3: Wiper System Remove/Install Components - Shown On Model 218

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.8.10

Value changed: Nut for strut to suspension strut tower

*BA62.30-P-1006-02G

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Remove driver-side wiper arm (1) and passenger-side wiper arm (2)		AR82.30-P-6100CW
2	Remove frame seal center piece (3)	In model 204, 207, 212
3	Remove water collector (6)
4	Remove strut (5)	On model 204 the strut (5) is attached with the bolt (4) of the suspension strut.
			*BA32.25-P-1003-04M
		On model 207 the strut (5) is fastened below the windshield using the bolt (4) of the suspension strut and two nuts.
			*BA32.25-P-1003-04M
			*BA62.30-P-1007-02G
		In model 212 and 218 the strut (5) is attached to the mounting console with a nut.
			*BA62.30-P-1006-02G
5	Unscrew bolt (9)	Do not change installation position of bracket (11) at partition wall, since this would change the contact pressure of the wiper arms and therefore the wiping area.
			*BA82.30-P-1002-01M
6	Unscrew nuts (7)		*BA82.30-P-1003-01M
7	Disconnect electrical connector (10) on wiper motor
8	Unplug wiper park position heater electrical connector (R2/10x1)	Model 218 Unplug wiper park position heater electrical connector (R2/10x1) carefully to avoid damaging the wiper park position heater connections. Unlock wiper park position heater electrical connector (R2/10x1) at the catch tab (arrow A), detach from holder and unplug. Unclip wiring harness bracket (arrows B) from wiper system.
9	Remove wiper system (8)
10	Install in the reverse order	Before installing a new wiper system (8), the bracket (11) of the new wiper system (8) must be removed.

SUSPENSION STRUTS

Number	Designation		Model 204.00/02/04/05/0 6/20/22/24/25/30/33/34/35 without code 483	Model 204.00/02/04/05/06/20/22/24/25/30/33/34/35 with code 483, model 204.077/277/377
BA32.25-P-1003-04M	Suspension strut to body	Nm	33	33

SUSPENSION STRUTS

Number	Designation		Model 204.08/09/28/29/38/9
BA32.25-P-1003-04M	Suspension strut to body	Nm	33

SUSPENSION STRUTS

Number	Designation		Model 207 without code 483	Model 207 with code 483
BA32.25-P-1003-04M	Suspension strut to body	Nm	33	33

FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number	Designation		Model 212	Model 218
BA62.30-P-1006-02G	Nut, strut to suspension strut tower	Nm	30	30

FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number	Designation		Model 207.3	Model 207.4
BA62.30-P-1007-02G	Nut, strut to firewall	Nm	35	35

WINDSHIELD WIPER

Number	Designation		Model 204	Model 207	Model 212	Model 218
BA82.30-P-1002-01M	Bolt, wiper system to bracket	Nm	11	11	11	11
BA82.30-P-1003-01M	Nut, wiper system to body	Nm	20	22	22	22
