Remove/install steering knuckle - AR33.25-P-0400EWX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218 with CODE M005 (4MATIC)

MODIFICATION NOTES

22.05.2017 Wheel alignment check added. AS 17

Shown on model 204 with code M005 (4MATIC), except CODE 460 (Canada version) and except CODE 494 (USA version)

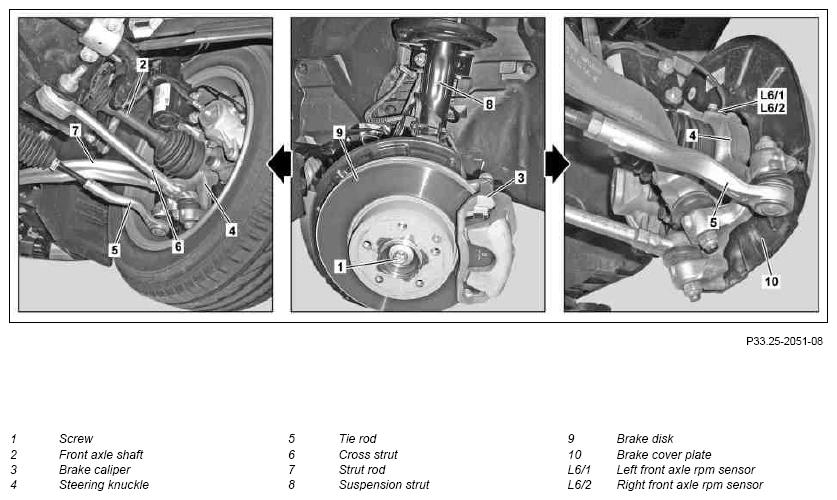

Fig 1: Steering Knuckle Remove/Install Components - Shown On Model 204 With Code M005
G09976232Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 with CODE M005 (4MATIC), with CODE 460 (Canada version) and with CODE 494 (USA version)

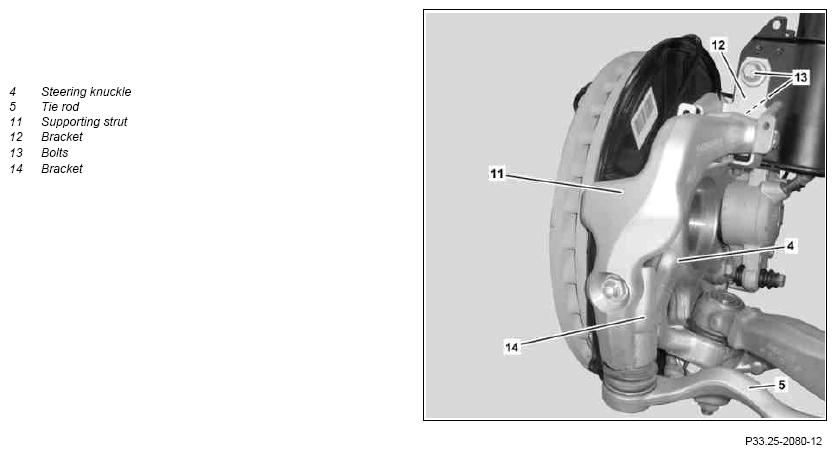

Fig 2: Steering Knuckle Remove/Install Components - Shown On Model 212.0 With Code M005
G09976233NOTESIMPORTANTREMOVINGINSTALLINGREFER TO MAINTENANCETORQUE SPECIFICATIONNOTESNOTESSPECIAL TOOLTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLNOTESTORQUE SPECIFICATIONINSPECTCourtesy of MERCEDES-BENZ USA
Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Detach front complete wheel
REFER TO MAINTENANCE     AP40.10-P-4050EW
2 Remove screw/bolt (1) from front axle shaft (2)
Notes on threaded connections fastened using a tightening angle-based tightening process
  AH00.00-P-0020-01A
TORQUE SPECIFICATION Screw/bolt, front axle shaft to wheel hub *BA33.30-P-1001-02H
3 Remove brake caliper and fasten with connected lines to suspension strut (8) Model 212.074/075/076/077/274/275/276/277 with code B07 (Ceramic brake system) with code M005 (4MATIC)
Model 218.374/375/376/974/975/976 with code B07 (Ceramic brake system) with code M005 (4MATIC)
AR42.10-P-0070QQ
    Model 212, 218 with code M005 (4MATIC) except code B07 (Ceramic brake system) with split floating caliper brake

AR42.10-P-0070EWC
    Model 212 with code M005 (4MATIC) except code B07 (Ceramic brake system) with non-split 1-piston floating caliper brake AR42.10-P-0070EWB
    Model 212, 218 with code M005 (4MATIC) except code B07 (Ceramic brake system) with 4-piston fixed-caliper brake
NOTES
The brake hose must not be pulled or kinked.
The brake hose can otherwise be damaged.
AR42.10-P-0070EWA
4 Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) from steering knuckle (4) and unclip electric line from holder   AR42.30-P-0712EW
5 Remove strut (11) Model 212, 218 as of model year 2015 with code 460 (Canada version) with code M005 (4MATIC)
Model 212, 218 as of model year 2015 with code 494 (US version) with code M005 (4MATIC)
Model 212.0 as of model year 2015 with code 460 (Canada version) with code M005 (4MATIC)
Model 212.0 as of model year 2015 with code 494 (US version) with code M005 (4MATIC)
AR33.25-P-0001EWX
6 Detach tie rod (5) from steering knuckle (4) MODEL 212, 218 with CODE M005 (4MATIC) AR46.40-P-0200-02CW
Notes on threaded connections fastened using a tightening angle-based tightening process AH00.00-P-0020-01A
NOTES
Turn in steering onto lock and check for correct seating of SPECIAL TOOL puller on the tie rod (5). Otherwise, the steel bearing race of the tie rod (5) will be damaged and this will then destroy the tie rod (5).
    TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1001-01N
    SPECIAL TOOL Thrust piece Figure
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Press Figure
7 Remove bracket (14) Model 212.0 as of model year 2015 with code 460 (Canada version) with code M005 (4MATIC)
Model 212.0 as of model year 2015 with code 494 (US version) with code M005 (4MATIC)
Installation: Tighten nut for bracket (14) only after installation of the strut (11).

8 Remove cross strut (6) from steering knuckle (4) AR33.15-P-0161EW
9 Detach strut rod (7) from steering knuckle (4)   AR33.15-P-0160EWX
10 Tilt steering knuckle (4) to one side, while doing so, pull front axle shaft (2) out of wheel hub NOTES
Carefully tilt steering knuckle (4).
The seal bellows of the front axle shaft (2) will otherwise be damaged.

11 Remove suspension strut (8) from steering knuckle (4) and take out steering knuckle (4) MODEL 212, 218
with CODE M005 (4MATIC)
without CODE 489 (AIRMATIC)
AR32.25-P-1017EW
    MODEL 212, 218
with CODE 489 (AIRMATIC)
with CODE M005 (4MATIC)
AR32.25-P-1017EWA
12 Remove brake caliper support (3), brake disk (9) and brake cover plate (10) from steering knuckle (4) When replacing steering knuckle (4)
    Model 212.074/075/076/077/274/275/276/277 with code B07 (Ceramic brake system) with code M005 (4MATIC)
Model 218.374/375/376/974/975/976 with code B07 (Ceramic brake system) with code M005 (4MATIC)
AR42.10-P-0220QQ
Model 212 with code M005 (4MATIC) except code B07 (Ceramic brake system)
Model 218 with code M005 (4MATIC) except code B07 (Ceramic brake system)
AR42.10-P-0220EWE
TORQUE SPECIFICATION Model 212 with code M005 (4MATIC)
Model 218 with code M005 (4MATIC) Bolt, brake cover plate to steering knuckle or wheel carrier
*BA42.10-P-1003-06H
INSPECT Check
13 Check seal bellows and ball joint of tie rod (5) for wear and damage If damage is present

Replace tie rod (5).
AR46.40-P-0200EW
14 Check seal bellows and ball joint of strut rod (7) for wear and damage If damage is present

Replace strut rod (7).
AR33.15-P-0160EWX
15 Check seal bellows and ball joint of cross strut (6) for damage If damage is present

Replace cross strut (6).
AR33.15-P-0161EW
16 Check front axle shaft (2) for damage If damage is present

Replace front axle shaft (2).
AR33.30-P-0620CWX
17 Install in the reverse order
18 Perform wheel alignment check AR40.20-P-0200EW
FRONT AXLE SHAFT

Number Designation MODEL 212 MODEL 218
BA33.30-P-1001-02H Bolt, front axle shaft to wheel hub Stage 1 Nm 160 160
Loosen stage 2 Loosen Loosen
Stage 3 Nm 120 120
Stage 4 ∠° 90 90
BRAKE DISKS, BRAKE COVER PLATE

Number Designation MODEL 212 MODEL 218
BA42.10-P-1003-06H Bolt brake cover plate to steering knuckle or wheel carrier M6 Nm 12 12
M8 Nm 18 18
TIE ROD

Number Designation MODEL 212 MODEL 218
BA46.40-P-1001-01N Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50 50
Stage 2 ∠° 90 90
Fig 3: Identifying Puller (221 589 05 33 00)
G09976234Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (221 589 00 33 00)
G09976235Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Thrust Piece (171 589 00 34 00)
G09976236Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Press (163 589 03 43 00)
G09976237Courtesy of MERCEDES-BENZ USA
