Remove/install cross strut on front axle - AR33.15-P-0161EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

Shown on vehicle except CODE 460 (Canada version) and except CODE 494 (USA version)

Fig 1: Front Axle Cross Strut Remove/Install Components - Shown On Vehicle Except Code 460

Courtesy of MERCEDES-BENZ USA

With CODE M005 (4MATIC)

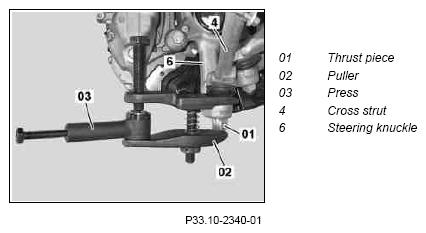

Fig 2: Front Axle Cross Strut Remove/Install Components - Shown On Vehicle With Code M005

Courtesy of MERCEDES-BENZ USA

Except CODE M005 (4MATIC)

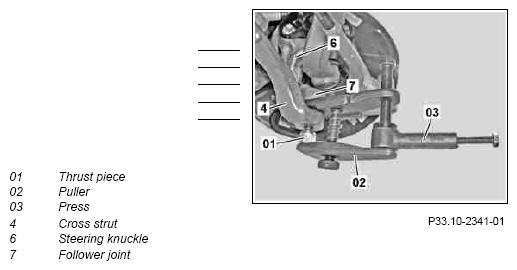

Fig 3: Front Axle Cross Strut Remove/Install Components - Shown On Vehicle Except Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Detach front wheel and tire assembly
	Remove/install wheels, rotate if necessary		AP40.10-P-4050EW
2.1	Remove center and rear engine compartment paneling	Vehicles with gasoline engine
		Remove/install bottom engine compartment paneling	AR61.20-P-1105EW
2.2	Remove center and rear bottom part of noise encapsulation	Vehicles with diesel engine
		Remove/install bottom parts of soundproofing	AR94.30-P-5300EW
3	Detach bracket (8) of front level sensor's link rod from cross strut (4)	Do not unclip link rod from bracket (8). The link rod will be damaged otherwise. Except CODE 489 (AIRmatic (air suspension with continuous adjustment damping)) Only detach left bracket (8). with CODE 489 (AIRmatic (air suspension with continuous adjustment damping)) Detach left and right bracket (8). Except CODE M005 (4MATIC) Installation: Replace cable tie.
4	Unscrew nut (1)	When loosening the nut (1) the bolt (2) must not be twisted. It is essential to counterhold bolt (2). Otherwise the lock tabs for caster adjustment in the elastomer bearing (4a) will be sheared off when the repair kit is fitted. Screw nut (1) of screw/bolt (2) all the way on until it makes contact, but do not yet tighten in order to allow the elastomer bearing (4a) to turn when the vehicle is rocked to settle suspension. Only tighten nut (1) in the ready-to-drive condition.
		Model 218	*BA33.20-P-1005-01Q
		Model 218	*BA33.20-P-1006-01Q
		MODEL 212	*BA33.20-P-1005-01O
		MODEL 212	*BA33.20-P-1006-01O
5.1	Unscrew nut (5) from cross strut (4) on upper ball joint (7) and detach cross strut (4) with thrust piece (01), puller (02) and press (03) from upper ball joint (7)	Vehicles without code M005 (4MATIC) The grease in the radial groove must not be removed. There must not be any grease on the taper and thread.
		Model 218	*BA33.20-P-1007-01Q
		MODEL 212	*BA33.20-P-1007-01O
		Thrust piece	Figure
		Puller	Figure
		Press	Figure
5.2	Unscrew nut (5) of cross strut (4) from steering knuckle (6) and pry off cross strut (4) using thrust piece (01), puller (02) and press (03) from steering knuckle (6)	Vehicles with code M005 (4M ATIC) The grease in the radial groove must not be removed. There must not be any grease on the taper and thread.
		Model 218	*BA33.20-P-1007-01Q
		MODEL 212	*BA33.20-P-1007-01O
		Thrust piece	Figure
		Puller	Figure
		Press	Figure
6	Pull bolt (2) out of front axle carrier (3) and remove cross strut (4)
	Check
7	Check elastomer bearing (4a) in cross strut (4) for signs of damage	Replace cross strut (4) if necessary.
8	Check upper ball joint (7) on steering knuckle (6)	Vehicles without code M005 (4MATIC) If necessary ↓ Replace upper ball joint (7) of steering knuckle bearing.
			AR33.20-P-0427EW
9	Check rubber boot and ball joint of cross strut (4) for signs of damage	Vehicles with code M005 (4M ATIC) Replace cross strut (4) if necessary.
10	Install in the reverse order
11	Perform wheel alignment check	Perform wheel alignment check	AR40.20-P-0200EW

WHEEL CONTROL, HUB

Number	Designation			MODEL 212 except 4MATIC	MODEL 212 with 4MATIC
BA33.20-P-1005-01O	Bolt to locknut for cross strut on integral carrier	Stage 1	Nm	120	120
BA33.20-P-1005-01O	Bolt to locknut for cross strut on integral carrier	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation			MODEL 218 except 4MATIC	MODEL 218 with 4MATIC
BA33.20-P-1005-01Q	Self-locking nut, cross strut to front axle carrier	Stage 1	Nm	120	120
BA33.20-P-1005-01Q	Self-locking nut, cross strut to front axle carrier	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 212 except 4MATIC	MODEL 212 with 4MATIC
BA33.20-P-1006-01O	Locknut (repair kit), cross strut to integral carrier	M14X120X11.9	Stage 1	Nm	100	100
BA33.20-P-1006-01O	Locknut (repair kit), cross strut to integral carrier	M14X120X11.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 218 except 4MATIC	MODEL 218 with 4MATIC
BA33.20-P-1006-01Q	Self-locking nut (repair kit), cross strut to front axle carrier	Stage 1	M14X120X11.9	Nm	100	100
BA33.20-P-1006-01Q		Stage 2		∠°	180	180

WHEEL CONTROL, HUB

Number	Designation			MODEL 212 except 4MATIC	MODEL 212 with 4MATIC
BA33.20-P-1007-01O	Locknut, cross strut to steering knuckle/upper ball joint	Stage 1	Nm	50	50
BA33.20-P-1007-01O	Locknut, cross strut to steering knuckle/upper ball joint	Stage 2	∠°	90	90

WHEEL CONTROL, HUB

Number	Designation			MODEL 218 except 4MATIC	MODEL 218 with 4MATIC
BA33.20-P-1007-01Q	Self-locking nut, cross strut to steering knuckle/upper ball joint	Stage 1	Nm	50	50
BA33.20-P-1007-01Q		Stage 2	∠°	90	90

Fig 4: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Thrust Piece (171 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
