Remove/install supporting strut - AR33.25-P-0001EWX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 as of model year 2015 with CODE 460 (Canada version) with CODE M005 (4MATIC)
MODEL 212.0 as of model year 2015 with CODE 494 (US version) with CODE M005 (4MATIC)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove left or right wheel and tire assembly | ||
| AP40.10-P-4050EW | |||

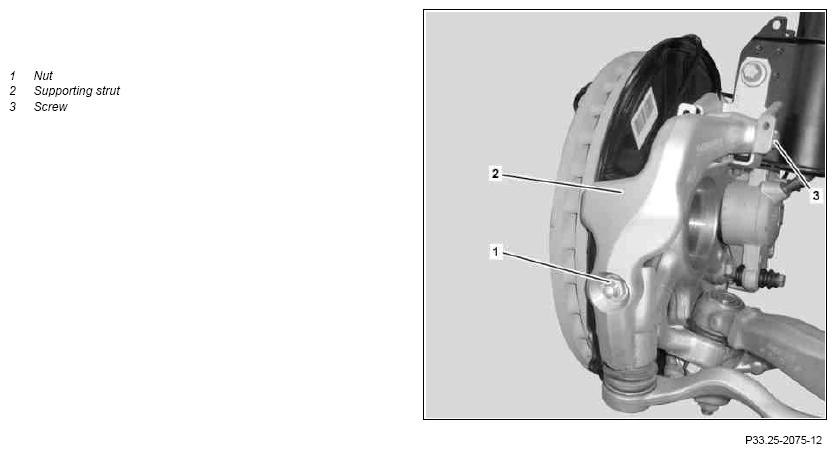

| 2 | Unscrew nut (1) | *BA33.25-P-1001-01C | |
| 3 | Unscrew bolt (3) | *BA33.25-P-1002-01C | |
| 4 | Remove supporting strut (2) | ||
| 5 | Install in the reverse order |
SUPPORTING STRUT
| Number | Designation | MODEL 212.0 with CODE 460/494 | ||
|---|---|---|---|---|
| BA33.25-P-1001-01C | Nut, bracket for tie rod to inside strut | M10x1.5 | Nm | 60 |
SUPPORTING STRUT
| Number | Designation | MODEL 212.0 with CODE 460/494 | ||
|---|---|---|---|---|
| BA33.25-P-1002-01C | Bolt, bracket for suspension strut to supporting strut at top | M12x1.5 | Nm | 110 |
