Remove/install steering knuckle - AR33.25-P-0400EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218 without CODE M005 (4MATIC)

Shown on vehicle except CODE 460 (Canada version) and except CODE 494 (USA version)

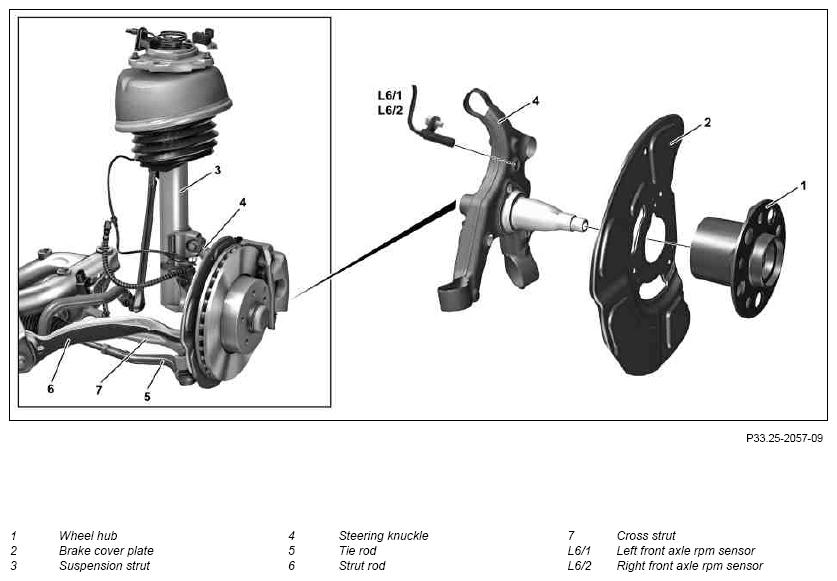

Fig 1: Steering Knuckle Remove/Install Components - Shown On Vehicle Except Code 460
G09976226Courtesy of MERCEDES-BENZ USA

Shown on vehicle with CODE 460 (Canada version) and with CODE 494 (USA version)

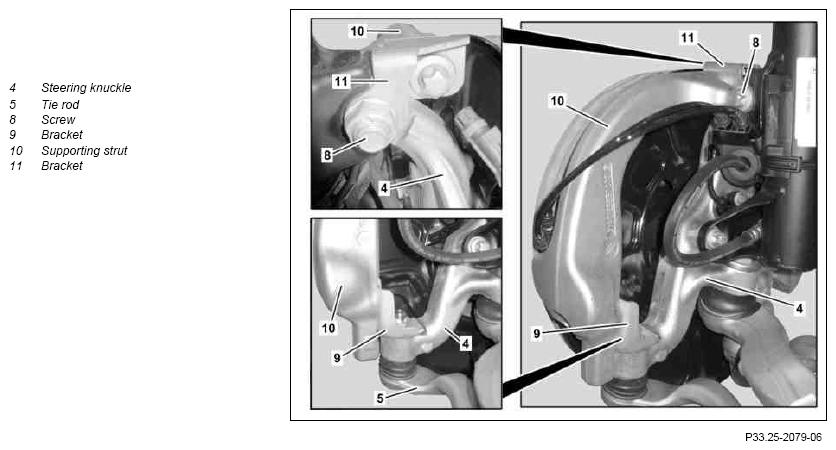

Fig 2: Steering Knuckle Remove/Install Components - Shown On Vehicle With Code 460
G09976227DANGERNOTESIMPORTANTREMOVINGINSTALLINGREFER TO MAINTENANCETORQUE SPECIFICATIONNOTESSPECIAL TOOLINSTALLATION IMPORTANTIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLREFER TO COMPONENT MODIFICATIONSSHORT-CIRCUITCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Detach front wheel and tire assembly
REFER TO MAINTENANCE     AP40.10-P-4050EW
2 Remove wheel hub (1)   AR33.20-P-0310SX
3 Remove brake cover plate (2) TORQUE SPECIFICATION Self-locking bolt, cover panel to brake caliper support
4 Remove suspension strut (3) from steering knuckle (4) with CODE 489 (AIRmatic (air suspension with continuous adjustment damping)) AR32.25-P-1017EWA
    Except code 489 (AIRmatic (air suspension with continuous adjustment damping)) AR32.25-P-1017EW
5 Detach left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) from steering knuckle (4)   AR42.30-P-0712EW
6 Detach tie rod (5) from steering knuckle (4)   AR46.40-P-0200-02CW
    NOTES
Turn in steering onto lock and check for correct seating of SPECIAL TOOL puller on the tie rod (5). If seating is incorrect, damage to the steel contact ring of the tie rod (5) occurs and this results in destruction of the tie rod (5).
INSTALLATION IMPORTANT Only tighten the nuts of the bracket (9) after installing the supporting strut (10).
IMPORTANT MODEL 212.0
with CODE 460 (Canada version)
with CODE 494 (US version)
without CODE M005 (4MATIC)
Remove bracket (9).

    TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1001-01N
    SPECIAL TOOL Thrust piece Figure
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Press Figure
7 Detach upper ball joint from steering knuckle (4)   AR33.20-P-0427EW
REFER TO COMPONENT MODIFICATIONS Modified cone for upper ball joint to steering knuckle MODEL 212.### ## up to 001281 without CODE M005 (4MATIC) BT33.25-P-0400-01EW
8 Remove torque strut (6) from steering knuckle (4)   AR33.15-P-0160EW
9 Remove steering knuckle (4)
SHORT-CIRCUIT Check
10 Check elastomer bearing of cross strut (7) If damaged, see:

Replace cross strut (7).

      AR33.15-P-0161EW
11 Check follower joint If damaged, see:

Replace upper ball joint.

      AR33.20-P-0427EW
12 Check rubber boot and ball joint of torque strut (6) for signs of damage If damaged, see:

radius rod (6) as indicated.

      AR33.15-P-0160EW
13 Install in the reverse order
TIE ROD

Number Designation MODEL 212 MODEL 218
BA46.40-P-1001-01N Self-locking nut, tie rod to steering knuckle Stage 1 Nm 50 50
Stage 2 ∠° 90 90
Fig 3: Identifying Puller (221 589 05 33 00)
G09976228Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (221 589 00 33 00)
G09976229Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Thrust Piece (171 589 00 34 00)
G09976230Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Press (163 589 03 43 00)
G09976231Courtesy of MERCEDES-BENZ USA
