Remove/install torque strut at front axle - AR33.15-P-0160EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218 without CODE M005 (4MATIC)

Shown on vehicle except CODE 460 (Canada version) and except CODE 494 (USA version)

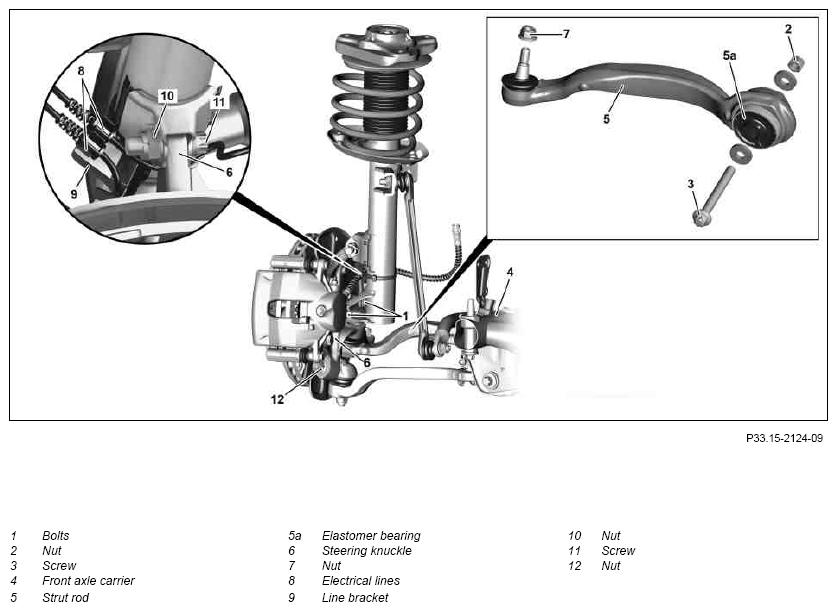

Fig 1: Front Axle Torque Strut Remove/Install Components - Shown On Vehicle Except Code 460 (1 Of 2)
G09976179Courtesy of MERCEDES-BENZ USA

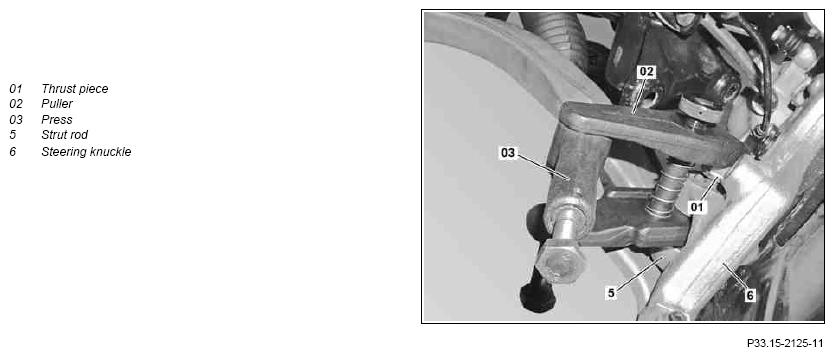

Fig 2: Front Axle Torque Strut Remove/Install Components - Shown On Vehicle Except Code 460 (2 Of 2)
G09976180DANGERNOTESIMPORTANTREMOVINGINSTALLINGREFER TO MAINTENANCENOTESNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONNOTESTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSPECTSPECIAL TOOLCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Secure vehicle on vehicle lift   AR00.60-P-0100EWS
2 Remove left or right front wheel
REFER TO MAINTENANCE     AP40.10-P-4050EW
3.1 Remove center and rear engine compartment paneling MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278
without CODE M005 (4MATIC)
MODEL 218 with ENGINE 157, 274, 276, 278
without CODE M005 (4MATIC)
      AR61.20-P-1105EW
3.2 Remove center and rear bottom part of noise encapsulation MODEL 212 with ENGINE 642, 651
without CODE M005 (4MATIC)
MODEL 218 with ENGINE 642, 651
without CODE M005 (4MATIC)
      AR94.30-P-5300EW
4 Unclip bracket of linkage for left front level sensor from left cross strut MODEL 212
with CODE 488 (Steel/air suspension)
without CODE M005 (4MATIC)
MODEL 212
with CODE 489 (AIRMATIC)
without CODE M005 (4MATIC)
MODEL 212
with CODE 615 (Bi-xenon headlamps with active light function)
without CODE M005 (4MATIC)
MODEL 212
with CODE 621 (Intelligent Light System (left-hand traffic))
without CODE M005 (4MATIC)
MODEL 212
with CODE 622 (Intelligent Light System)
without CODE M005 (4MATIC)
MODEL 212
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
without CODE M005 (4MATIC)
MODEL 212
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
without CODE M005 (4MATIC)
MODEL 212
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
without CODE M005 (4MATIC)
MODEL 218
without CODE M005 (4MATIC)
When removing the left strut rod (5).
NOTES
Do not unclip linkage of left front level sensor from bracket.
Otherwise, the linkage of the left front level sensor may be damaged.
5 Unclip bracket of linkage for left front level sensor from right cross strut MODEL 212, 218
with CODE 488 (Steel/air suspension)
without CODE M005 (4MATIC)
MODEL 212, 218
with CODE 489 (AIRMATIC)
without CODE M005 (4MATIC)
When removing the right strut rod (5).
NOTES
Do not unclip linkage of right front level sensor from bracket.
Otherwise, the linkage of the right front level sensor may be damaged.
6 Unhook electrical lines (8) from left or right line bracket (9)
7 Open cable tie of line bracket (9) and detach from damper INSTALLATION IMPORTANT Replace cable tie.
8 Remove bolts (1) from left or right steering knuckle (6) TORQUE SPECIFICATION Model 212, 218 except code M005 (4MATIC) *BA32.25-P-1002-04M
9 Prop up left or right front-axle half Transmission jack
10 Remove left or right supporting strut MODEL 212.0
as of model year 2015
with CODE 460 (Canada version)
without CODE M005 (4MATIC)
MODEL 212.0
as of model year 2015
with CODE 494 (US version)
without CODE M005 (4MATIC)
      AR33.25-P-0001EW
11 Unscrew nut (10) from left or right steering knuckle (6) and remove bolt (11) INSTALLATION IMPORTANT Replace bolt (11).
    TORQUE SPECIFICATION MODEL 212, 218 *BA32.25-P-1001-04M
12 Fold down steering knuckle (6) and place line bracket (9) to one side NOTES
Do not pull on brake hose when folding down. Otherwise the brake hose will be damaged.
13 Unscrew nut (7) TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1004-01Q
    TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1004-01O
14 Detach strut rod (5) with thrust piece (01), puller (02) and press (03) from steering knuckle (6) INSTALLATION IMPORTANT The grease in the radial groove must not be removed.
There must be no grease on the cone and on the thread.
    SPECIAL TOOL Thrust piece Figure
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Press Figure
15 Secure steering knuckle (6), using previously-removed bolt (11), onto suspension strut
16 Unscrew nut (12) from steering knuckle (6) TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1008-01O
    TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1008-01Q
17 Press off upper ball joint from steering knuckle (6)   AR33.20-P-0427EW
18 Unscrew nut from cross strut mounting on front axle carrier (4) and remove bolt from front axle carrier (4) NOTES
Always counterhold bolt when releasing the nut to ensure that the bolt does not turn too. Otherwise, on cross struts with an installed repair kit, the lock tabs for the camber adjustment in the elastomer bearing may be sheared off.
INSTALLATION IMPORTANT Tighten nut of bolt far enough so that the elastomer bearing can still turn when rocking vehicle to settle suspension. Do not tighten nut until in the ready to drive condition.
    TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1005-01Q
    TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1006-01Q
    TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1005-01O
    TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1006-01O
19 Remove cross strut
20 Unscrew nut (2) and pull bolt (3) out of front axle carrier (4) NOTES
Always counterhold bolt (3) when releasing the nut (2) so that the bolt (3) is unable to turn.
Otherwise, on strut rods (5) with an installed repair kit, the lock tabs for the caster adjustment in the elastomer bearing (5a) may be sheared off.
INSTALLATION IMPORTANT Tighten nut (2) of bolt (3) far enough so that the elastomer bearing (5a) can still turn when rocking vehicle to settle suspension. Tighten nut (2) only after vehicle in ready-to-drive condition.
    TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1002-01O
    TORQUE SPECIFICATION MODEL 212 except CODE M005 (4MATIC) *BA33.20-P-1003-01O
    TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1002-01Q
    TORQUE SPECIFICATION MODEL 218 except CODE M005 (4MATIC) *BA33.20-P-1003-01Q
21 Remove strut rod (5)
INSPECT Check
22 Check dust boot and ball joint of strut rod (5) for damage If damage is present:
↓
Replace strut rod (5).
23 Check elastomer bearing (5a) of strut rod (5) for damage If damage is present:
↓
Replace elastomer bearing (5a) of strut rod (5).
      AR33.15-P-0160-02EW
    SPECIAL TOOL Extraction and installation tool Figure
24 Install in the reverse order
25 Perform wheel alignment check   AR40.20-P-0200EW
SUSPENSION STRUTS

Number Designation MODEL 212.00/02/03/04/05/0 61/065/072/073/095/0 98/13/14/15/162/165/19/20/22/23/24/25/26 1/265/272/273/298 except CODE 489, MODEL 212.074/075/077/274/275/277 except CODE 488/489 MODEL 212.00/02/03/04/05/0 61/065/072/073/095/098/13/14/15/162/16 5/19/20/22/23/24/25/261/265/272/273/298 with CODE 489, MODEL 212.074/075/077/274/275/277 with CODE 489, except CODE 488
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14X45 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
SUSPENSION STRUTS

Number Designation MODEL 212.074/075/077/274/275/277 with CODE 488, except CODE 489 MODEL 218.30/32/33/35/361/362/365/373/90/92/9 3/95/961/965/973 except CODE 489, MODEL 218.374/375/974/975 except CODE 488/489
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14X45 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
SUSPENSION STRUTS

Number Designation MODEL 218.30/32/33/35/361/362/365/373/90/92/93/95/961/965/973 with CODE 489, MODEL 218.374/375/974/975 with CODE 489, except CODE 488 MODEL 218.374/375/974/975 with CODE 488
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14X45 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
SUSPENSION STRUTS

Number Designation MODEL 212.00/02/03/04/05/0 61/065/072/073/095/0 98/13/14/15/162/165/19/20/22/23/24/25/26 1/265/272/273/298 except CODE 489, MODEL 212.074/075/077/274/275/277 except CODE 488/489 MODEL 212.00/02/03/04/05/0 61/065/072/073/095/098/13/14/15/162/16 5/19/20/22/23/24/25/261/265/272/273/298 with CODE 489, MODEL 212.074/075/077/274/275/277 with CODE 489, except CODE 488
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm 70 70
Stage 2 loosen loosen
Stage 3 Nm 100 100
SUSPENSION STRUTS

Number Designation MODEL 212.074/075/077/274/275/277 with CODE 488, except CODE 489 MODEL 218.30/32/33/35/361/362/365/373/90/92/9 3/95/961/965/973 except CODE 489, MODEL 218.374/375/974/975 except CODE 488/489
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm 70 70
Stage 2 Loosen Loosen
Stage 3 Nm 100 100
SUSPENSION STRUTS

Number Designation MODEL 218.30/32/33/35/361/362/365/373/90/92/93/95/961/965/973 with CODE 489, MODEL 218.374/375/974/975 with CODE 489, except CODE 488 MODEL 218.374/375/974/975 with CODE 488
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm 70 70
Stage 2 Loosen Loosen
Stage 3 Nm 100 100
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1002-01O Locknut (repair kit), strut rod to integral carrier Stage 1 Nm 120
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1002-01Q Self-locking nut, torque strut to front axle carrier Stage 1 Nm 120
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1003-01O Locknut (repair kit), strut rod to integral carrier M14X1.5X11.9 Stage 1 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1003-01Q Self-locking nut (repair kit), strut rod to front axle carrier Stage 1 M14X120X11.9 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1004-01O Locknut, strut rod to steering knuckle Stage 1 Nm 50
Stage 2 ∠° 90
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1004-01Q Self-locking nut, strut rod to steering knuckle Stage 1 Nm 50
Stage 2 ∠° 90
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1005-01O Bolt to locknut for cross strut on integral carrier Stage 1 Nm 120
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1005-01Q Self-locking nut, cross strut to front axle carrier Stage 1 Nm 120
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1006-01O Locknut (repair kit), cross strut to integral carrier M14X120X11.9 Stage 1 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1006-01Q Self-locking nut (repair kit), cross strut to front axle carrier Stage 1 M14X120X11.9 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1008-01O Nut, upper ball joint to steering knuckle Stage 1 Nm 70
Stage 2 ∠° 50
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC
BA33.20-P-1008-01Q Nut, upper ball joint to steering knuckle Stage 1 Nm 70
Stage 2 ∠° 50
Fig 3: Identifying Puller (221 589 00 33 00)
G09976181Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Thrust Piece (171 589 00 34 00)
G09976182Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Press (163 589 03 43 00)
G09976183Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Extraction Tool (212 589 00 43 00)
G09976184Courtesy of MERCEDES-BENZ USA
