Remove/install slide rail in timing case cover - AR05.10-P-8484SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

MODIFICATION NOTES

9.7.13 Engine oil Engine 642.826/830/832/834/836/838/850/852/853/85 4/856/858/861/862/868 except code 474 (Particulate filter) BF18.00-P-1001-01A
9.7.13 Engine oil Engine 642.930 ## up to 458147 except code 474 (Particulate filter) BF18.00-P-1001-01A
9.7.13 Engine oil Engine 642.930 ## as of 458148 except code 474 (Particulate filter) BF18.00-P-1001-01A

Shown on engine 642.9

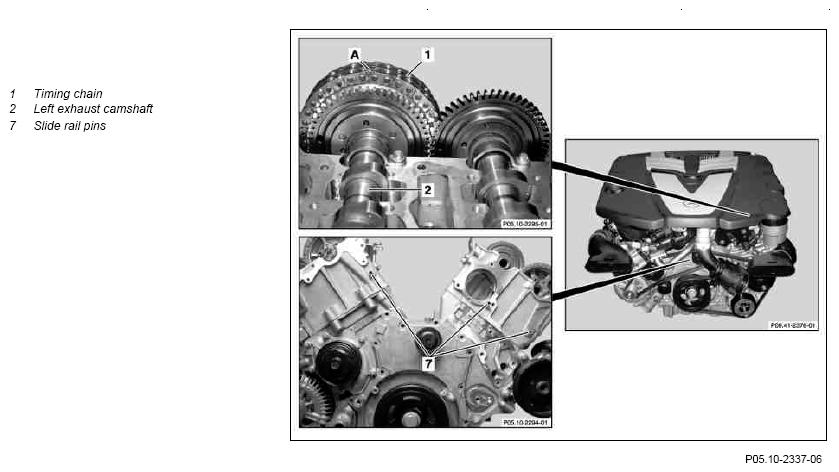

Fig 1: Timing Case Cover Slide Rail Remove/Install Components - Shown On Engine 642.9 (1 Of 2)
G09974307Courtesy of MERCEDES-BENZ USA

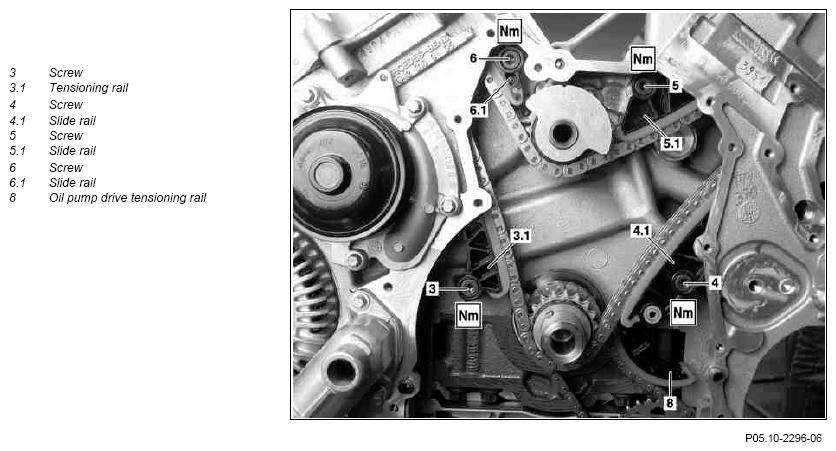

Fig 2: Timing Case Cover Slide Rail Remove/Install Components - Shown On Engine 642.9 (2 Of 2)
G09974308Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove mixing chamber ENGINE 642 in MODEL 222 AR09.20-P-1320LFD
    ENGINE 642 in MODEL 207, 212, 218 AR09.20-P-1320OGE
    ENGINE 642 in MODEL 221 AR09.20-P-1320SXI
2 Remove left cylinder head cover ENGINE 642 in MODEL 222 AR01.20-P-5014LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR01.20-P-5013SXI
3 Remove oil filter housing ENGINE 642 in MODEL 222 AR01.20-P-5014LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR18.20-P-3471SXI
4 Remove high-pressure pump ENGINE 642 in MODEL 222 AR07.02-P-1020LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR07.02-P-1020SXI
5 Remove poly-V belt ENGINE 642 in MODEL 222 AR13.20-P-0001LFD
6 Set piston on the cylinder 1 to ignition top dead center (TDC) IMPORTANT Rotate engine at crankshaft in the running direction. The ignition TDC marking of the belt pulley must be flush with the stay on timing case cover. AR05.10-P-6858SXI
7 Remove lower engine compartment paneling ENGINE 642 in MODEL 222 AR61.20-P-1105LF
    ENGINE 642 in MODEL 221 without CODE Z07 (Top protection) AR61.20-P-1105SX
    ENGINE 642 in MODEL 207, 212, 218 AR94.30-P-5300EW
8 Drain/collect engine oil
REFER TO MAINTENANCE   ENGINE 642.930 ## up to 458147 in MODEL 221 AP18.00-P-0101SXI
REFER TO MAINTENANCE   ENGINE 642 in MODEL 207, 212, 218
ENGINE 642.8/932, 642.930 ## as of 458148 in MODEL 221
ENGINE 642.861 in MODEL 222		 AP18.00-P-0101EWO
9 Mount retaining lock   AR03.30-P-5000SXI
10 Detach belt pulley ENGINE 642 in MODEL 222 AR03.30-P-1600LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR03.30-P-1600SXI
11 Remove retaining lock SPECIAL TOOL Retaining lock Fig 4
12 Remove oil pan ENGINE 642 in MODEL 207, 212, 218.39/99, 221, 222
ENGINE 642 in MODEL 222 AR01.45-P-7500LFD
    ENGINE 642 in MODEL 207
ENGINE 642 in MODEL 212 (except 212.08/09/28/29)
ENGINE 642 in MODEL 218 (except 218.39)		 AR01.45-P-7500CO
    ENGINE 642 in MODEL 212.08/09/28/29, 218.39 AR01.45-P-7500CWY
    ENGINE 642 in MODEL 221.02/12 AR01.45-P-7500SXI
    ENGINE 642 in MODEL 221.08/18 AR01.45-P-7500SYZ
13 Remove timing case cover ENGINE 642 in MODEL 222 AR01.40-P-8000LFD
    ENGINE 642 in MODEL 207, 212, 218, 221 AR01.40-P-8000SXI
14 Remove chain tensioner   AR05.10-P-7800SXI
15 Pull out slide rail bolts (7) at cylinder heads   AR01.30-P-5800-04TI
    IMPORTANT In the case of a screw/bolt on the right next to the oil filter housing in the cylinder crankcase, this should be removed analog to the slide rail bolt (7) in the cylinder head.
    SPECIAL TOOL Impact extractor Figure
    SPECIAL TOOL Threaded bolt Fig 6
    SPECIAL TOOL Puller Fig 3
16 Remove screw/bolt (3) of tensioning rail (3.1) TORQUE SPECIFICATION Bearing pin for tensioning rail *BA05.10-P-1003-01L
17 Pull out tensioning rail (3.1) from the bottom
18 Remove left exhaust camshaft ENGINE 642 in MODEL 222 AR05.20-P-6992LFD
    ENGINE 642 in MODEL 207, 212, 218, 221
IMPORTANT Mark timing chain (1) and sprocket for easier assembly in area (A) in color.		 AR05.20-P-6992SXI
    SPECIAL TOOL Retaining pins Fig 5
    SPECIAL TOOL Retaining lock Fig 4
19 Allow timing chain (1) to sag down into the timing case
20 Remove screw/bolt (4) of slide rail (4.1) TORQUE SPECIFICATION Bearing pin for slide rail *BA05.10-P-1002-01L
21 Push tensioning rail of oil pump drive (8) upwards against spring force INSTALLATION IMPORTANT Push the tensioning rail of the oil pump drive (8) fully against the spring force prior to installation and insert from the bottom in the timing case.
22 Pull out slide rail (4.1) from the bottom
23 Unscrew screw/bolt (5) from slide rail (5.1) TORQUE SPECIFICATION Bearing pin for slide rail *BA05.10-P-1002-01L
24 Pull out slide rail (5.1) downwards
25 Remove screw/bolt (6) from slide rail (6.1) TORQUE SPECIFICATION Bearing pin for slide rail *BA05.10-P-1002-01L
26 Pull out slide rail (6.1) from the bottom
27 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
28 Check and correct oil level ENGINE 642 in MODEL 222 AR18.00-P-3035-01LFD
    ENGINE 642 in MODEL 207, 212, 218, 221
NOTES Vehicle must be horizontal and standing on its wheels.
This prevents measurement errors.
IMPORTANT Check engine oil level about 5 min. after switching off warm engine.
FLUID SPECIFICATION ENGINE 642.836/838/850/852/853/862/868 without CODE 474 (Particulate trap)
ENGINE 642.930 ## as of 458148 without CODE 474 (Particulate trap)
ENGINE 642.930 ## up to 458147 without CODE 474 (Particulate trap)		 *BF18.00-P-1001-01A
    FLUID SPECIFICATION ENGINE 642.836/838/850/852/853/861/862 with CODE 474 (Particulate trap)
ENGINE 642.930 ## as of 458148 with CODE 474 (Particulate trap)
ENGINE 642.930 ## up to 458147 with CODE 474 (Particulate trap)		 *BF18.00-P-1001-01S
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
29 Check engine for leaktightness IMPORTANT Check for leaktightness around timing case cover after the engine test run.
TIMING CHAIN, CHAIN TENSIONER

Number Designation ENGINE 642
BA05.10-P-1002-01L Bearing pin for slide rail Nm 12
TIMING CHAIN, CHAIN TENSIONER

Number Designation ENGINE 642
BA05.10-P-1003-01L Bearing pin for tensioning rail Nm 12
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/836/838/850/852/853/854/856/858/861/862/867/868 without CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specification Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0
Specification Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/835/836/838/850/852/853/854/856/858/861/862/867/868 with CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
Fig 3: Identifying Puller (605 589 00 33 00)
G09974309Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Retaining Lock (112 589 03 40 00)
G09974310Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Retaining Pins (111 589 03 15 00)
G09974311Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Threaded Bolt (102 589 00 34 00)
G09974312Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Impact Extractor (116 589 20 33 00)
G09974313Courtesy of MERCEDES-BENZ USA
