Remove/install oil pan - AR01.45-P-7500CO

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 (except 204.08/28/98) with ENGINE 642

MODEL 207 with ENGINE 642

MODEL 212 (except 212.08/09/28/29) with ENGINE 642

MODEL 218 (except 218.39) with ENGINE 642

MODIFICATION NOTES

26.6.14 Oil drain plug on the oil pan   BA01.45-P-1006-01Q
24.11.14 Drain plug on the oil pan   BA01.45-P-1006-01Q

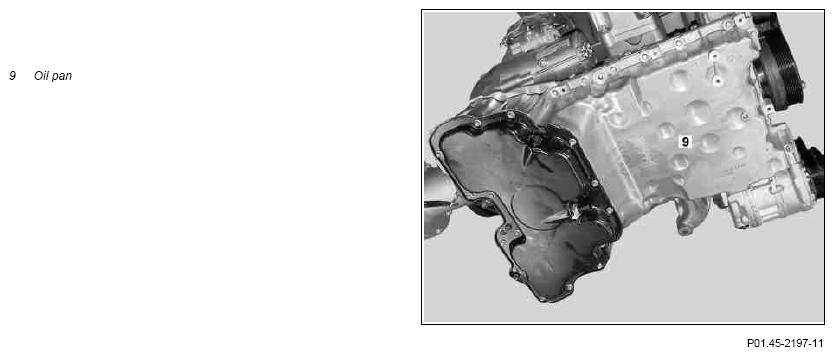

Fig 1: Oil Pan Remove/Install Components (1 Of 2)
G09973951Courtesy of MERCEDES-BENZ USA

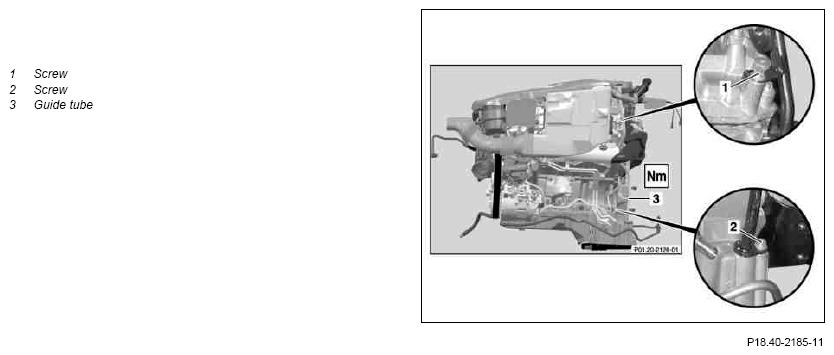

Fig 2: Oil Pan Remove/Install Components (2 Of 2)
G09973952Courtesy of MERCEDES-BENZ USA
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove engine cover
2 Remove screw/bolt (1) for guide tube (3) TORQUE SPECIFICATION Screw/bolt for oil dipstick guide tube *BA18.40-P-1001-01M
3 Mount engine hoist and raise engine MODEL 204, 207 AR33.10-P-0105CW
MODEL 212, 218 AR33.10-P-0105EW
4.1 Remove lower engine compartment paneling MODEL 204.9 AR61.20-P-1105CY
4.2 Remove bottom sections of soundproofing MODEL 204 (except 204.08/28/9) with
ENGINE 642
MODEL 207 with ENGINE 642
MODEL 212 (except 212.08/09/28/29) with
ENGINE 642
MODEL 218 (except 218.39) with ENGINE 642
    MODEL 204.0 (except 204.08/09), 204.2 (except 204.28) with ENGINE 642
MODEL 207 with ENGINE 642
MODEL 212 (except 212.08/09/28/29) with
ENGINE 642
MODEL 218 (except 218.39) with ENGINE 642		 AR94.30-P-5300EW
5 Remove steering gear cover panel MODEL 218 (except 218.39) with ENGINE 642
6.1 Remove transmission MODEL 204 (except 204.08/28/98) with
ENGINE 642 with TRANSMISSION 711.6
MODEL 212 (except 212.08/09/28/29) with
ENGINE 642 with TRANSMISSION 711.6
MODEL 204 (except 204.08/28/98) with
ENGINE 642 with TRANSMISSION 711.6		 AR26.10-P-0020SA
MODEL 212 (except 212.08/09/28/29) with
ENGINE 642 with TRANSMISSION 711.6		 AR26.10-P-0020EWG
6.2 Remove transmission with torque converter MODEL 204 (except 204.08/28/98) with ENGINE 642 with TRANSMISSION 722.9 (except 722.96)
MODEL 207 with ENGINE 642 with TRANSMISSION 722.9
MODEL 212 (except 212.08/09/28/29) with ENGINE 642 with TRANSMISSION 722.9
MODEL 218 (except 218.39) with ENGINE 642
with TRANSMISSION 722.9 (except 722.96)
MODEL 204 (except 204.08/28/98) with ENGINE 642 with TRANSMISSION 722.9 (except 722.96)
MODEL 207 with ENGINE 642 with TRANSMISSION 722.9		 AR27.10-P-0500CV
MODEL 212 (except 212.08/09/28/29) with ENGINE 642 with TRANSMISSION 722.9
MODEL 218 (except 218.39) with ENGINE 642 with TRANSMISSION 722.9 (except 722.96)		 AR27.10-P-0500EV
7 Remove end cover MODEL 204 AR01.40-P-8913CO
MODEL 207, 212, 218 AR01.40-P-8913SXI
8 Unscrew engine mount bolts TORQUE SPECIFICATION Bolt, front engine mount to front axle carrier *BA22.10-P-1002-03E
9 Drain/collect engine oil INSTALLATION IMPORTANT Replace sealant on drain screw.
TORQUE SPECIFICATION Drain screw to oil pan *BA01.45-P-1006-01Q
FLUID SPECIFICATION With code 474 (Particulate filter) *BF18.00-P-1001-01S
FLUID SPECIFICATION except code 474 (particulate filter) *BF18.00-P-1001-01A
10 Unscrew oil line bracket on oil pan (9) TORQUE SPECIFICATION Bracket to oil pan top section *BA01.45-P-1004-01Q
11 Unscrew screw/bolt (2) for guide tube (3) at oil pan (9) INSTALLATION IMPORTANT Replace sealing ring.
    Oil suction pipe to oil pan and cylinder head cover *BA01.45-P-1005-01Q
12 Remove screw/bolts from high pressure expansion hose bracket MODEL 204, 207, 212
TORQUE SPECIFICATION MODEL 204, 207 *BA46.30-P-1006-01R
TORQUE SPECIFICATION MODEL 212 *BA46.30-P-1013-01T
13 Remove oil pan bottom section MODEL 204 AR01.45-P-7555CO
MODEL 207, 212, 218 AR01.45-P-7555SXI
14 Disconnect oil level switch connector
15.1 Remove refrigerant compressor screw/bolt at oil pan top section MODEL 204, 207, 212
TORQUE SPECIFICATION Refrigerant compressor bolt *BA83.55-P-1005-01A
15.2 Unbolt refrigerant compressor from engine and place to the side Model 218 AR83.55-P-5300ELA
TORQUE SPECIFICATION Refrigerant compressor bolt *BA83.55-P-1005-01A
16 Remove insulation mat for oil pan top section MODEL 207, 212, 218
17 Remove screw/bolts on the oil pan top section MODEL 204 AR01.45-P-7500-06TI
MODEL 207, 212, 218 AR01.45-P-7500-06SXI
INSTALLATION IMPORTANT Pay attention to different screw/bolt lengths and screw/bolt diameters.
TORQUE SPECIFICATION Screw/bolt, oil pan to crankcase sealing at rear *BA01.45-P-1009-01Q
TORQUE SPECIFICATION Oil pan top section to crankcase at transmission end *BA01.45-P-1002-01Q
TORQUE SPECIFICATION Oil pan top section to bottom half of crankcase at front *BA01.45-P-1001-01Q
TORQUE SPECIFICATION Bolt, oil pan to crankcase *BA01.45-P-1007-01Q
TORQUE SPECIFICATION Bolt, oil pan to timing case cover *BA01.45-P-1008-01Q
18 Remove oil pan top section
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01OM
    IMPORTANT Warm sealing surfaces on oil pan (9) with hot air gun in order to achieve better removal of the sealant.
INSTALLATION IMPORTANT First insert guide tube (3) fully into oil pan (9) and then tighten.
Loctite 5970 sealant		 *BR00.45-Z-1013-01A
CLEAN Clean
19 Clean sealing surfaces   AR01.00-P-0050-01A
NOTES Do not use any sharp-edged tools or abrasive paper.
The sealing surfaces will be damaged otherwise.
Loctite 7200		 *BR00.45-Z-1038-04A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
20 Install in the reverse order
21 Read out and clear fault memory using STAR DIAGNOSIS
REFER TO MAINTENANCE     AD00.00-P-2000-04A
INSPECT Check
22 Check/correct engine oil level MODEL 204 AR18.00-P-3035-01TI
MODEL 207, 212, 218 AR18.00-P-3035-01SXI
IMPORTANT Check engine oil level with engine at operating temperature.
FLUID SPECIFICATION With code 474 (Particulate filter)		 *BF18.00-P-1001-01S
FLUID SPECIFICATION Except with code 474 (Particulate filter) *BF18.00-P-1001-01A
23 Check for leaktightness with engine running
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1001-01Q Oil pan top section to bottom half of crankcase at front M6 Nm 14
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1002-01Q Oil pan top section to crankcase at transmission end M8 Nm 20
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1004-01Q Bracket to oil pan top section M6 Nm 14
M8 Nm 20
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1005-01Q Oil suction pipe to oil pan and cylinder head cover M6 Nm 14
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1006-01Q Drain screw to oil pan Metal M12 Nm 30
M14 Nm 30
M24 Nm 45
Plastic Nm 4
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1007-01Q Bolt, oil pan to crankcase M6 Nm 14
M8 Nm 20
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1008-01Q Bolt, oil pan to timing case cover M6 Nm 14
OIL PAN

Number Designation ENGINE 642
BA01.45-P-1009-01Q Screw/bolt, oil pan to crankcase sealing at rear M6 Nm 14
OIL LEVEL/OIL PRESSURE SENSOR

Number Designation ENGINE 642
BA18.40-P-1001-01M Screw/bolt for oil dipstick guide tube Nm 11
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 204 MODEL 207
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28 28
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 212 MODEL 218
BA22.10-P-1002-03E Bolt, front engine mount to front axle carrier M8 Nm 28 28
POWER STEERING PUMP

Number Designation MODEL 204 with ENGINE 156, 271, 272, 274, 276, 642, 646 MODEL 207
BA46.30-P-1006-01R Holder of high-pressure line/low-pressure line to oil pan Nm 10 10
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1013-01T Bolt, bracket to oil pan Nm 10
REFRIGERANT COMPRESSOR

Number Designation ENGINE 642 in MODEL 204 ENGINE 642 in MODEL 207
BA83.55-P-1005-01A Refrigerant compressor bolt Nm 20 20
REFRIGERANT COMPRESSOR

Number Designation ENGINE 642 in MODEL 212 ENGINE 642 in MODEL 218
BA83.55-P-1005-01A Refrigerant compressor bolt Nm 20 20
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/836/838/850/852/853/854/856/858/861/862/867/868 without CODE 474 (Particulate trap) ENGINE 642.960 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0 8, 0
Specifications Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/835/836/838/850/852/853/854/856/858/861/862/867/868 with CODE 474 (Particulate trap) ENGINE 642.960 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0 8, 0
Specificiation Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specificiation Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specificiation Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specificiation Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
