Remove/install chain tensioner - AR05.10-P-7800SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221, 222

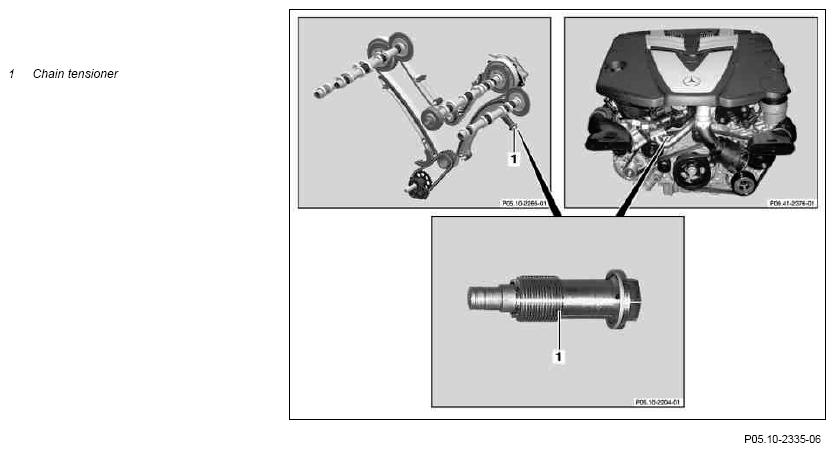

Shown on engine 642.9
| Remove/install | |||
| 1 | Remove engine cover | ENGINE 642 in MODEL 207, 212, 218, 221, 222 | |
| ENGINE 642 in MODEL 221 |
AR01.10-P-2405SXI | ||
| 2 | Remove right air filter housing | AR09.10-P-1150SXI | |
| 3 | Remove chain tensioner (1) | ||
| *BA05.10-P-1001-01L | |||
| 4 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Check for oil leaks with engine running |
TIMING CHAIN, CHAIN TENSIONER
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA05.10-P-1001-01L | Chain tensioner in cylinder head | Nm | 80 |
