Remove/install belt pulley/vibration damper - AR03.30-P-1600SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 207, 212, 218, 221
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove bottom sections of soundproofing | Model 221 without code (Z07) Top protection | AR61.20-P-1105SX |
| Model 207, 212, 218 | AR94.30-P-5300EW | ||
| 2 | Remove poly-V belt (2) | Model 207, 212, 218 | AR13.20-P-0001OGE |
| Model 221 | AR13.22-P-1202SXI | ||
| 3 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000SXI | |
| 4 | Remove center bolt (4) for belt pulley/vibration damper (5) | *BA03.30-P-1001-01G | |

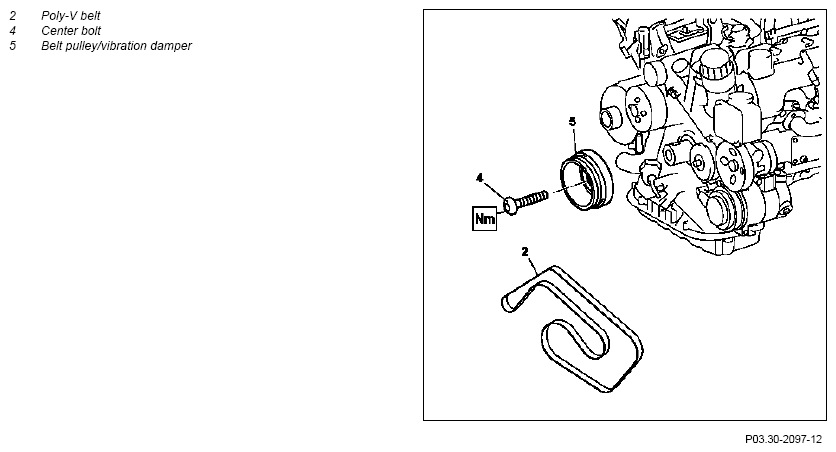

| Fig 2 | |||
| 5 | Pry off belt pulley/vibration damper (5) | ||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Inspect belt pulley/vibration damper (5) for axial and radial runout | AR03.30-P-1600-01SXI | |
| Permissible difference on vibration damper | *BE03.30-P-1001-02D |
TEST SPECIFICATIONS FOR BELT PULLEY/VIBRATION DAMPER
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BE03.30-P-1001-02D | Permissible difference on vibration damper | Radial runout | mm | 0.4 |
| Lateral trueness | mm | 0.4 | ||
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA03.30-P-1001-01G | Central bolt of vibration damper | Stage 1 | Nm | 200 |
| Stage 2 | ∠° | 90 | ||
| Stage 3 | ∠° | 90 | ||
