Overview of system components, telematics - GF82.85-P-9999FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 up to 5/31/12

Shown on model 212.0 except telematics antenna system and speaker system

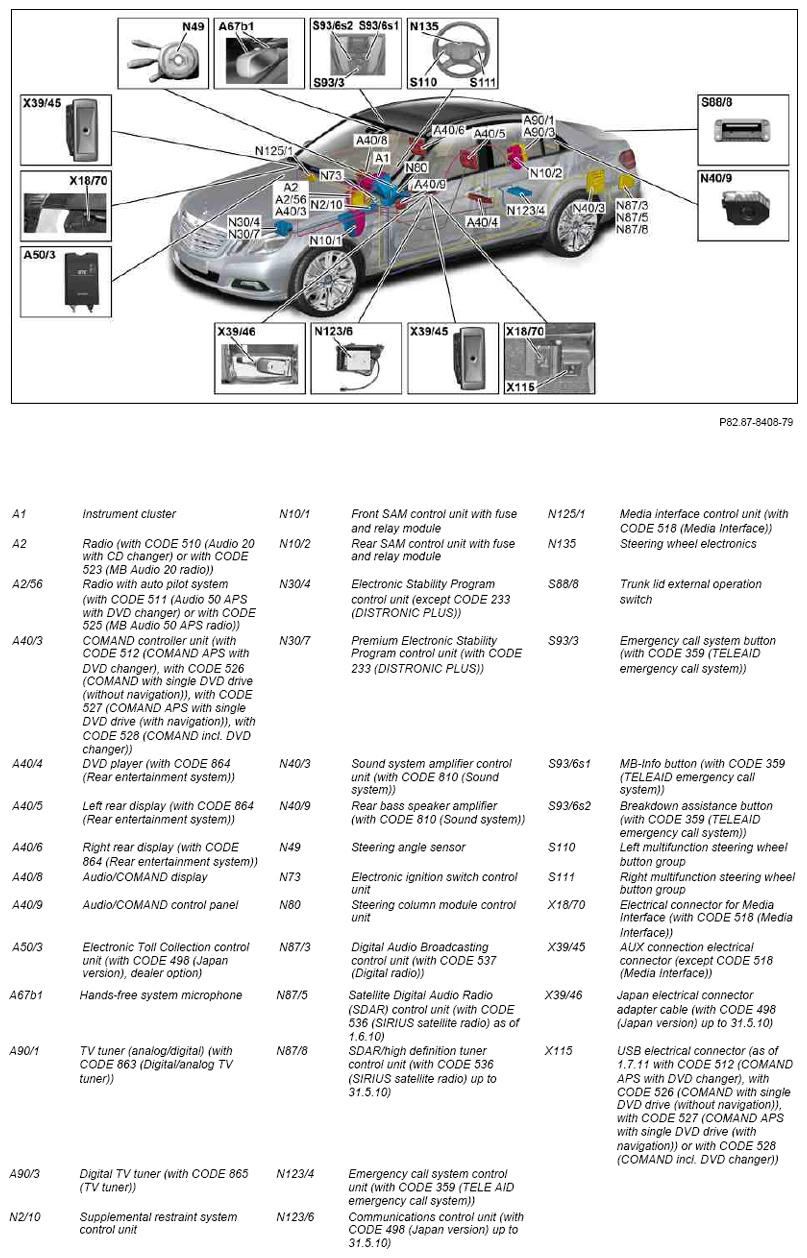

Fig 1: Overview Of Telematics System Components - Shown On Model 212.0
G09977716Courtesy of MERCEDES-BENZ USA

IMPORTANT The Media Interface electrical connector and the AUX connection electrical connector are located in the glove compartment up to 31.5.10 and in the stowage compartment (telephone compartment) beneath the armrest between the front seats as of 1.6.10.

Shown on model 212.2 except telematics antenna system and except speaker system

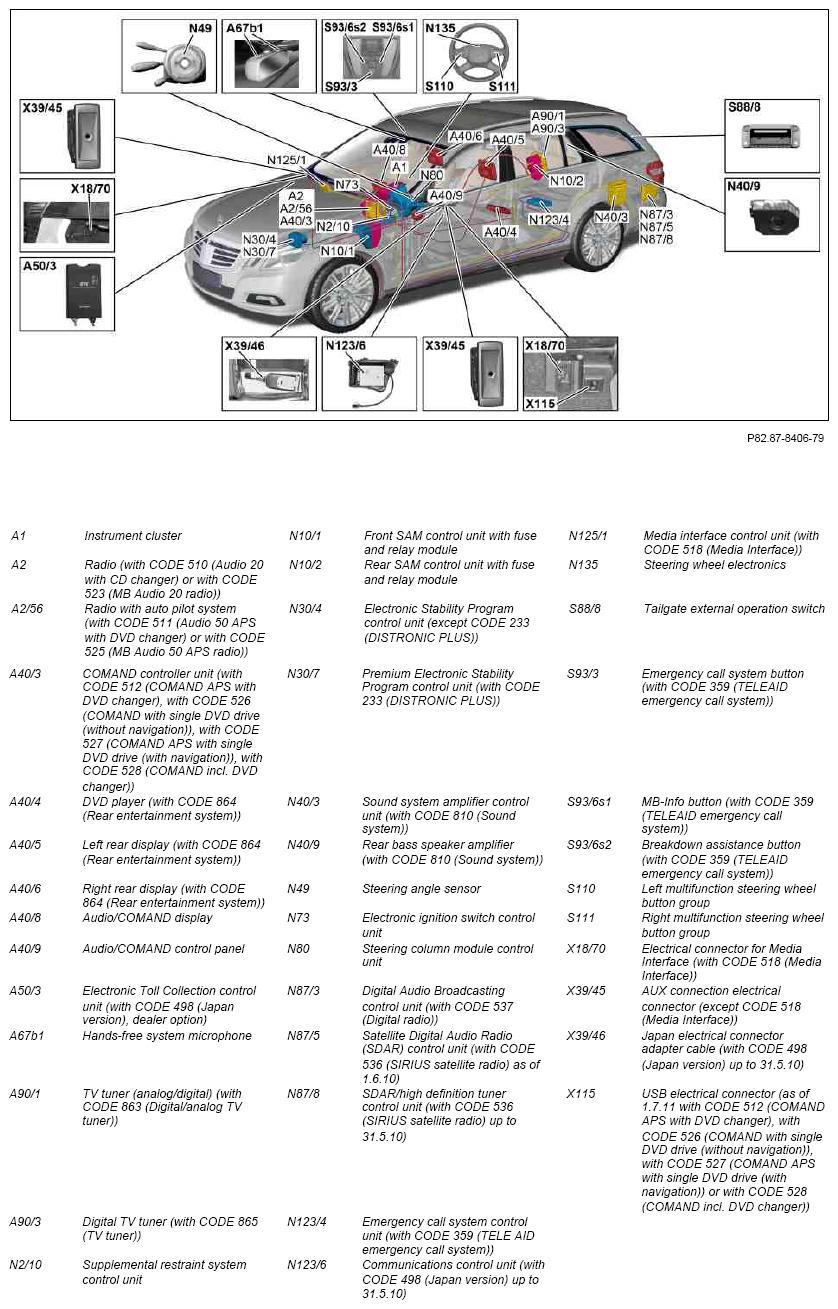

Fig 2: Overview Of Telematics System Components - Shown On Model 212.2
G09977717Courtesy of MERCEDES-BENZ USA

IMPORTANT The Media Interface electrical connector and the AUX connection electrical connector are located in the glove compartment up to 31.5.10 and in the stowage compartment (telephone compartment) beneath the armrest between the front seats as of 1.6.10.

Telematics antenna system shown on model 212.0

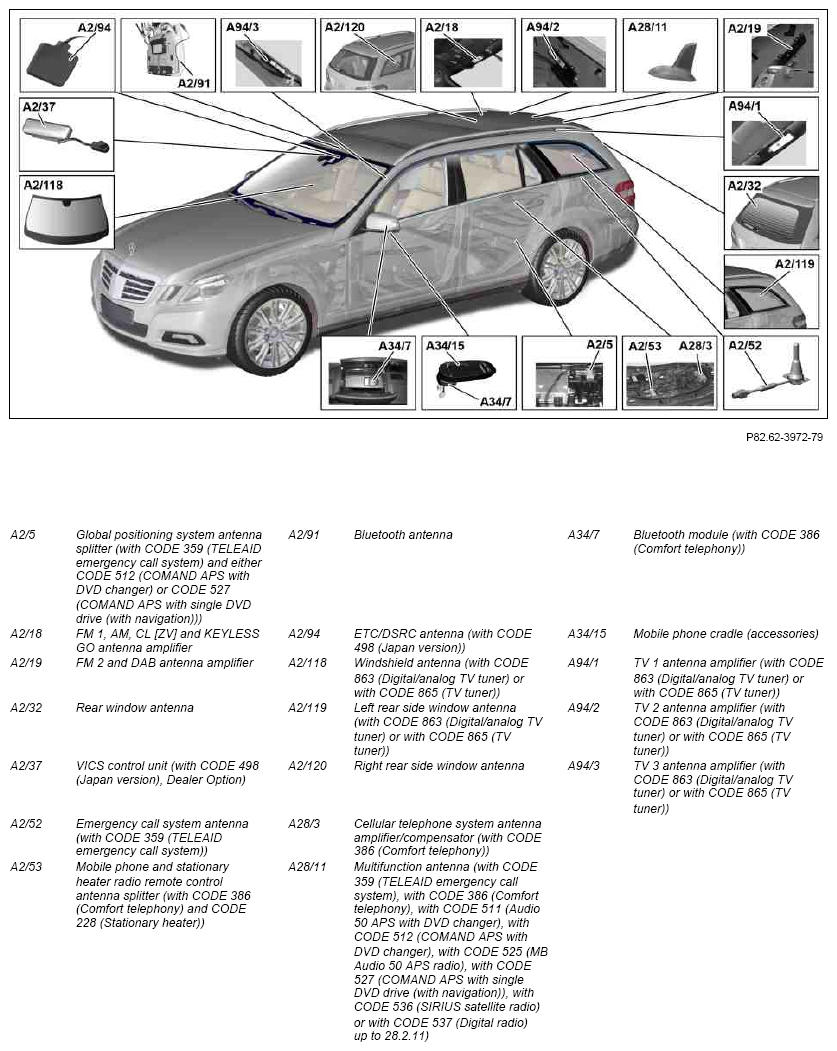

Fig 3: Overview Of Telematics System Components - Shown On Model 212.0
G09977718Courtesy of MERCEDES-BENZ USA

Telematics antenna system shown on model 212.2

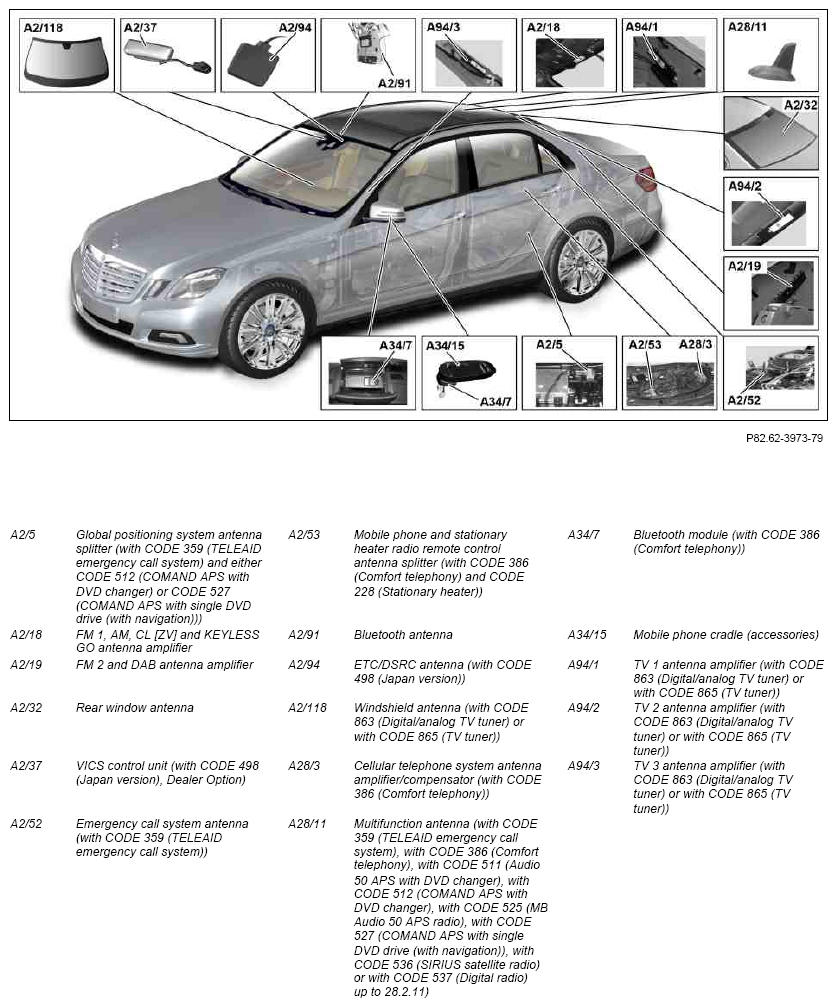

Fig 4: Overview Of Telematics System Components - Shown On Model 212.2
G09977719Courtesy of MERCEDES-BENZ USA

Speaker system except CODE 810 (Sound system), shown on model 212.0

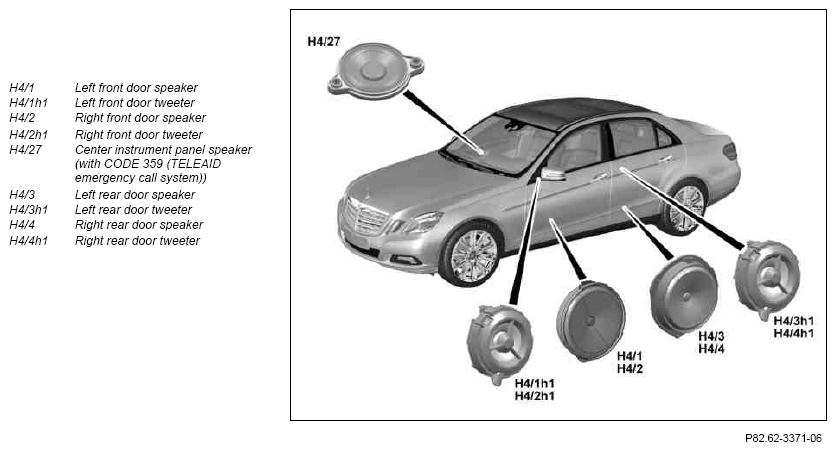

Fig 5: Speaker System Components - Shown On Model 212.0
G09977720Courtesy of MERCEDES-BENZ USA

Speaker system with CODE 810 (Sound system), shown on model 212.0

Fig 6: Speaker System Components - Shown On Model 212.0
G09977721Courtesy of MERCEDES-BENZ USA

IMPORTANT MODEL 212.2 up to 5/31/12 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))

The design of the bass speaker deviates.

Speaker system with CODE 810 (Sound system), shown on model 212.2

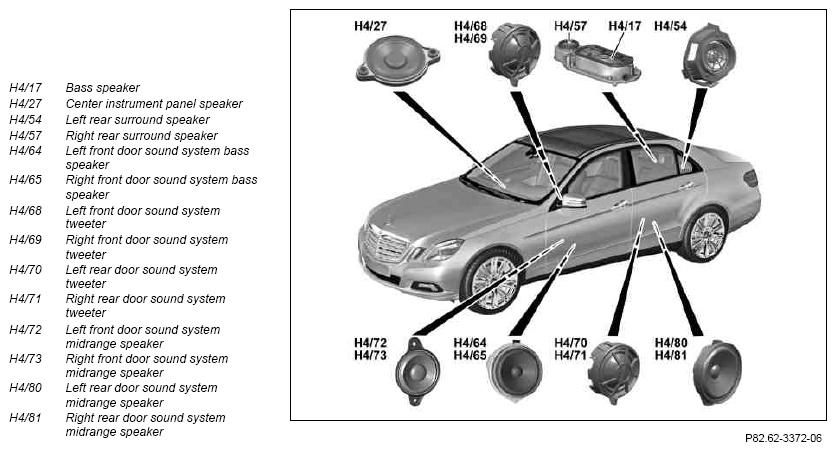

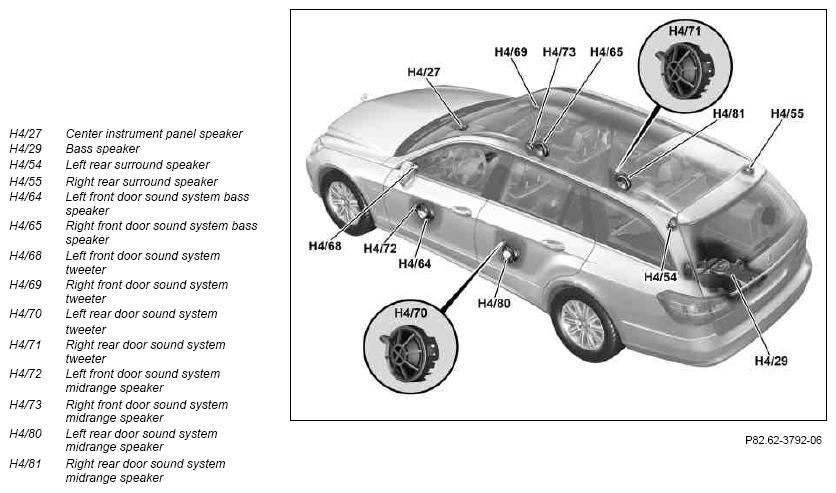

Fig 7: Speaker System Components - Shown On Model 212.2
G09977722Courtesy of MERCEDES-BENZ USA
  Component description for Electronic Stability Program control unit MODEL 212 (except 212.095/098/298)
up to model year 2013
N304, N307		 GF42.45-P-5119FL
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501FLA
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030FL
  Component description for steering column tube module control unit N80 GF54.21-P-6051FL
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070FL
  Component description for instrument cluster A1 GF54.30-P-6000FL
  Component description for Audio/COMAND display MODEL 212 up to 5/31/12 up to model year 2013
without CODE 867 (SPLITVIEW)
A40/8		 GF54.30-P-6150FL
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FL
  Component description for TV tuner (analog/digital) MODEL 212
with CODE 863 (Digital/analog TV tuner) A90/1		 GF82.60-P-3106FL
  Digital TV tuner, component description MODEL 212
with CODE 498 (Japanese version)
with CODE 865 (TV tuner) A90/3		 GF82.60-P-3118FLJ
  Component description for the radio MODEL 212 up to 5/31/12 up to model year 2013
with CODE 510 (Audio 20 with CD changer)
MODEL 212 up to 5/31/12
up to model year 2013
with CODE 523 (MB Audio 20 radio)
A2		 GF82.60-P-3122FLA
  Component description for media interface control unit MODEL 212
up to model year 2013
with CODE 518 (Media interface) N125/1		 GF82.60-P-5000FL
  Component description for radio with auto pilot system MODEL 212
with CODE 511 (Audio 50 APS with DVD changer)
MODEL 212
with CODE 525 (MB Audio 50 APS radio) A2/56		 GF82.61-P-4112FLA
  Component description for Digital Audio Broadcasting control unit MODEL 212 up to 5/31/12 up to model year 2013
with CODE 537 (Digital radio) N87/3		 GF82.62-P-5000FL
  Component description for sound system amplifier control unit MODEL 212
with CODE 810 (Sound system) N40/3		 GF82.62-P-5010FL
  Satellite digital audio radio (SDAR) control unit, component description MODEL 212 up to 5/31/12
as of model year 2011 up to model year 2013
with CODE 536 (SIRIUS satellite radio) N87/5		 GF82.85-P-3121FL
  SDAR tuner/high definition tuner control unit, component description MODEL 212
up to model year 2011
with CODE 536 (SIRIUS satellite radio) N87/8		 GF82.85-P-3122FL
  Component description for COMAND controller unit MODEL 212
with CODE 512 (COMAND APS with DVD changer)
MODEL 212
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 498 (Japanese version) A40/3		 GF82.85-P-3136FL
MODEL 212
with CODE 526 (COMAND with single DVD drive (without navigation))
MODEL 212
with CODE 528 (COMAND with DVD changer) A40/3		 GF82.85-P-3136FLA
MODEL 212
with CODE 498 (Japanese version)
with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3		 GF82.85-P-3136FLJ
  Component description for rear entertainment DVD player MODEL 212
with CODE 864 (Rear entertainment system) A40/4		 GF82.90-P-4009FL
  Component description for rear display left/right MODEL 212
with CODE 864 (Rear entertainment system) A40/5, A40/6		 GF82.90-P-4020FL
  Component description for emergency call system control unit MODEL 212
with CODE 359 (TELE AID emergency call system)
without CODE 348 (Emergency call/assistant system) N123/4		 GF82.95-P-3212FLU
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080FL
  Table of contents for function description, telematics   GF82.85-P-0993FL
