TV tuner (analog/digital), component description - GF82.60-P-3106FL
MODEL 212 with CODE (863) Digital/analog TV tuner
Shown on model 212.0

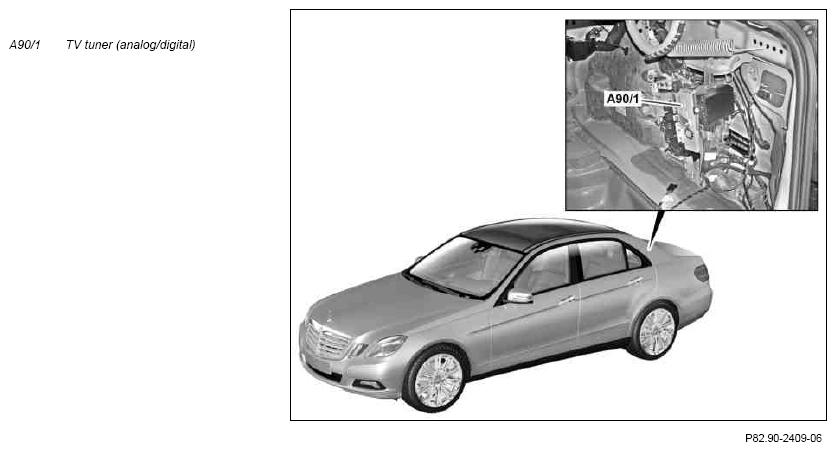

Location
The TV tuner (analog/digital) is located at the right rear in the trunk behind the paneling on a bracket.
Task
- Receive signals
- Demodulating and decoding signals
- Transmit signals
Receive signals
- Direct lines
- CAN (with code (864) Rear entertainment system)
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via terminal 31 and terminal 30g
- Electronic wake-up via a direct line
- TV 1 antenna amplifier (A94/1) via a coaxial cable
- TV 2 antenna amplifier (A94/2) via a coaxial cable
- TV 3 antenna amplifier (A94/3) via a coaxial cable
CAN (with code (864) Rear entertainment system)
The TV tuner (analog/digital) is a subscriber of the telematics CAN (CAN A) and communicates with the following control units:
- Left rear display (A40/5)
- Right rear display (A40/6)
- DVD player (A40/4)
Media Oriented System Transport (MOST)
The TV tuner (analog/digital) is a subscriber of the MOST, via which it communicates with the COMAND operating, display and controller unit (A40/3).
Demodulating and decoding signals
The received TV signals are evaluated internally and separated into video and audio signals.
Transmit signals
- Direct line
- CAN (with code (864) Rear entertainment system)
- MOST
Direct line
- Phantom power supply to following antenna amplifiers:
- TV 1 antenna amplifier
- TV 2 antenna amplifier
- TV 3 antenna amplifier
- Transmit video signals to the COMAND controller unit via Y/C lines
- Transmit video signals via Y/C lines to the DVD player (with code (864) Rear entertainment system)
- Transmit audio signals to the DVD player (with code (864) Rear entertainment system)
CAN (with code (864) Rear entertainment system)
The TV tuner (analog/digital) is a telematics CAN subscriber and it communicates with the following control units:
- Left rear display
- Right rear display
- DVD player
MOST
The TV tuner (analog/digital) is a subscriber of the MOST, via which it communicates with the COMAND controller unit. The audio signals are transmitted to the COMAND controller unit or the sound system amplifier control unit (N40/3) (with code (810) Sound system).
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| TV tuner (analog/digital) | ||||
| Power supply | VV | 14 | Battery voltage U B | |
| Voltage limits | VV | 9 | Minimum UBmin | |
| 16 | Maximum UBmax | |||
| Power consumption | A | < 1, 9 | Rated power consumption IBmax | |
| A | < 1, 9 | Action IAction (Standby=Operation) | ||
| mA | 1 | Quiescent current I0 | ||
| Reverse polarity protection | Yes | |||
| Additional specific parameters | MHz | 47 to 68 | TV band 1 | |
| TV reception frequencies (analog and digital) | MHz | 174 to 230 | TV band 3 | |
| MHz | 470 to 862 | TV band 4/5 | ||
| Minimum voltage | VV | ≤9 | ±0, 2 | Minimum UBmin If the voltage drops below the minimum value (UBmin ), all data in the volatile memories is lost. |
| Special features | The IS tester can access the diagnostic system of the TV tuner (analog/digital) via the electronic ignition lock control unit (N73), the interior CAN (CAN B), the COMAND controller unit (A40/3) and the Media Oriented System Transport (MOST). The following service functions are supported:
|
|||
| Flash capability/coding capability | Profi-compatible flashable/SCN coding |
| Wiring diagram for TV tuner | A90/1 | PE82.60-P-2220-97DAA |
