Remove/install starter - AR15.30-P-7100EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276 in MODEL 212 (except 212.095/195), 218

Shown on engine 276.9 without 4MATIC

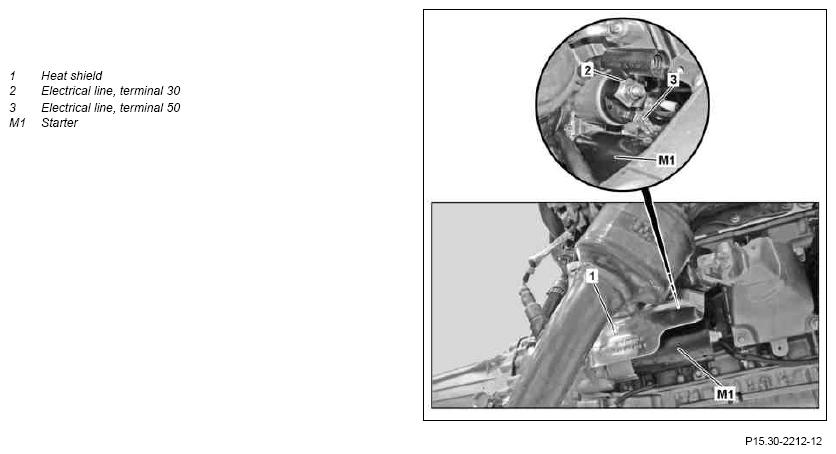

Fig 1: Starter Remove/Install Components - Shown On Engine 276.9 Without 4MATIC
G09975082Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Disconnect ground line at battery   AR54.10-P-0003EW
NOTES Notes on battery AH54.10-P-0001-01A
2 Remove lower engine compartment paneling   AR61.20-P-1105EW
3 Remove steering coupling ENGINE 276.8 in MODEL 212, 218
with CODE M005 (4MATIC)
  AR46.10-P-8000EW
4 Remove left catalytic converter ENGINE 276.8 in MODEL 212, 218
with CODE M005 (4MATIC)
  AR49.10-P-7100EL
5 Remove heat shield (1)
6 Detach contact protection on circuit 30 electrical line (2)
7 Detach electrical line of circuit 30 (2) at starter (M1) TORQUE SPECIFICATION Nut, connection for terminal designation 30 *BA15.30-P-1001-01J
8 Detach electrical line of circuit 50 (3) at starter (M1) TORQUE SPECIFICATION Nut, connection for terminal designation 50 *BA15.30-P-1002-01J
9 Remove starter (M1) from cylinder crankcase TORQUE SPECIFICATION Bolt, starter to crankcase *BA15.30-P-1003-01J
10 Remove starter (M1) from below
INSPECT Check
11 Detach charge air cooler and pull to the front with attached coolant hoses ENGINE 276.8 in MODEL 212 (except 212.095/195), 218
  AR09.41-P-6819ELS
12 Check starter ring gear at flywheel/drive plate for wear and damage IMPORTANT Crank engine at crankshaft center bolt in direction of engine rotation.
In a case of a worn or damaged starter ring gear:
↓
Replace flywheel/drive plate
  AR03.30-P-8001EL
13 Install in the reverse order
STARTER

Number Designation ENGINE 276
BA15.30-P-1001-01J Nut, connection for terminal designation 30 Nm 15
STARTER

Number Designation ENGINE 276
BA15.30-P-1002-01J Nut, connection for terminal designation 50 Nm 6
STARTER

Number Designation ENGINE 276
BA15.30-P-1003-01J Bolt, starter to crankcase Nm 40
