Remove/install oil lines of oil cooling for automatic transmission - AR27.55-P-0600EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0 in MODEL 212 with ENGINE 642
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove bottom section of soundproofing | AR94.30-P-5300EW | |

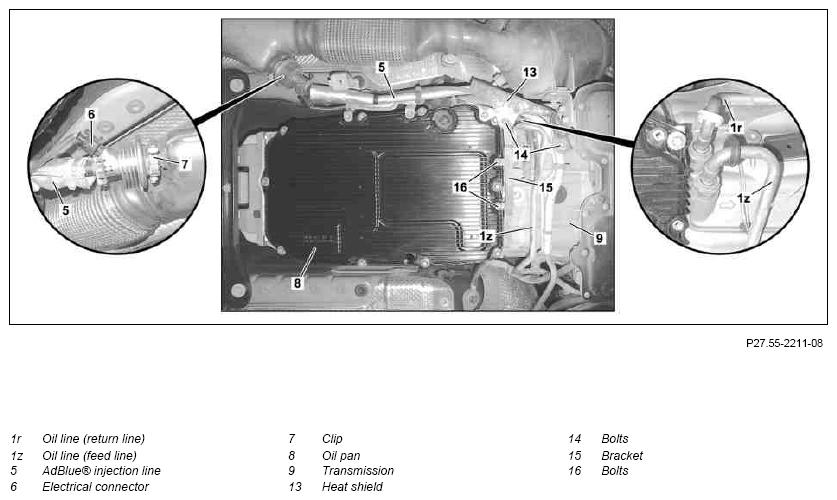

| 2 | Disconnect oil line (1r) or oil line (1z) at front connecting points (2) | ||
| Figure | |||
| 3 | Detach AdBlue® injection line (5) and place to one side | ||
| 4 | Lower rack-and-pinion steering | TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 with CODE 211 (Direct-Steer system) | AR46.20-P-0600EL |
| 5 | Detach corresponding clamps (4) from oil pan (8) | ||
| 6 | Remove heat shield (13) | ||
| 7 | Remove bracket (15) | ||
| 8 | Detach oil line (1r) or oil line (1z) and pull out of transmission (9) | AR27.10-P-0501-03CW | |
| Figure | |||
| 9 | Detach clamp (10) | ||
| 10 | Remove radiator grille | TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 up to model year 2014 |
AR88.40-P-4001EW |
| TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 as of model year 2014 without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 954 (Avantgarde) |
AR88.40-P-4001EWM | ||
| TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 as of model year 2014 with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) with CODE 954 (Avantgarde) |
AR88.40-P-4001EWN | ||

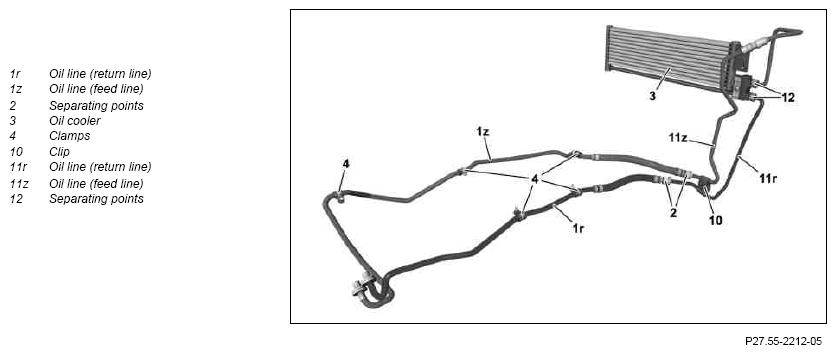

| 11 | Detach oil line (1r) or oil line (1z) at front from oil cooler (3) at connecting points (12) | ||
| Figure | |||
| 12 | Remove oil line (1r) or oil line (1z) downwards | ||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check transmission oil level and correct if necessary | TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 with CODE 805 (Model year 2015) |
AR27.00-P-0270EWN |
| TRANSMISSION 725.0 in MODEL 212 with ENGINE 642 without CODE 805 (Model year 2015) |
AR27.00-P-0270EWM | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Carry out an engine test run and check transmission (9) for leaks |
