Filling automatic transmission with fluid - AR27.00-P-0270EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0 without CODE 805 (Model year 2015)

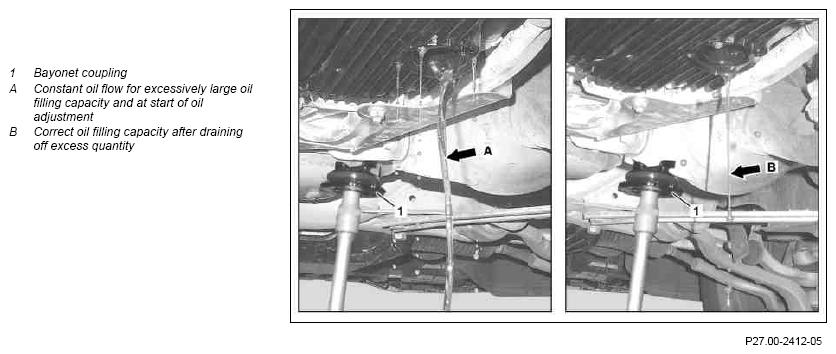

Fig 1: Filling Automatic Transmission With Fluid - Transmission 725 (1 Of 2)
G09975650Courtesy of MERCEDES-BENZ USA

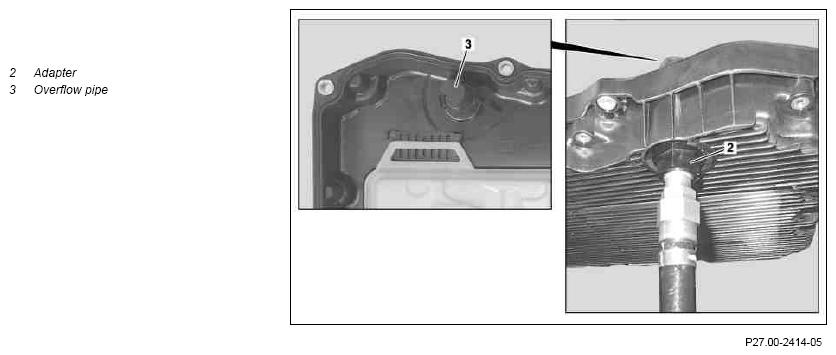

Fig 2: Filling Automatic Transmission With Fluid - Transmission 725 (2 Of 2)
G09975651Courtesy of MERCEDES-BENZ USA
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
  Fill with transmission oil
1 Move transmission to position "P"
2.1 Remove rear bottom part of soundproofing TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Diesel TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651
without CODE 805 (Model year 2015)		 AR94.30-P-5300EW
TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Diesel		 AR94.30-P-5300W
2.2 Remove rear lower engine compartment paneling TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Gasoline TRANSMISSION 725.0 in MODEL 205, 217, 222
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 218 with ENGINE 276
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 205
without CODE 805 (Model year 2015)		 AR61.20-P-1105LW
TRANSMISSION 725.0 in MODEL 217, 222
without CODE 805 (Model year 2015)		 AR61.20-P-1105LF
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 218 with ENGINE 276
without CODE 805 (Model year 2015)		 AR61.20-P-1105EW
TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Gasoline		 AR61.20-P-1105W
3 Remove bayonet coupling (1), mount adapter (2) and connect oil dispenser Oil dispenser for transmission
SPECIAL TOOL Adapter Fig 3
4 Pump 8 liters of transmission oil into transmission NOTES Observe Specifications for Operating Fluids. Otherwise damage to the transmission may occur.
IMPORTANT On transmissions that have been repaired, the quantity of transmission oil drained +0.5 liters should be poured in.
FLUID SPECIFICATION Filling capacity *BF27.00-P-1001-01I
5 Start engine
6 Connect diagnostic system and check oil level
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 205, 217, 222
without CODE 805 (Model year 2015)		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 166, 172, 207, 212, 218
without CODE 805 (Model year 2015)
IMPORTANT In the diagnostic system, call up the menu item "Adjust oil level".
IMPORTANT Throughout the entire test, the parking brake must not be released and no other disturbance variables may be generated, that are not required for the work procedure. All these factors would result in the diagnostic system measurement being canceled and then require a restart.		 AD00.00-P-2000-04A
7.1 Bring transmission oil temperature to 90 °C/194 °F Vehicles with additional oil cooler and when additional oil cooler was removed/replaced beforehand
IMPORTANT Thermostat opens at 90 °C/194 °F.
IMPORTANT Engine rpm 2500 rpm, selector lever in position "P".
7.2 Bring transmission oil temperature to 35°C/95°F Vehicles without additional oil cooler or vehicles with additional oil cooler where additional oil cooler was not removed/replaced beforehand
8.1 Switch off engine and allow transmission oil to cool down Vehicles with additional oil cooler and when additional oil cooler was removed/replaced beforehand
8.2 Turn off engine Vehicles without additional oil cooler or vehicles with additional oil cooler where additional oil cooler was not removed/replaced beforehand
9 Determine transmission oil temperature using diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 205, 217, 222
without CODE 805 (Model year 2015)		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 166, 172, 207, 212, 218
without CODE 805 (Model year 2015)		 AD00.00-P-2000-04A
10 Start engine and allow to run in selector lever position "P"
11 Pump transmission oil using oil dispenser into transmission NOTES Observe Specifications for Operating Fluids. Otherwise damage to the transmission may occur.
FLUID SPECIFICATION Filling capacity
Oil dispenser for transmission		 *BF27.00-P-1001-01I
  Adjust to correct level
12 In diagnostic system, select menu item "Adjust oil level" and follow instructions from diagnostic system
13 Determine transmission oil temperature using diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 205, 217, 222
without CODE 805 (Model year 2015)		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS TRANSMISSION 725.0 in MODEL 212 without CODE 805 (Model year 2015)
IMPORTANT As the overflow tube (3) within the oil pan is designed for operation at the specified transmission oil temperature, this temperature should never exceed the level indicated.		 AD00.00-P-2000-04A
14 Detach oil dispenser together with adapter (2) Oil dispenser for transmission
SPECIAL TOOL Adapter Fig 3
15 Allow constant flow of oil (arrow A) to be drained off at the specified transmission oil temperature, until only a thin flow of oil escapes (see correct oil filling capacity (arrow B)) IMPORTANT The diagnostic system performs the oil adjusting function "Adjust oil level". Follow the instructions issued by the diagnostic system.
IMPORTANT If the oil flow is not constant after the drain screw is opened, the oil level has to be corrected and then adjusted again.
16 Screw in bayonet connection (1)
17 Check transmission for leaks and function
18.1 Install lower section of rear soundproofing TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015)
Diesel TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Diesel		 AR94.30-P-5300W
TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651
without CODE 805 (Model year 2015)		 AR94.30-P-5300EW
18.2 Install rear lower engine compartment paneling TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015)
Gasoline TRANSMISSION 725.0 in MODEL 205, 217, 222
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 218 with ENGINE 276
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 172
without CODE 805 (Model year 2015) Gasoline		 AR61.20-P-1105W
TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278
without CODE 805 (Model year 2015)
TRANSMISSION 725.0 in MODEL 218 with ENGINE 276
without CODE 805 (Model year 2015)		 AR61.20-P-1105EW
TRANSMISSION 725.0 in MODEL 217, 222
without CODE 805 (Model year 2015)		 AR61.20-P-1105LF
TRANSMISSION 725.0 in MODEL 205
without CODE 805 (Model year 2015)		 AR61.20-P-1105LW
AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 725.0
BF27.00-P-1001-01I Filling capacity with complete refill Liter ≈10, 0
Specifications for Operating Fluids Automatic transmission fluids (ATF, Specification 236.16). See https://bevo.mercedes-benz.com/index.php?language_id=1
Fig 3: Identifying Adapter (725 589 00 90 00)
G09975652Courtesy of MERCEDES-BENZ USA
