Filling automatic transmission with fluid - AR27.00-P-0270EWN

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0 with CODE 805 (Model year 2015)

Fig 1: Filling Automatic Transmission With Fluid - Transmission 725.0 (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Filling Automatic Transmission With Fluid - Transmission 725.0 (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Filling Automatic Transmission With Fluid - Transmission 725.0 (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Move transmission to position "P"
2	Raise vehicle with vehicle lift	TRANSMISSION 725.0 in MODEL 166, 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015)	AR00.60-P-1000V
		TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015)	AR00.60-P-1000GZ
		TRANSMISSION 725.0 in MODEL 205 with CODE 805 (Model year 2015) The vehicle must be situated on the lifting platform so that it is level in both the longitudinal and transverse axes.	AR00.60-P-1000LW
3.1	Remove bottom section of soundproofing	TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) DieselTRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Diesel	AR94.30-P-5300W
		TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651 with CODE 805 (Model year 2015)	AR94.30-P-5300EW
3.2	Remove rear lower engine compartment paneling	TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) GasolineTRANSMISSION 725.0 in MODEL 205, 217, 222 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 218 with ENGINE 276 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Gasoline	AR61.20-P-1105W
		TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 218 with ENGINE 276 with CODE 805 (Model year 2015)	AR61.20-P-1105EW
		TRANSMISSION 725.0 in MODEL 217, 222 with CODE 805 (Model year 2015)	AR61.20-P-1105LF
		TRANSMISSION 725.0 in MODEL 205 with CODE 805 (Model year 2015)	AR61.20-P-1105LW
3.3	Remove underfloor paneling	TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015)
3.3	Remove underfloor paneling		AR61.30-P-1001GQ
	Fill with transmission oil
4	Place suitable oil receptacle under quick-release coupling (1) of oil pan

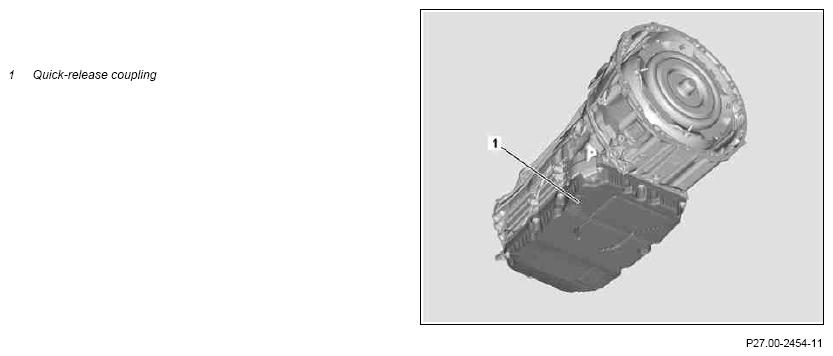

5	Remove quick-release coupling (1)	Use oil thrower from assembly tool.
5	Remove quick-release coupling (1)	Assembly tool	Fig 4
6	Mount adapter and connect oil dispenser	Oil dispenser for transmission
6	Mount adapter and connect oil dispenser	Adapter	Figure
7	Pump gear oil into transmission
	Automatic transmission fluids (ATF) (specification 236.16)		Automatic transmission fluids (ATF, Specification 236.16). See https://bevo.mercedes-benz.com/index.php?language_id=1
	Automatic transmission fluids (ATF) (specification 236.16)	If gear oil is drained off then the drained quantity + approx. 500 ml gear oil must be added. If gear oil was not drained off, approx. 500 ml gear oil must be pumped into the transmission.
8	Disconnect adapter and oil dispenser and screw in quick-release coupling (1)	Oil dispenser for transmission
8		Adapter	Figure
	Correct transmission oil level
9	Connect diagnostic system and determine transmission oil temperature
		TRANSMISSION 725.0 in MODEL 205, 217, 222 with CODE 805 (Model year 2015)	AD00.00-P-2000-04B
		TRANSMISSION 725.0 in MODEL 166, 172, 207, 212, 218 with CODE 805 (Model year 2015) In Xentry call up the "Adjust oil level" menu item. Throughout the entire test, the parking brake must not be released and no other disturbance variables may be generated, that are not required for the work procedure. All these factors would interrupt the measurement and then require a restart.	AD00.00-P-2000-04A
10	Allow gear oil to cool to less than the limit value	If the limit value is exceeded TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015) Limit value is 55 °C. TRANSMISSION 725.0 in MODEL 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015) Limit value is 35 °C. The routine can be continued with once the limit value has been dropped below.
11	Remove quick-release coupling (1)	Use oil thrower from assembly tool.
11	Remove quick-release coupling (1)	Assembly tool	Fig 4

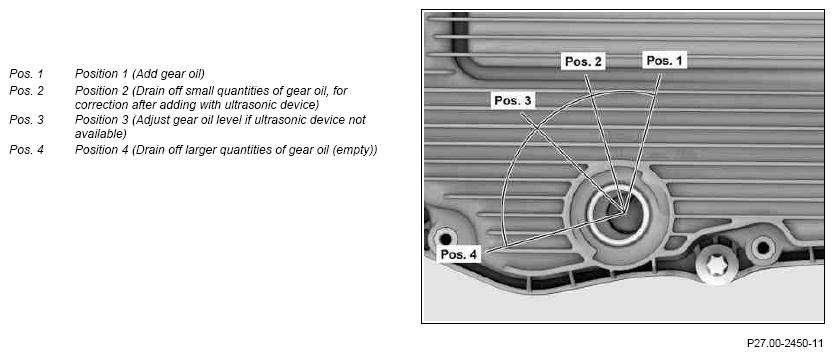

12	Mount socket wrench	Wing must be set to position 1 (Pos. 1). Lock socket wrench from assembly tool to oil pan by applying light upward pressure.
12	Mount socket wrench	Assembly tool	Fig 4
13	Start the engine and heat up gear oil	TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015) Heat gear oil to 59 °C. TRANSMISSION 725.0 in MODEL 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015) Heat gear oil to 39 °C.

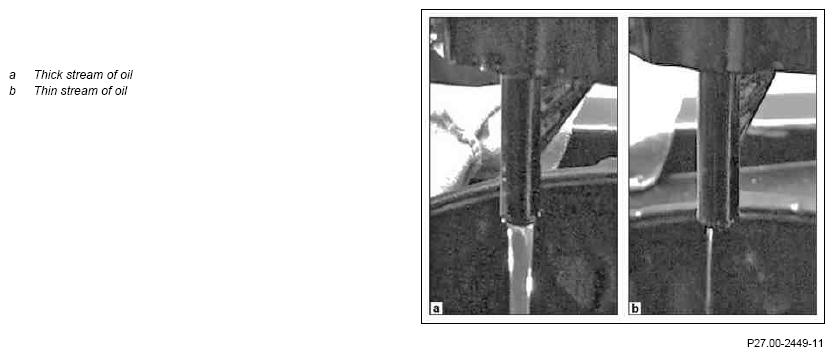

14	Set socket wrench to position 3 (Pos. 3)	TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015) The socket wrench from the assembly tool must be aligned with position 3 (Pos. 3) as soon as the transmission oil temperature reaches 59 °C. TRANSMISSION 725.0 in MODEL 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015) The socket wrench from the assembly tool must be aligned with position 3 (Pos. 3) as soon as the transmission oil temperature reaches 39 °C. A thick stream of oil (a) exits.
14	Set socket wrench to position 3 (Pos. 3)	Assembly tool	Fig 4
15	Allow oil to drain off	TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015) Until the oil stream thins out (b) and the transmission oil temperature is 60 °C. TRANSMISSION 725.0 in MODEL 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015) Until the oil stream thins out (b) and the transmission oil temperature is 40 °C.
16	Align socket wrench with position 1 (Pos. 1) and pull off socket wrench	The socket wrench from the assembly tool may only be removed when in position 1 (Pos. 1). Otherwise, when the quick-release coupling (1) is opened again an undefined quantity of gear oil will leak out.
16		Assembly tool	Fig 4
17	Screw in quick-release coupling (1)
18	Turn off engine
19	Disconnect diagnostic system
		TRANSMISSION 725.0 in MODEL 166, 172, 207, 212, 218 with CODE 805 (Model year 2015)	AD00.00-P-2000-04A
		TRANSMISSION 725.0 in MODEL 205, 217, 222 with CODE 805 (Model year 2015)	AD00.00-P-2000-04B
	Install
20.1	Install bottom sections of soundproofing	TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Diesel TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 207, 212, 218 with ENGINE 642 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 651 with CODE 805 (Model year 2015)	AR94.30-P-5300EW
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Diesel	AR94.30-P-5300W
20.2	Install rear lower engine compartment paneling	TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Gasoline TRANSMISSION 725.0 in MODEL 205, 217, 222 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 218 with ENGINE 276 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 212, 218 with ENGINE 278 with CODE 805 (Model year 2015) TRANSMISSION 725.0 in MODEL 218 with ENGINE 276 with CODE 805 (Model year 2015)	AR61.20-P-1105EW
		TRANSMISSION 725.0 in MODEL 217, 222 with CODE 805 (Model year 2015)	AR61.20-P-1105LF
		TRANSMISSION 725.0 in MODEL 205 with CODE 805 (Model year 2015)	AR61.20-P-1105LW
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015) Gasoline	AR61.20-P-1105W
20.3	Install underbody paneling	TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015)
20.3	Install underbody paneling		AR61.30-P-1001GQ
21	Lower vehicle with lifting platform	TRANSMISSION 725.0 in MODEL 166, 172, 205, 207, 212, 217, 218, 222 with CODE 805 (Model year 2015)
		TRANSMISSION 725.0 in MODEL 205 with CODE 805 (Model year 2015)	AR00.60-P-1000LW
		TRANSMISSION 725.0 in MODEL 166 with CODE 805 (Model year 2015)	AR00.60-P-1000GZ
		TRANSMISSION 725.0 in MODEL 172 with CODE 805 (Model year 2015)	AR00.60-P-1000V

Fig 4: Identifying Assembly Tool (725 589 02 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adapter (725 589 00 90 00)

Courtesy of MERCEDES-BENZ USA
