Remove/install radiator grille - AR88.40-P-4001EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 without CODE 772 (AMG bodystyling) without CODE 954 (AVANTGARDE)
| Remove/install | |||
| 1 | Open engine hood | AR88.40-P-1000EW | |

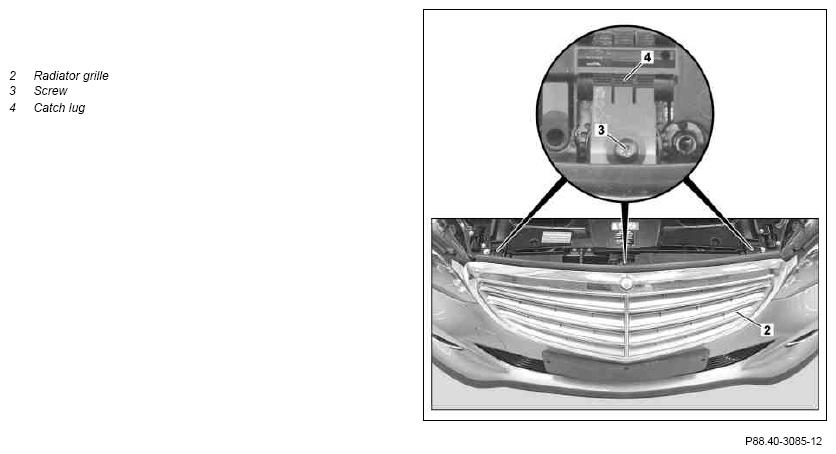

| 2 | Remove screws/bolts (3) | ||

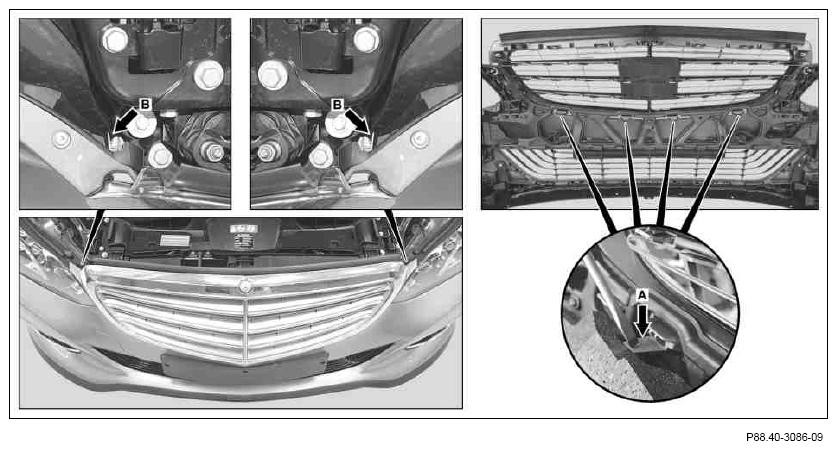

| 3 | Unclip left and right catch hook (arrow B) and unhook radiator grille (2) | ||
| 4 | Release catch hook (4) on bracket and pivot radiator paneling (2) toward front | ||
| 5 | Unclip radiator grille (2) from catch hook (arrow A) and remove toward front from bumper | ||
| 6 | Install in the reverse order | ||
| Adjust | |||
| 7 | Adjust radiator grille (2) | AR88.20-P-2001EWM | |
| 8 | Open engine hood, tighten bolts (3) and close engine hood | ||
| Check | |||
| 9 | Adjust camera 360° camera with STAR DIAGNOSIS | MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) without CODE 772 (AMG bodystyling) without CODE 954 (AVANTGARDE) |
|
| AD00.00-P-2000-04A |
