Remove/install radiator grille - AR88.40-P-4001EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2014

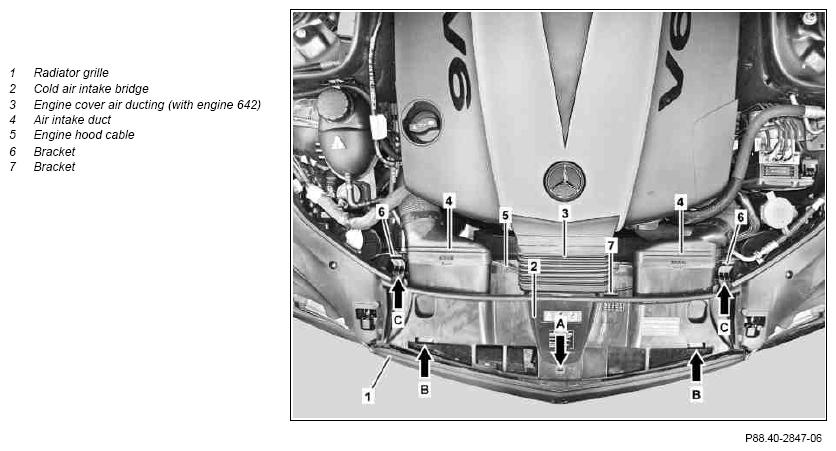

Shown with engine 642
| Remove/install | |||
| 1 | Remove engine cover air ducting (3) | with engine 642 | |
| 2 | Remove left and right air intake duct (4) | ||
| 3 | Unhook engine hood cable (5) from brackets (6, 7) | ||
| 4 | Release cold air intake bridge (2) at catch hooks (arrows A, B and C) and remove air intake bridge (2). | ||

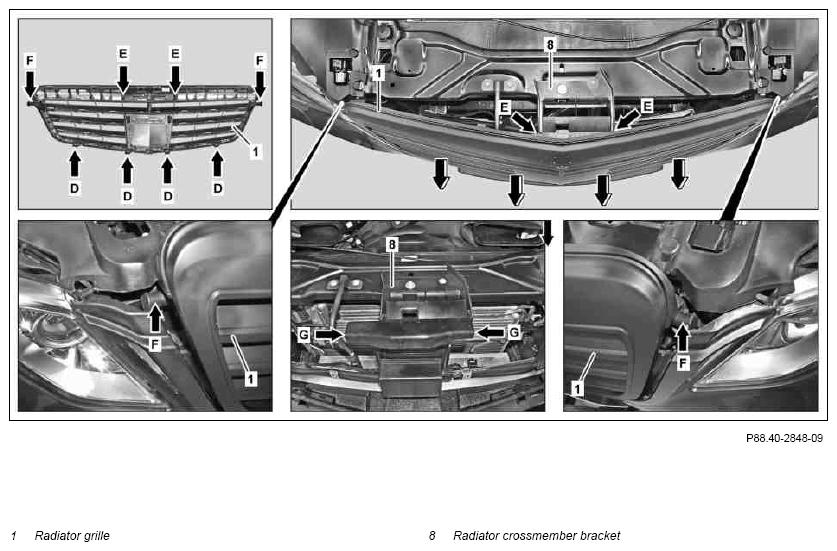

| 5 | Unclip radiator grille (1) from catch hooks (arrows D) and slightly pivot toward front out of bumper | ||
| 6 | Lift bracket (arrows E) on radiator grille (1) out of pins (arrows G) on radiator crossmember bracket (8) | ||
| 7 | Unclip left and right pins (arrows F) on radiator grille (1) from bumper and remove radiator grille (1) in direction of arrow. | ||
| 8 | Install in the reverse order |
