Remove/install radiator grille - AR88.40-P-4001EWN
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 772 (AMG bodystyling) with CODE 954 (AVANTGARDE)

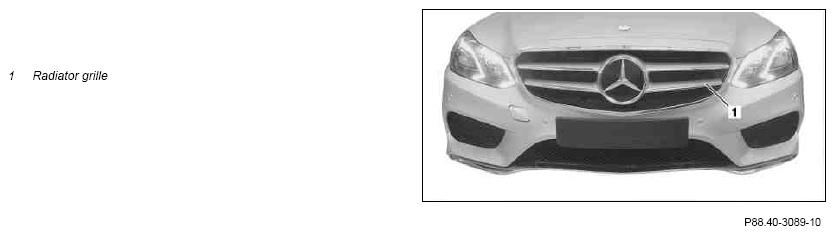

Shown with CODE 954 (AVANTGARDE)
| Remove/install | |||
| 1 | Remove bumper | AR88.20-P-2000EWM | |
| 2 | Remove radiator grille (1) | AR88.20-P-2050EWM | |
| 3 | Install in the reverse order | ||
| Adjust | |||
| 4 | Adjust front bumper | AR88.20-P-2001EWM | |
| Check | |||
| 5 | Adjust camera 360° camera with STAR DIAGNOSIS | MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) with CODE 772 (AMG bodystyling) with CODE 954 (AVANTGARDE) |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
