Retrofit COMAND with APS navigation system - AN82.85-P-0003EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/077/092/095/098) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 510 (Audio 20 CD with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092/095/098) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

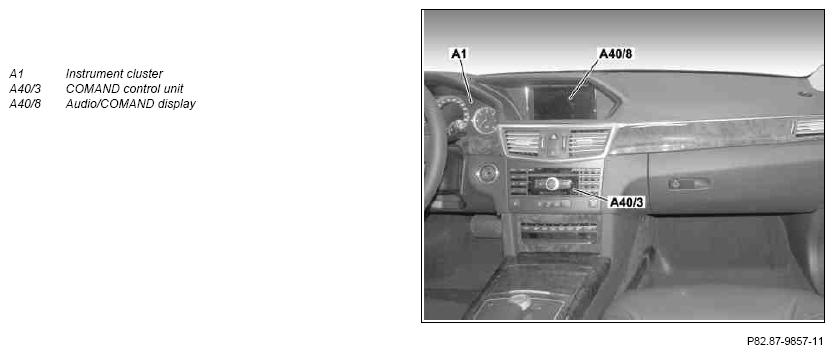

Fig 1: APS Navigation System Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

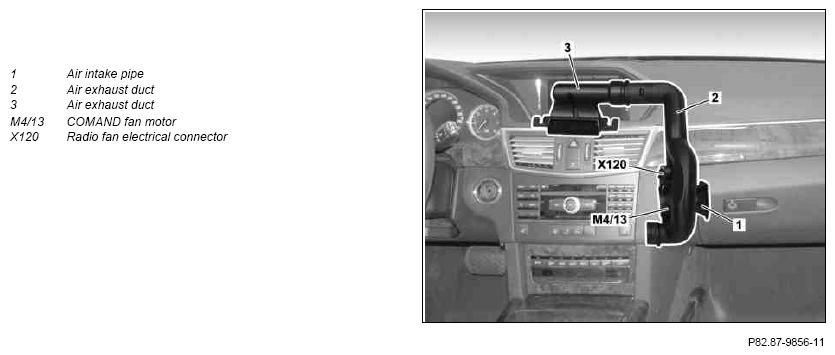

Fig 2: APS Navigation System Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move driver seat and front passenger seat towards rear
2	Remove Audio 20 radio or Audio 20 radio incl. CD changer
			AR82.60-P-7502EW
		Audio 20 radio or Audio 20 radio with CD changer is no longer required.
3	Remove 5-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
		The 5 inch Audio/COMAND display (A40/8) is no longer required.
4	Remove glove compartment
			AR68.10-P-1200EW
5	Remove instrument cluster (A1)
			AR54.30-P-6015EW
	Install
6	Retrofit antenna for global positioning system (GPS)		AN82.61-P-7474-04EWM
7	Install COMAND fan motor (M413)		AN82.85-P-0005-01EWM
8	Install wiring harness of COMAND fan motor (M4/13)		AN82.85-P-0005-02EWM
9	Install remaining parts	Steps 5 to 4 and step 1.
10	Install 7-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
11	Install COMAND controller unit (A403) with DVD changer
			AR82.60-P-7502EW
	Update Vehicle Documentation (VeDoc)
12	Delete special equipment in online vehicle data card	CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
13	Enter special equipment in online vehicle data card	CODE 527 (COMAND with APS navigation system)
14	Attach note "COMAND with APS navigation system retrofitted as per AN82.85-P-0003EWA " under field organization texts to DG 82
15	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
16	Carry out variant coding using software calibration number (SCN)	"Instrument cluster" "COMAND controller unit (A40/3) with DVD changer"
17	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
18	Perform function test	See operator's manual for "COMAND controller unit (A40/3)".
