Retrofit antenna for global positioning system (GPS) - AN82.61-P-7474-04EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207.3##/4## 1# as of 6/1/13 as of model year 2014
MODEL 212.0##/2## 1# as of 4/13/13 as of model year 2014

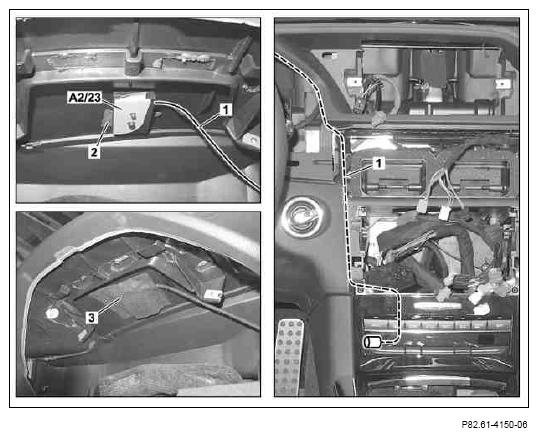

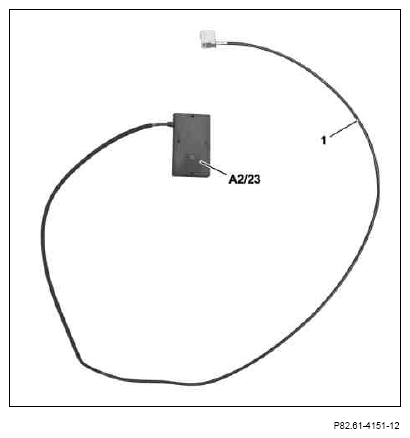

- Wrap felt tape around antenna line (1) of GPS antenna (retrofit) (A2/23).
- Fix adhesive strip (2) into mounting slot in instrument cluster.
- Glue GPS antenna (retrofit) (A223) into the slot of the instrument cluster as shown.
Observe arrow (direction of travel).
- Also use felt tape (3) to fix GPS antenna (retrofit) (A2/23) into place.
- Insert antenna line (1) into the slot of the audio component as shown.
