Install wiring harness of additional fan for COMAND - AN82.85-P-0005-02EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0##/2## 1# as of 4/13/13 as of model year 2014
MODEL 218.3##/9## 1# as of 3/1/13 as of model year 2014

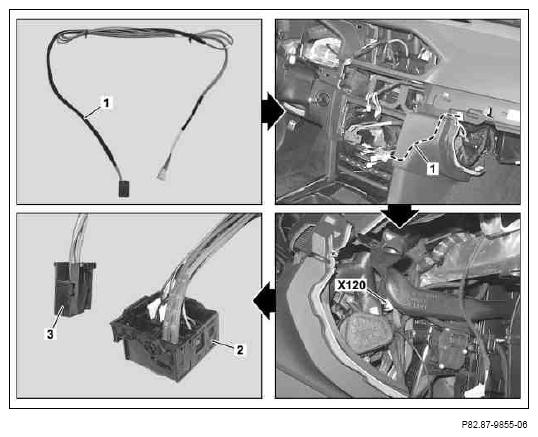

- Form loops with COMAND fan motor wiring harness (1) using cable tie and wrap felt tape around it.
- Route radio fan electrical connection (X120) into the slot of COMAND controller unit.
- Establish the electrical connection to the radio fan (X120) with the white 4-pin plug of COMAND fan motor wiring harness (1).
- Attach black 12-pin connector (3) at 42-pin connector (2).
The 42-pin connector (2) is part of the audio component.
