Retrofit COMAND with APS navigation system - AN82.85-P-0003EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.007/074/077/092/095/098) 1# up to 6/30/11, 212.2## (except 212.207/274/277/292/298) 1# up to 6/30/11 with CODE 510 (Audio 20 with CD changer) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer)

MODEL 212.0## (except 212.007/074/077/092/095/098) 1# up to 6/30/11, 212.2## (except 212.207/274/277/292/298) 1# up to 6/30/11 with CODE 511 (Audio 50 APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer)

MODEL 212.0## (except 212.007/074/077/092/095/098) 1# up to 6/30/11, 212.2## (except 212.207/274/277/292/298) 1# up to 6/30/11 with CODE 523 (MB Audio 20 radio) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer)

MODEL 212.0## (except 212.007/074/077/092/095/098) 1# up to 6/30/11, 212.2## (except 212.207/274/277/292/298) 1# up to 6/30/11 with CODE 525 (MB Audio 50 APS radio) without CODE 088 (Control code NTG 4.5) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer)

MODIFICATION NOTES

30.7.14	Lower screw pipe on Quertrager under instrument panel	Model 212 except CODE 460/494/805/806	BA46.10-P-1001-03Q
30.7.14	Top propeller casting pipe at cross exchanger under instrument panel	Model 212 except CODE 460/494/805/806	BA46.10-P-1002-03Q

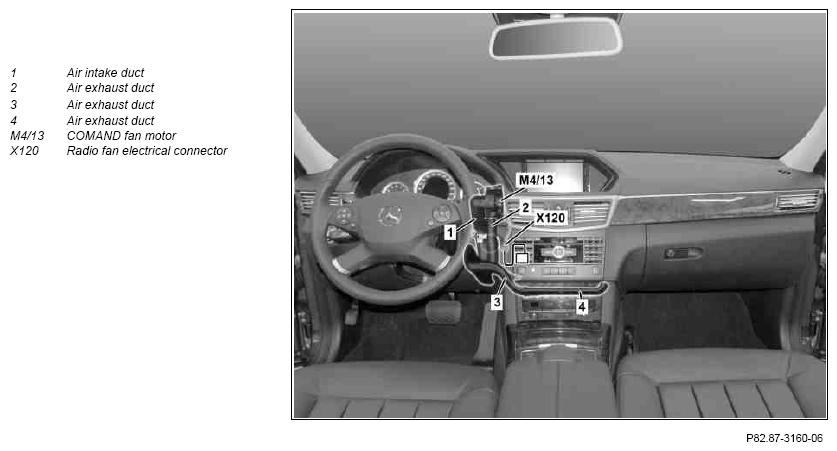

Fig 1: APS Navigation System Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

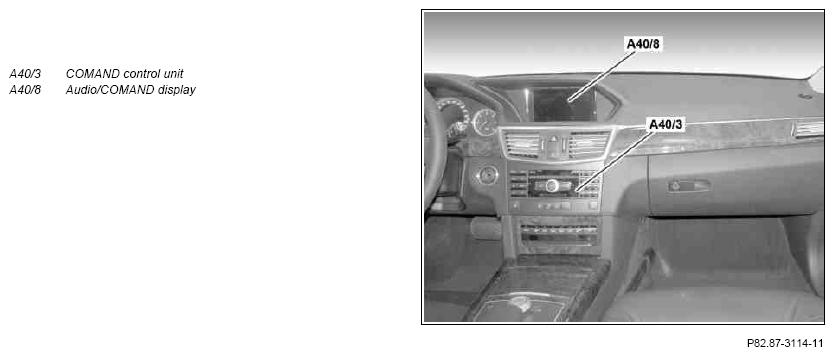

Fig 2: APS Navigation System Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: APS Navigation System Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Move driver seat and front passenger seat towards rear
2	Remove audio component
			AR82.60-P-7502EW
		The removed audio component is no longer required.
3	Remove 5-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
		The 5 inch Audio/COMAND display (A40/8) is no longer required.
4	Remove instrument cluster (A1)
		MODEL 212 with CODE 510 (Audio 20 with CD changer) or with CODE 523 (MB Audio 20 radio)	AR54.30-P-6015EW
5	Remove cover below instrument panel on left (9)	Rechargeable screwdriver, rechargeable drill
6	Remove steering column tube module
			AR54.25-P-2802EW
7	Unclip and remove steering column sleeve (10) at instrument panel
8	Remove screws/bolts (7, 8) and lower steering column tube (6)
	Install
9	Retrofit antenna for global positioning system (GPS)	MODEL 212 with CODE 510 (Audio 20 with CD changer) or with CODE 523 (MB Audio 20 radio)	AN82.61-P-7474-04EW
10	Install COMAND fan motor (M413)		AN82.85-P-0005-01EW
11	Install wiring harness of COMAND fan motor (M4/13)		AN82.85-P-0005-02EW
12	Position steering column tube (6) and tighten using screws/bolts (7, 8)	Lower bolt, jacket tube to cross member below instrument panel	*BA46.10-P-1001-03Q
		Upper bolt, jacket tube to cross member below instrument panel	*BA46.10-P-1002-03Q
13	Clip in steering column sleeve (10) into the instrument panel
14	Install steering column module
			AR54.25-P-2802EW
15	Install instrument cluster (A1)
		MODEL 212 with CODE 510 (Audio 20 with CD changer) or with CODE 523 (MB Audio 20 radio)	AR54.30-P-6015EW
16	Install cover below instrument panel (9) at left	Rechargeable screwdriver, rechargeable drill
17	Install 7-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
18	Install COMAND controller unit (A40/3)
			AR82.60-P-7502EW
19	Enter special equipment on the vehicle data card and the online vehicle data card	Delete: CODE 510 (Audio 20 with CD changer) or CODE 511 (Audio 50 APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 525 (MB Audio 50 APS radio) Add: CODE 527 (COMAND with APS navigation system)
20	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
21	Document retrofitted equipment through VeDoc	Attach note "COMAND APS retrofitted as per AN82.85-P-0003EW " under field organization texts to design group 82.
22	Perform variant coding with XENTRY using the software calibration number (SCN)
23	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
24	Perform function test	See operator's manual for COMAND controller unit (A40/3).

STEERING COLUMN TUBE

Number	Designation		MODEL 212 except CODE 460/494/805/806	MODEL 212 with CODE 460 and 805, MODEL 212 with CODE 460 and 806, MODEL 212 with CODE 494 and 805, MODEL 212 with CODE 494 and 806
BA46.10-P-1001-03Q	Lower bolt, steering column tube to crossmember below instrument panel	Nm	26	-

STEERING COLUMN TUBE

Number	Designation		MODEL 212 except CODE 460/494/805/806	MODEL 212 with CODE 460 and 805, MODEL 212 with CODE 460 and 806, MODEL 212 with CODE 494 and 805, MODEL 212 with CODE 494 and 806
BA46.10-P-1002-03Q	Upper bolt, steering column tube to crossmember below instrument panel	Nm	26	-

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99	COMAND APS package contents	1
