Install wiring harness of additional fan for COMAND - AN82.85-P-0005-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/2## 1# up to 4/12/13

Wrap COMAND fan motor wiring harness (1) with felt tape.

Use the white 4-pin connector (2) of the COMAND fan motor wiring harness (1) and the white 4-pin plug of the COMAND fan motor (M4/13) to create the radio fan electrical connector (X120).

Route COMAND fan motor wiring harness (1) from the radio fan electrical connection (X120) to the slot of the COMAND controller unit.

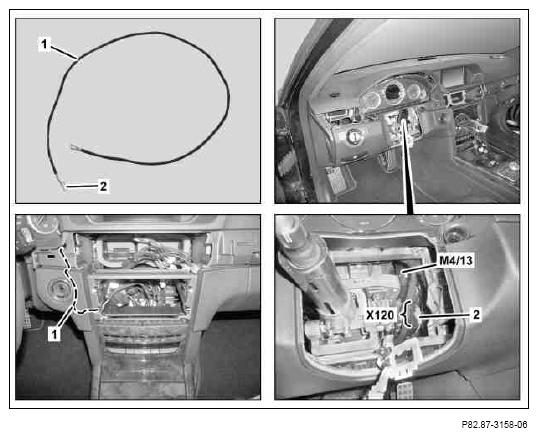

Fig 1: COMAND Fan Motor Wiring Harness And White 4-Pin Plug

Courtesy of MERCEDES-BENZ USA

Remove black 12-pin coupling (4) from 42-pin coupling (3).

Remove insert (5) from black 12-pin connector (4).

Install electrical lines (6) of COMAND fan motor wiring harness in insert (5).

Assignment:

Contact cavity 1= Gray/yellow line

Contact cavity 2= Brown/yellow line

Contact cavity 7= Gray line

Contact cavity 8= Red/yellow line

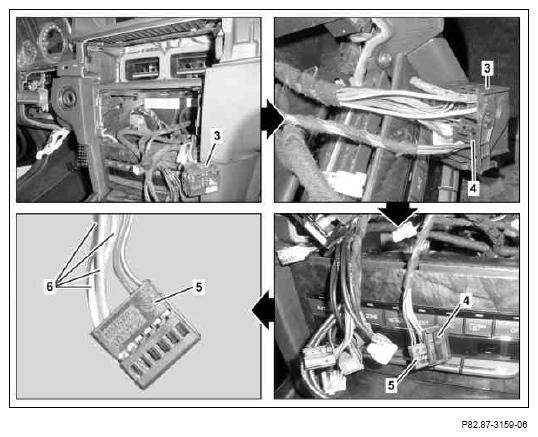

Fig 2: Black 12-Pin Coupling And 42-Pin Coupling

Courtesy of MERCEDES-BENZ USA

Install insert (5) into black 12-pin connector (4).

Install black 12-pin coupling (4) at 42-pin coupling (3).
