Retrofit antenna for global positioning system (GPS) - AN82.61-P-7474-04EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207.3##/4## 1# up to 5/31/13

MODEL 212.0##/2## 1# up to 4/12/13

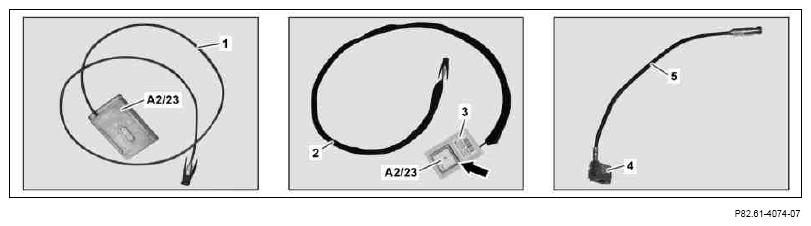

Fig 1: Locating GPS Antenna Covering Foil

Courtesy of MERCEDES-BENZ USA

Wrap felt tape (2) around antenna line (1) of GPS antenna (retrofit) (A2/23).
The blue supporting body (4) is no longer required. The adapter line (5) is connected to the antenna line (1) at a later stage.
Detach blue supporting body (4) from the adapter line (5).
Remove covering foil (3) from GPS antenna (retrofit) (A2/23).
Stick down GPS antenna (retrofit) (A2/23) in slot of instrument cluster as shown.
The opening of the GPS antenna (retrofit) (A2/23) must point towards the windshield.
Also fix GPS antenna (retrofit) (A2/23) in place using felt tape (10).
Insert antenna line (1) into the slot of the audio component as shown.
Connect adapter line (5) to antenna line (1).
Shown on model 212.0

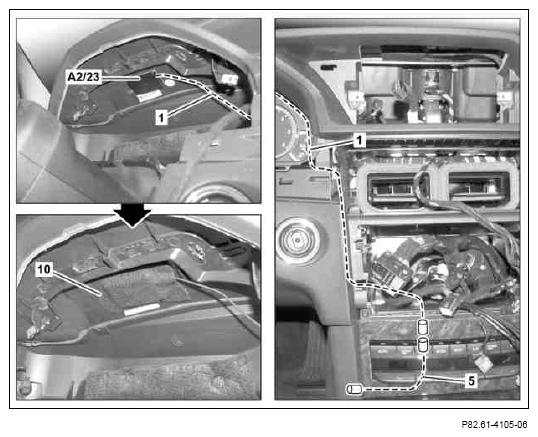

Fig 2: GPS Antenna, Felt Tape And Antenna Line - Shown On Model 212.0
Courtesy of MERCEDES-BENZ USA
Install adapter line (5) in free slot of blue supporting body (8) of Bluetooth antenna line (7).
If necessary, blue supporting body (8) of Bluetooth antenna line (7) must be removed and replaced with a blue supporting body (8) with two slots. For this, the adapter line (5) must be installed in the left slot above the lock (9).

Fig 3: Adapter Line, Blue Supporting Body And Bluetooth Antenna Line
Courtesy of MERCEDES-BENZ USA
