Retrofit COMAND APS with DVD changer - AN82.85-P-0004EWM

MODEL 212.0## (except 212.074/075/076/077/092/093/094/095) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092/093/094/095) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

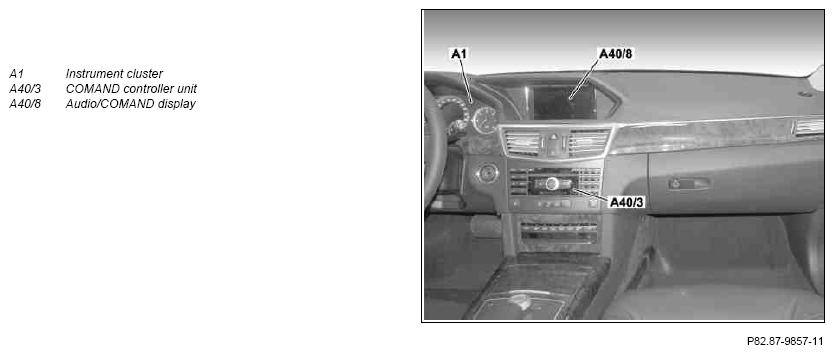

Fig 1: Instrument Cluster, COMAND Controller Unit And Audio/COMAND Display

Courtesy of MERCEDES-BENZ USA

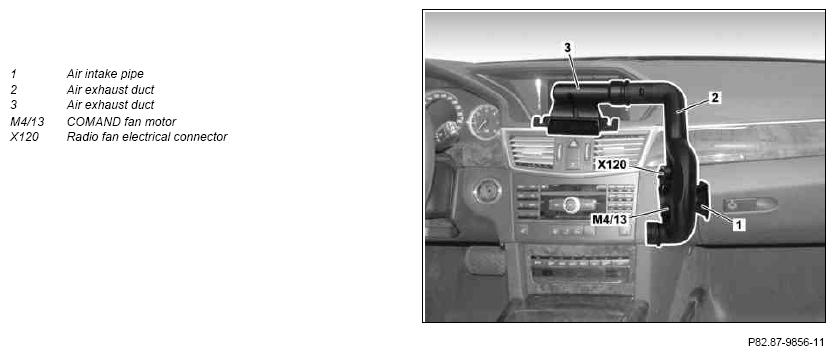

Fig 2: Air Intake Pipe, Air Exhaust Duct And COMAND Fan Motor

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move driver seat and front passenger seat towards rear
2	Remove Audio 20 radio or Audio 20 radio incl. CD changer
			AR82.60-P-7502EW
		Audio 20 radio or Audio 20 radio with CD changer is no longer required.
3	Remove 5-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
		The 5 inch Audio/COMAND display (A40/8) is no longer required.
4	Remove glove compartment
			AR68.10-P-1200EW
5	Remove instrument cluster (A1)
			AR54.30-P-6015EW
	Install
6	Retrofit antenna for global positioning system (GPS)		AN82.61-P-7474-04EWM
7	Install COMAND fan motor (M413)		AN82.85-P-0005-01EWM
8	Install wiring harness of COMAND fan motor (M4/13)		AN82.85-P-0005-02EWM
9	Install remaining parts	Operation steps 5 to 4 and operation step 1.
10	Install 7-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722EW
11	Install COMAND controller unit (A403) with DVD changer
			AR82.60-P-7502EW
	Update Vehicle Documentation (VeDoc)
12	Delete special equipment from the online vehicle data card	CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
13	Enter special equipment into the online vehicle data card	Code 512 (COMAND APS with DVD changer)
14	Attach "COMAND APS with DVD changer retrofitted as per AN82.85-P-0004EWM " note under field organization texts to design group 82
15	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
16	Carry out variant coding using software calibration number (SCN)	"Instrument cluster (A1)" "COMAND controller unit (A40/3) with DVD changer"
17	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
18	Perform function test	See COMAND controller unit operator's manual (A40/3).
