Retrofit COMAND APS with DVD changer - AN82.85-P-0004EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1# up to 4/12/13 up to model year 2014 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1# up to 4/12/13 up to model year 2014 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 5/31/13, 212.2## (except 212.274/275/276/277/292) 1# up to 5/31/13 up to model year 2012 with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 5/31/13, 212.2## (except 212.274/275/276/277/292) 1# up to 5/31/13 up to model year 2012 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODIFICATION NOTES

30.7.14 Lower screw pipe on Quertrager under instrument panel Model 212 except CODE 460/494/805/806 BA46.10-P-1001-03Q
30.7.14 Upper screw pipe on Quertrager under instrument panel Model 212 except CODE 460/494/805/806 BA46.10-P-1002-03Q

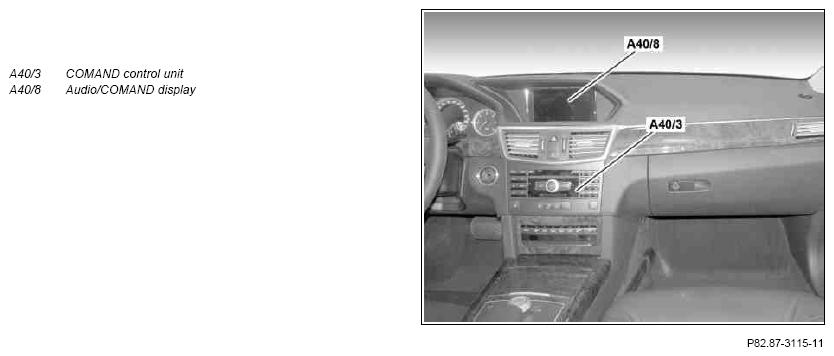

Fig 1: COMAND Control Unit Components (1 Of 3)
G09977534Courtesy of MERCEDES-BENZ USA

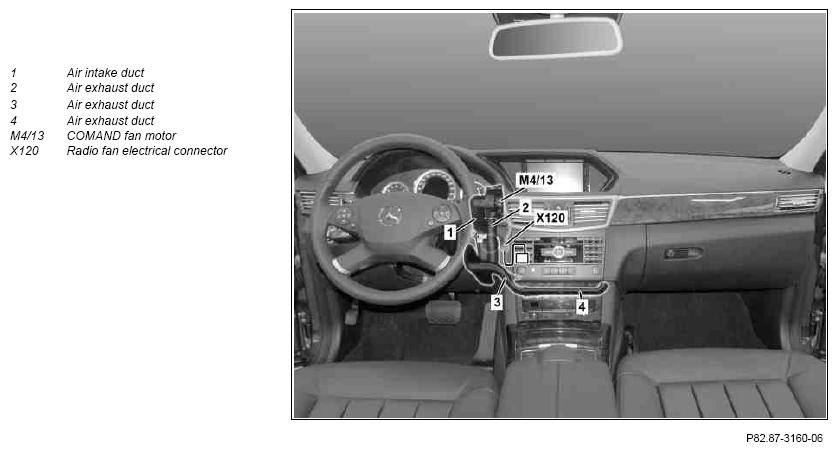

Fig 2: COMAND Control Unit Components (2 Of 3)
G09977535Courtesy of MERCEDES-BENZ USA

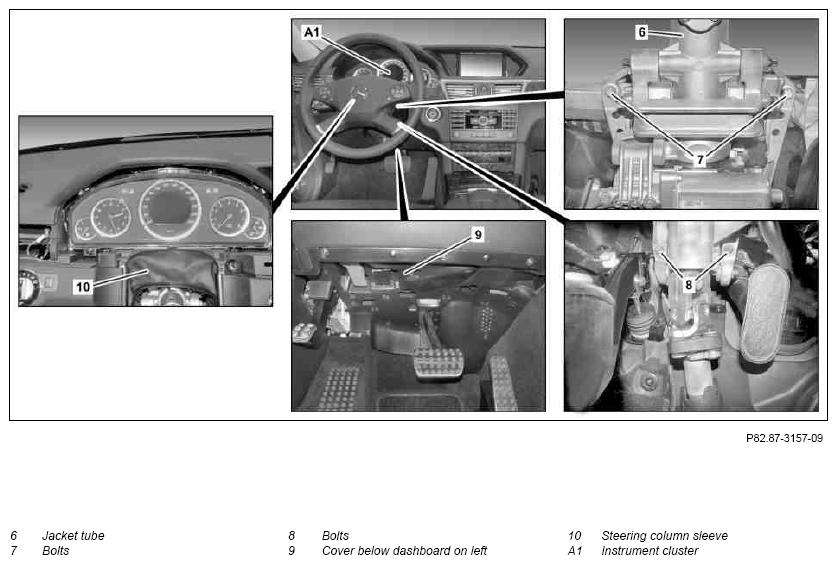

Fig 3: COMAND Control Unit Components (3 Of 3)
G09977536Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Move driver seat and front passenger seat towards rear
2 Remove Audio 20 radio or Audio 20 with CD changer radio or Audio 50 APS radio or Audio 50 APS with DVD changer radio
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
    IMPORTANT The removed audio component is no longer required.
3 Remove 5-inch Audio/COMAND display (A40/8)
REFER TO TESTING & REPAIR     AR82.60-P-7722EW
    IMPORTANT The 5-inch Audio/COMAND display (A40/8) is no longer required.
4 Remove instrument cluster (A1) MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1#
up to 4/12/13
up to model year 2014
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1#
up to 4/12/13
up to model year 2014
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
REFER TO TESTING & REPAIR     AR54.30-P-6015EW
5 Remove cover below instrument panel (9) at left Rechargeable screwdriver, rechargeable drill
6 Remove steering column tube module
REFER TO TESTING & REPAIR     AR54.25-P-2802EW
7 Unclip and remove steering column sleeve (10) at instrument panel
8 Remove screws/bolts (7, 8) and lower steering column tube (6)
INSTALLING Install
9 Retrofit antenna for global positioning system (GPS) MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1# up to 4/12/13
up to model year 2014
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1# up to 4/12/13
up to model year 2014
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
      AN82.61-P-7474-04EW
10 Install COMAND fan motor (M413)   AN82.85-P-0005-01EW
11 Install wiring harness of COMAND fan motor (M4/13)   AN82.85-P-0005-02EW
12 Position steering column tube (6) and tighten using screws/bolts (7, 8) TORQUE SPECIFICATION Lower bolt, steering column tube to crossmember below instrument panel *BA46.10-P-1001-03Q
    Upper bolt, steering column tube to crossmember below instrument panel *BA46.10-P-1002-03Q
13 Clip in steering column sleeve (10) into the instrument panel
14 Install steering column module
REFER TO TESTING & REPAIR     AR54.25-P-2802EW
15 Install instrument cluster (A1) MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1#
up to 4/12/13
up to model year 2014
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 4/12/13, 212.2## (except 212.274/275/276/277/292) 1#
up to 4/12/13
up to model year 2014
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
REFER TO TESTING & REPAIR     AR54.30-P-6015EW
16 Install cover below instrument panel (9) at left Rechargeable screwdriver, rechargeable drill
17 Install 7-inch Audio/COMAND display (A40/8)
REFER TO TESTING & REPAIR     AR82.60-P-7722EW
18 Install COMAND controller unit (A403) with DVD changer
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
19 Connect diagnostic system
20 Enter special equipment in online vehicle data card via Vehicle Documentation System (VeDoc) IMPORTANTDelete:
  • CODE 510 (Audio 20 with CD changer) or
  • CODE 511 (Audio 50 APS with DVD changer) or
  • CODE 523 (MB Audio 20 radio) or
  • CODE 525 (MB Audio 50 APS radio)

Add:
  • CODE 512 (COMAND APS with DVD changer)

21 Document retrofitted equipment via vehicle documentation (VeDoc) IMPORTANT Attach "COMAND APS with DVD changer retrofitted as per AN82.85-P-0004EWA " note under the field organization texts to design group 82.
22 Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
23 Perform variant coding with XENTRY using the software calibration number (SCN)
24 Disconnect Star Diagnosis
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
25 Perform function test IMPORTANT See operator's manual for COMAND controller unit (A40/3) incl. DVD changer.
STEERING COLUMN TUBE

Number Designation MODEL 212 except CODE 460/494/805/806 MODEL 212 with CODE 460 and 805, MODEL 212 with CODE 460 and 806, MODEL 212 with CODE 494 and 805, MODEL 212 with CODE 494 and 806
BA46.10-P-1001-03Q Lower bolt, steering column tube to crossmember below instrument panel Nm 26 -
STEERING COLUMN TUBE

Number Designation MODEL 212 except CODE 460/494/805/806 MODEL 212 with CODE 460 and 805, MODEL 212 with CODE 460 and 806, MODEL 212 with CODE 494 and 805, MODEL 212 with CODE 494 and 806
BA46.10-P-1002-03Q Upper bolt, steering column tube to crossmember below instrument panel Nm 26 -
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Scope of delivery for COMAND APS with DVD changer 1
