Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
Model 212.0 up to 28.02.2013
Model 212.0 as of 01.03.2013

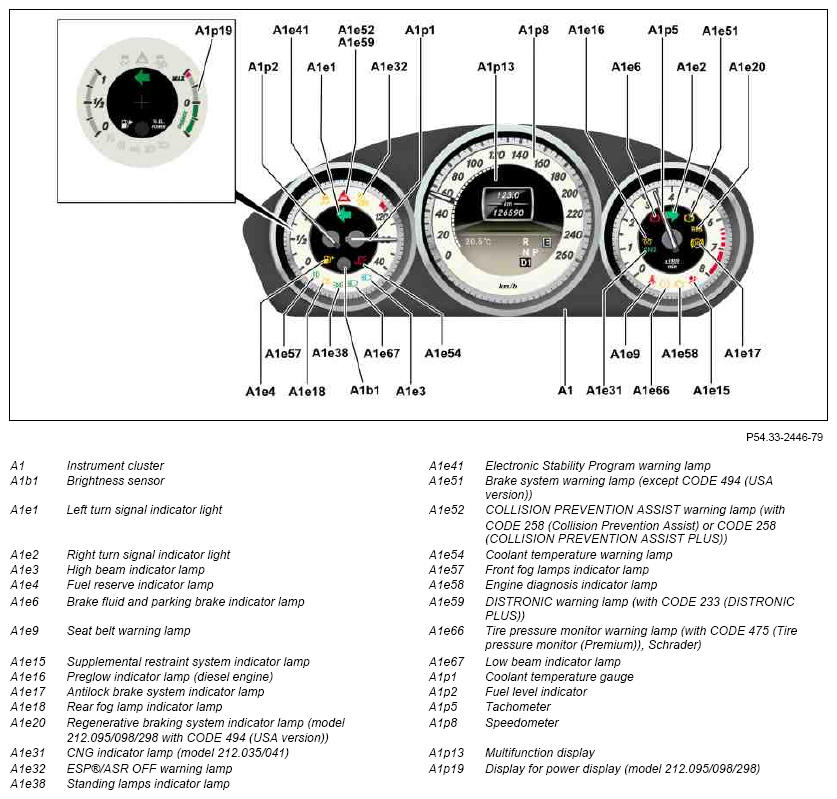

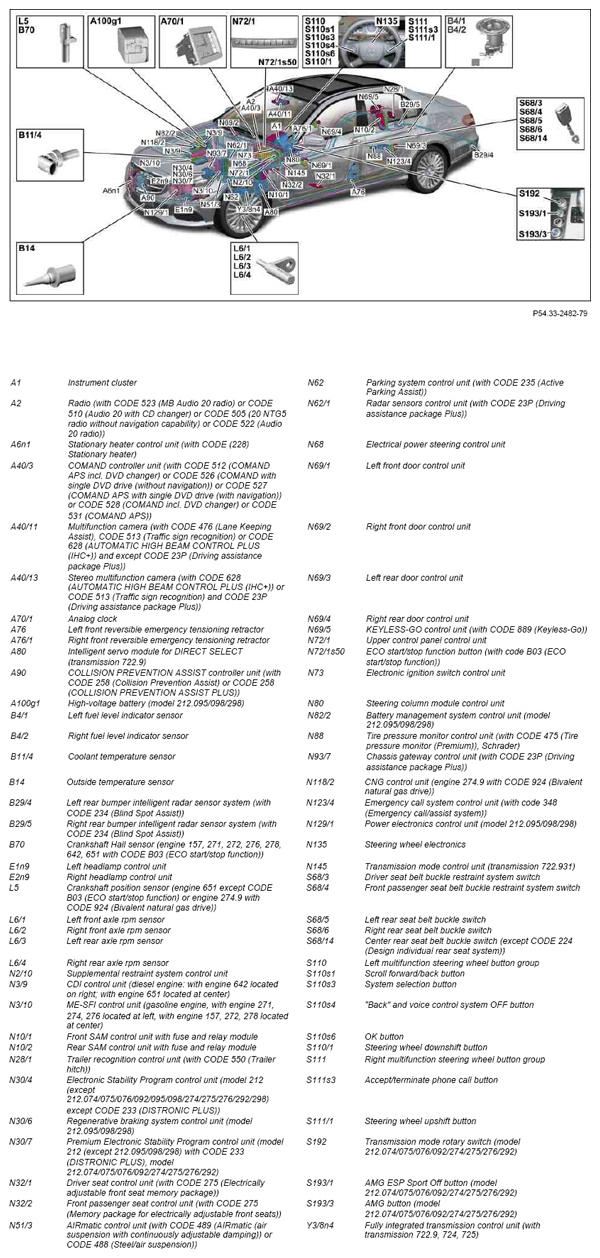

Shown as from 01.03.2013 except model 212.074/075/076/092/274/275/276/292
Fig 4: Overview Of System Components And Instrument Cluster - Shown As From 01.03.2013 Except Model 212.074/075/076/092/274/275/276/292

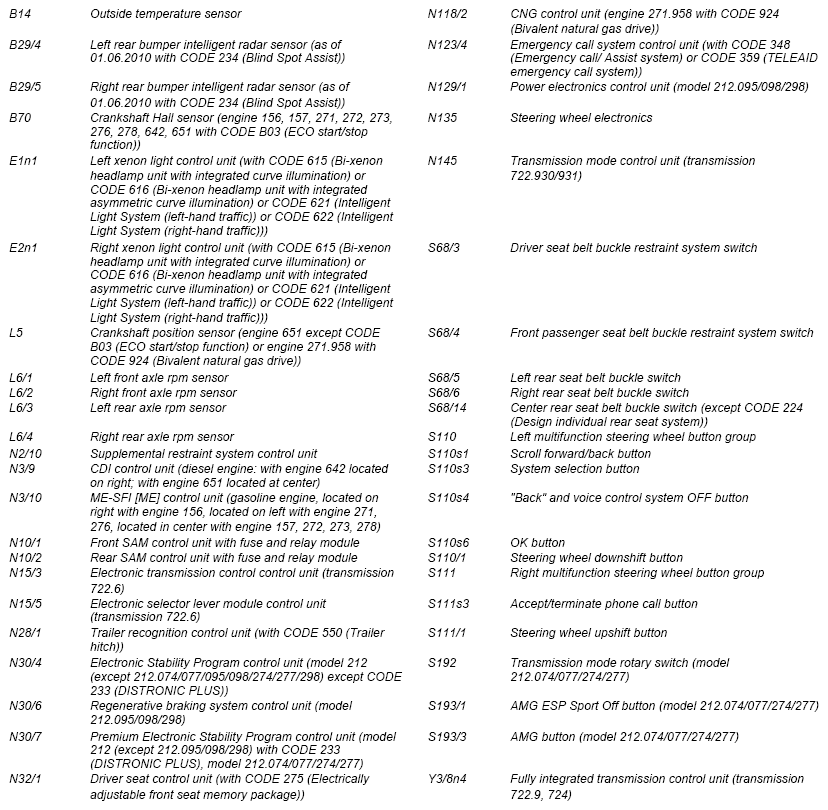

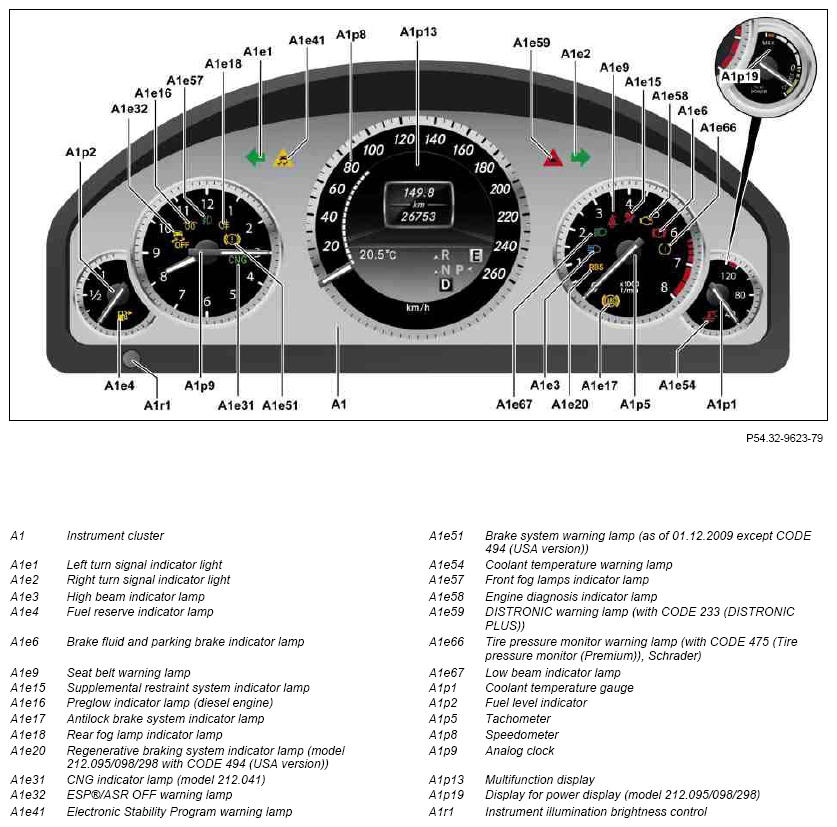

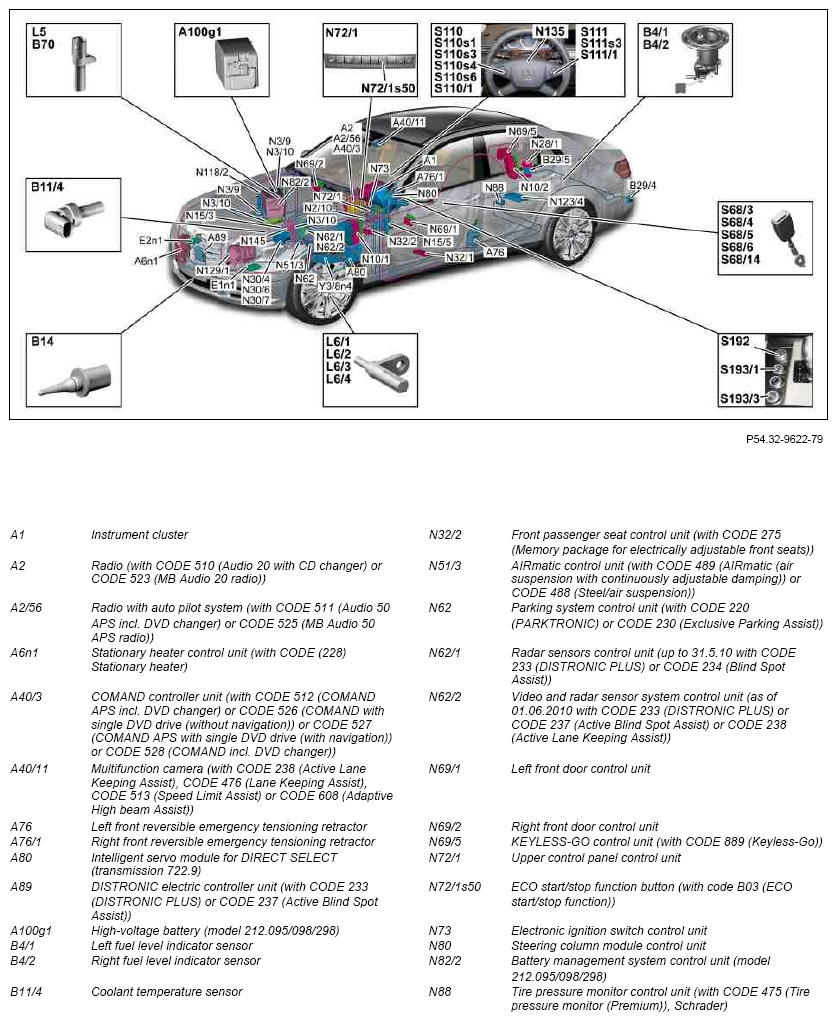

Shown up to 28.02.2013 except model 212.074/077/274/277
Fig 5: Overview Of System Components And Instrument Cluster - Shown Up To 28.02.2013 Except Model 212.074/077/274/277

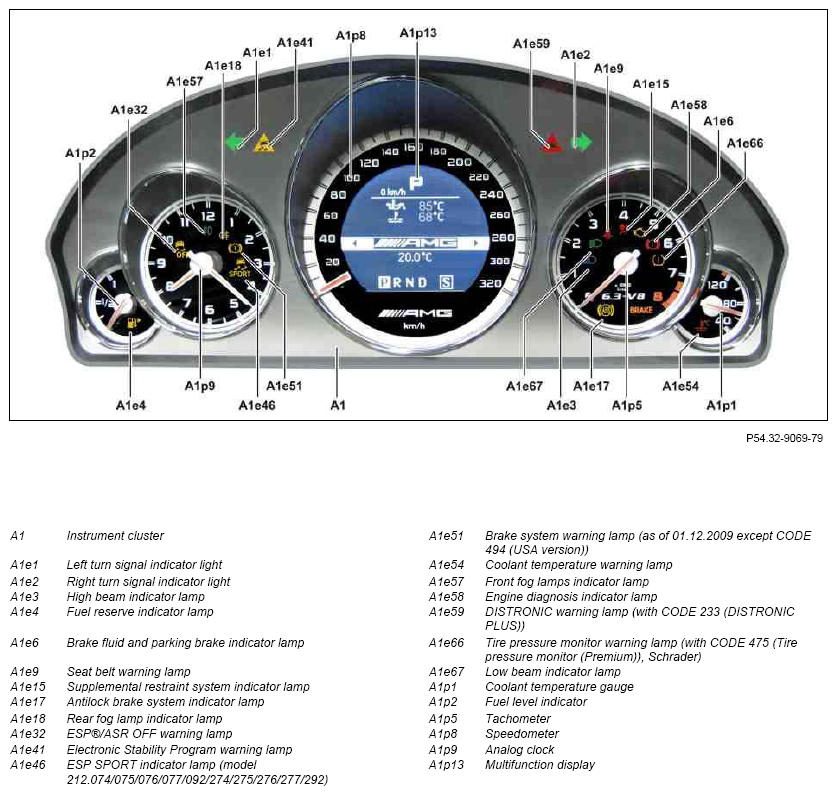

Shown on model 212.074/077/274/277
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the radio | MODEL 212 up to 3/1/15 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 212 up to 3/1/15 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FLA | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122FLM | ||
| Component description for radio with auto pilot system | MODEL 212 with CODE 511 (Audio 50 APS with DVD changer) MODEL 212 with CODE 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112FLA | |
| Stationary heater control unit, component description | MODEL 212 with CODE 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066FL | |
| Component description for COMAND controller unit | MODEL 212 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 212 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) A40/3 |
GF82.85-P-3136FL | |
| MODEL 212 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 212 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FLA | ||
| MODEL 212 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation))/AEJ 12 A40/3 |
GF82.85-P-3136FLJ | ||
| MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212 as of 6/1/12 up to 8/31/14 up to model year 2015 with CODE 528 (COMAND with DVD changer) MODEL 212 as of 9/1/14 up to 3/1/15 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation)) A40/3 |
GF82.85-P-3136FLB | ||
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FLM | ||
| Component description for multifunction camera | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) MODEL 212 as of model year 2014 with CODE 513 (Road sign recognition system) MODEL 212 as of model year 2014 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) MODEL 212 up to model year 2014 with CODE 238 (Active lane keeping Assist) MODEL 212 up to model year 2014 with CODE 513 (Speed Limit Assist) MODEL 212 up to model year 2014 with CODE 608 (Adaptive Highbeam Assist) MODEL 212 with CODE 476 (Lane keeping assist) A40/11, A40/13 |
GF54.21-P-3300FL | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020FL | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) A80 |
GF27.19-P-4020AHL | |
| MODEL 212 with TRANSMISSION 722.930 up to model year 2012 MODEL 212 with TRANSMISSION 722.931 as of model year 2012 A80 |
GF27.19-P-4020AHX | ||
| Component description for DISTRONIC electric controller unit | MODEL 212 up to model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 212 up to model year 2014 with CODE 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213FLA | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 212 as of model year 2014 up to model year 2015 with CODE 258 (Collision Prevention Assist) MODEL 212 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214FLM | |
| Component description for intelligent radar sensor control unit | MODEL 212 as of model year 2011 up to model year 2014 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 |
GF30.30-P-3305FL | |
| Component description for Xenon light control unit | MODEL 212 up to model year 2014 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) MODEL 212 up to model year 2014 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) MODEL 212 up to model year 2014 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 212 up to model year 2014 with CODE 622 (Intelligent Light System (right-hand traffic)) E1n1, E2n1 |
GF82.10-P-2119FL | |
| Headlamp control unit, component description | MODEL 212 as of model year 2014 E1n9, E2n9 |
GF82.10-P-2020FLM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | ||
| MODEL 212.098/298 with ENGINE 651.924 up to 8/31/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212.098/298 with ENGINE 651.9 as of 9/1/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLJ | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9Delphi N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 |
GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 271.8 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212.0/2 with ENGINE 272.983 N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 212.0/2 with ENGINE 273.9 N3/10 |
GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMO | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for electronic transmission control unit | MODEL 212 with TRANSMISSION 722.6 up to model year 2012 N15/3 |
GF27.60-P-5164ACL | |
| Component description for electronic selector lever module control unit | MODEL 212 with TRANSMISSION 722.6 up to model year 2012 N15/5 |
GF27.60-P-5163ACL | |
| Component description for trailer recognition control unit | MODEL 212 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FL | |
| MODEL 212 (except 212.095/098/298) as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FLM | ||
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for driver seat control unit | MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/1 |
GF91.29-P-5231FL | |
| Component description for front passenger seat control unit | MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/2 |
GF91.29-P-5241FL | |
| AIRmatic control unit, component description | MODEL 212 up to model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 212 up to model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FL | |
| MODEL 212 as of model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 212 as of model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FLM | ||
| Parking system control unit component description | MODEL 212 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 212 up to model year 2014 with CODE 230 (Advanced Parking Guidance) N62 |
GF54.65-P-5002FL | |
| Component description for radar sensors control unit | MODEL 212 up to model year 2011 with CODE 233 (DISTRONIC PLUS) MODEL 212 up to model year 2011 with CODE 234 (Blind Spot Monitoring) N62/1 |
GF30.30-P-3301FL | |
| MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FLM | ||
| Component description for video and radar sensor system control unit | MODEL 212 as of model year 2011 up to model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 212 as of model year 2011 up to model year 2014 with CODE 237 (Active Blind Spot Assist) MODEL 212 as of model year 2011 up to model year 2014 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FL | |
| Electrical power steering control unit (ES), component description | MODEL 212 up to model year 2014 N68 |
GF46.35-P-7010FL | |
| MODEL 212 as of model year 2014 N68 |
GF46.35-P-7010FLM | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Component description for KEYLESS-GO control unit | MODEL 212 with CODE 889 (Keyless Go) N69/5 |
GF80.61-P-4204FL | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for battery management system control unit | MODEL 212.095 with ENGINE 276.952 up to model year 2014 MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N82/2 |
GF54.10-P-3012FLH | |
| MODEL 212.095 with ENGINE 276.952 as of model year 2014 MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N82/2 |
GF54.10-P-3012FLM | ||
| Component description for tire pressure monitor control unit | MODEL 212 up to model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FL | |
| MODEL 212 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FLM | ||
| Component description for chassis gateway control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Component description for CNG control unit | MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N118/2 |
GF07.54-P-4000MFG | |
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N118/2 |
GF07.54-P-4000MRC | ||
| Component description for emergency call system control unit | MODEL 212 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212FLU | |
| MODEL 212 with CODE 348 (Emergency call/assistant system) without CODE 359 (TELE AID emergency call system) N123/4 |
GF82.95-P-3212FLV | ||
| Component description for power electronics control unit | MODEL 212.095 with ENGINE 276.952 up to model year 2014 MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N129/1 |
GF08.20-P-1001FLH | |
| MODEL 212.095 with ENGINE 276.952 as of model year 2014 MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N129/1 |
GF08.20-P-1001FLM | ||
| Component description for transmission mode control unit | MODEL 212 with TRANSMISSION 722.930 up to model year 2012 MODEL 212 with TRANSMISSION 722.931 as of model year 2012 N145 |
GF27.19-P-1350AHX | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) Y3/8n4 |
GF27.60-P-5165AHL | |
| MODEL 212 with TRANSMISSION 722.930 up to model year 2012 MODEL 212 with TRANSMISSION 722.931 as of model year 2012 Y38n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 Y38n4 |
GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 Y38n4 |
GF27.60-P-5165ANA | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997FL |
