AIRmatic control unit, component description - GF32.22-P-5109FLM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 as of model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment))

MODEL 212 as of model year 2014 without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) with CODE 488 (Steel/air suspension)

Shown on model 212.0

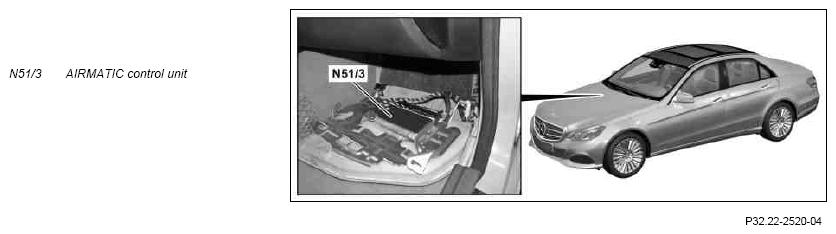

Fig 1: Airmatic Control Unit - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Location

The AIRmatic control unit is mounted under the front-passenger footplate.

Task

The AIRmatic control unit has the following tasks:

Reading in of sensors, pickups and signals
Evaluation of input factors
Actuation of components

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

Direct lines
Chassis CAN 1 (CAN E1)

Direct lines

The following components are read in via direct lines:

Circuit 30g (switched battery positive)
Circuit 31
Left rear level sensor (B22/7)
Left front level sensor (B22/8)
Right front level sensor (B22/9)
Right rear level sensor (B22/10)
Left front body acceleration sensor (B24/3)
Right front body acceleration sensor (B24/4)
Left rear body acceleration sensor (B24/5)
AIRmatic pressure sensor (Y36/6b1)

Chassis CAN 1

The AIRmatic control unit is a subscriber on chassis CAN 1 and receives signals from the following control units:

Electronic Stability Program control unit (N30/4) (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles), except hybrid)
Premium Electronic Stability Program control unit (N30/7) (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles), except hybrid)
Regenerative braking system control unit (N30/6) (with hybrid)

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.

Actuation of components

Components are actuated with the following lines:

Direct lines
Chassis CAN 1

Direct lines

The following components are actuated via direct lines:

AIRmatic pressure reduction valve (A9/1y1)
AIRmatic relay (K67)
Left front level control valve (Y36/6y1), with CODE 489 (AIRmatic (air suspension with continuous variable damping))
Right front level control valve (Y36/6y2), with CODE 489 (AIRmatic (air suspension with continuous variable damping))
Left rear level control valve (Y36/6y3)
Right rear level control valve (Y36/6y4)
AIRmatic central reservoir filling valve (Y36/6y5)
Left front axle damping valve unit (Y51)
Right front axle damping valve unit (Y52)
Left rear axle damping valve unit (Y53)
Right rear axle damping valve unit (Y54)

Chassis CAN 1

The AIRmatic control unit is a subscriber on chassis CAN 1 and sends signals to the following control unit:

Instrument cluster (A1) via chassis CAN 1 and chassis CAN 2 (CAN E2) with front SAM control unit with fuse and relay module interface (N10/1)

Wiring diagram of AIRmatic control unit

PE32.22-P-2101-97DAA
