Remove and install the transfer box (VTG) (Cooper Clubman ALL4 models)

Failure to comply with this requirement will result in serious damage to the transfer box (VTG).

Preliminary work needed:

• Disconnect BATTERY GROUND LEAD .
• Remove right OUTPUT SHAFT .
• Remove PROP SHAFT .
• Remove STARTER MOTOR .
• Remove INTERMEDIATE SHAFT WITH SUPPORT TUBE .
• Remove HOLDER WITH RUBBER MOUNT .
• Support transmission with lifter.

Removal:

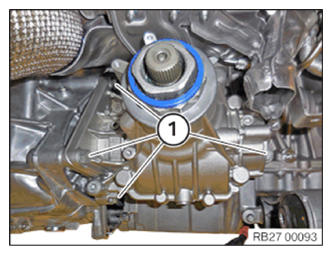

Unscrew the screws (1).

Remove heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

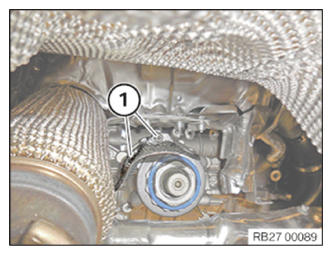

Unscrew the screws (1).

Remove the transfer box (VTG).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

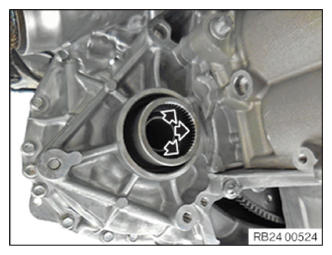

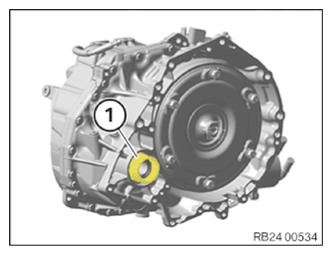

If necessary, insert the intermediate shaft (1) onto the automatic or manual transmission output and replace the radial shaft seal. Refer to: THE RIGHT RADIAL SHAFT SEAL ON THE DIFFERENTIAL (GS6X60DA/BA) or THE RIGHT RADIAL SHAFT SEAL ON DIFFERENTIAL (AISIN F22AW) .

Courtesy of BMW OF NORTH AMERICA, INC.

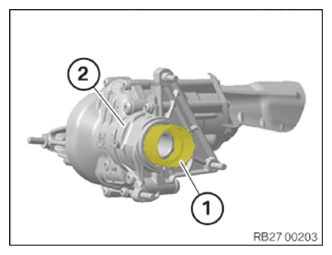

Evenly coat the inside of the output flange with approximately 5g grease.

Grease:  Lubricating grease Optitemp HT 1 LF, part number 83 23 0 417 754

Courtesy of BMW OF NORTH AMERICA, INC.

Install the transfer box (VTG).

Tighten down screws (1).

Tightening torque 27 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install heat shield.

Tighten down screws (1).

Tightening torque 27 10 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install HOLDER WITH RUBBER MOUNT .
• Install INTERMEDIATE SHAFT WITH SUPPORT TUBE  .
• Install STARTER .
• Install PROP SHAFT .
• Install right OUTPUT SHAFT .
• Connect BATTERY GROUND LEAD .
