Removal of intermediate shaft with support tube from transfer box (VTG) (Cooper Clubman ALL4 models)

Preliminary work needed:

• Remove front UNDERBODY PROTECTION

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

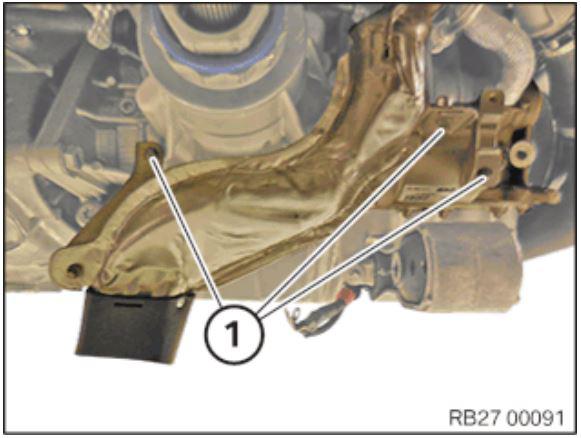

Loosen screws (1).

Remove air duct

Courtesy of BMW OF NORTH AMERICA, INC.

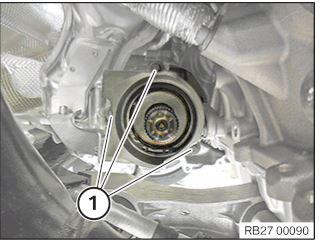

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

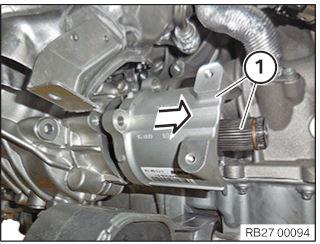

Pull the intermediate shaft with the support tube (1) out of the transfer box (VTG).

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

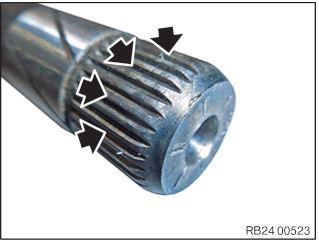

Coat gearing of intermediate shaft uniformly with 5g grease.

Grease:  Lubricating grease Optitemp HT 1 LF, part number 83 23 0 417 754

Courtesy of BMW OF NORTH AMERICA, INC.

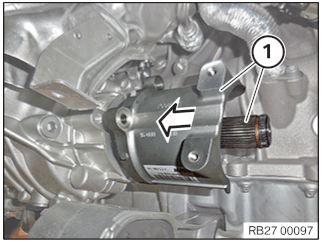

Install the intermediate shaft with support tube (1) in the transfer box (VTG).

Courtesy of BMW OF NORTH AMERICA, INC.

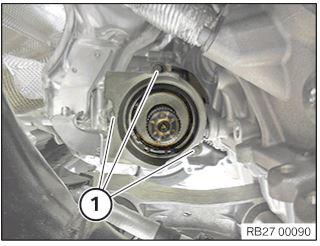

Tighten down screws (1).

Tightening torque 31 60 3AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

Install air duct.

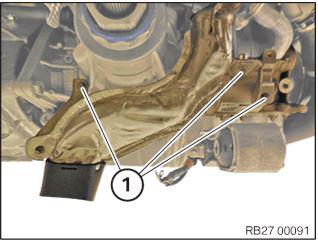

Tighten down screws (1).

Required follow-up work:

• Install front UNDERBODY PROTECTION
