Removing and installing/replacing right output shaft (all-wheel drive vehicle) (Cooper ALL4)
Preliminary work needed:
- Remove right front WHEEL .
- Only vehicles with tu0 engine: DISCONNECT BATTERY GROUND LEAD .
Observe the next two figures for the identification of the engine.
TU0 Engine: Positive battery cable (2) and terminal 50 (1) on the starter motor are not protected against contact.
TU1 Engine: Positive battery cable (2) and terminal 50 (1) on the starter motor are protected against contact.
Removal:

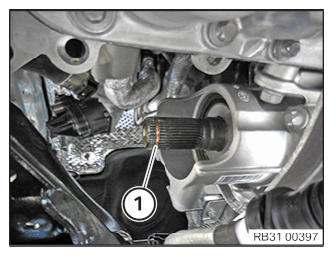

Lever off protective cap (1).
Release collar screw (1), press brake pedal to floor for this purpose.
Secure output shaft against falling out.
Turn steering wheel to right.
Pull the output shaft (1) out of the swivel bearing.

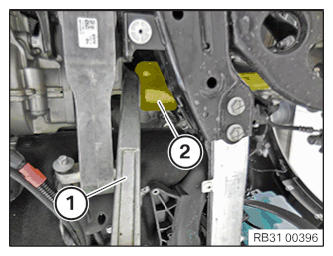

Lever the output shaft (2) out with a mounting lever (1) and remove it from the side.
Installation:
Install retaining ring (1).
Turn steering wheel to right.
Connect the output shaft (1) from the side.
- Check the output shaft for correct locking.
Insert output shaft (1) from the front into the pivot bearing.
- Pay attention to installation position of compression spring (2).
- Keep collar screw and spur toothing of wheel bearing/output shaft clean and free of grease
Attention!
Following installation note for spur gearing must be observed without fail!
Part: Replace collar screw and compression spring.
Tighten collar screw (1) and compression spring hand force.
- Spur gearing of wheel bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth position)!
Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
Once positive locking has been ensured, tighten screw connection to the specified torque.
Tightening torque 31 60 2AZ .
Connect protective cap (1).
Required follow-up work:
- Install front right WHEEL .
- Connect BATTERY GROUND LEAD .
