Replacing evaporator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove the HEATING AND AIR-CONDITIONING UNIT .

Removal:

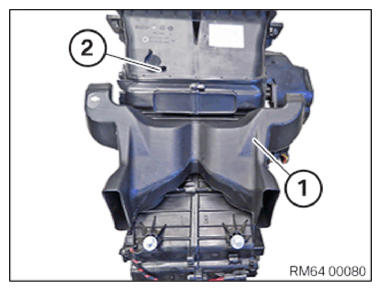

Disengage and remove air duct (1) from heating and air-conditioning unit (2).

G11149207

Courtesy of BMW OF NORTH AMERICA, INC.

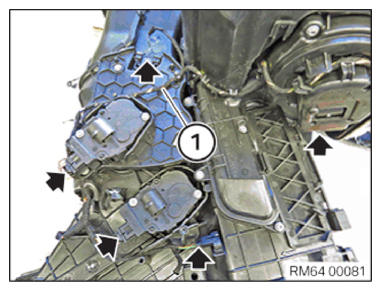

Unlock and disconnect the connector on the highlighted points.

Feed out wiring harness (1).

G11149208

Courtesy of BMW OF NORTH AMERICA, INC.

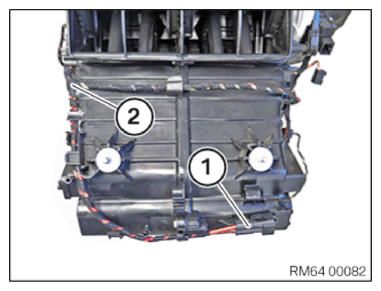

Unlock and remove connector housing (1).

Feed out wiring harness (2).

G11149209

Courtesy of BMW OF NORTH AMERICA, INC.

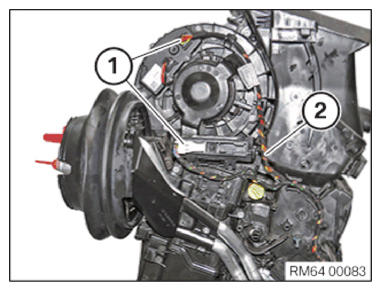

Unlock and disconnect connector (1).

Feed out and remove wiring harness (2).

G11149210

Courtesy of BMW OF NORTH AMERICA, INC.

On version with central kinematics:

Remove CONTROLLER DRIVE for the right footwell flap.

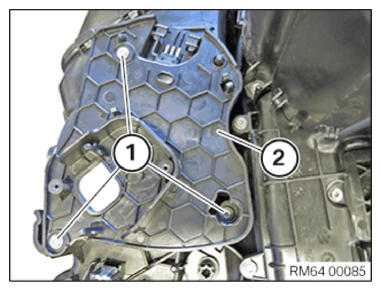

Unscrew the screws (1).

Remove central kinematics (2).

G11149211

Courtesy of BMW OF NORTH AMERICA, INC.

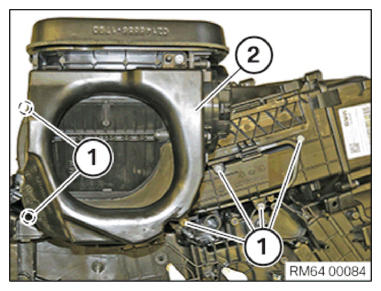

Unscrew the screws (1).

Remove housing fresh air/air return (2).

G11149212

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Properly position housing fresh air/air return (2).

Tighten down screws (1).

G11149212

Courtesy of BMW OF NORTH AMERICA, INC.

On version with central kinematics:

Install the CONTROLLER DRIVE , footwell flap, right.

Properly position central kinematics (2).

Tighten down screws (1).

G11149211

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in wiring harness (2) properly.

Connect and lock the connector (1).

G11149210

Courtesy of BMW OF NORTH AMERICA, INC.

Position and feed in the wiring harness (2) properly.

Position and lock plug connection (1) properly.

G11149209

Courtesy of BMW OF NORTH AMERICA, INC.

Position and feed in the wiring harness (1) properly.

Connect the connector on the highlighted points.

G11149208

Courtesy of BMW OF NORTH AMERICA, INC.

Position and engage the air duct (1) properly on the heating and air-conditioning unit (2).

G11149207

Courtesy of BMW OF NORTH AMERICA, INC.

The following components need to be remounted:

HEAT EXCHANGER .
BLOWER .
MICROFILTER .
CONTROL UNIT for heating and air conditioning system.
All controller drives. Refer to: THE CONTROLLER DRIVE OF THE MIXED AIR FLAP (LEFT) , THE ACTUATOR DRIVE FOR FRESH/RECIRCULATED AIR FLAP , THE CONTROLLER DRIVE FOR THE MIXED AIR FLAP (RIGHT) , THE CONTROLLER DRIVE OF THE DEFROSTER FLAP and THEACTUATOR DRIVE FOR RIGHT FOOTWELL FLAP .
EVAPORATOR TEMPERATURE SENSOR .

Required follow-up work:

Install HEATING AND AIR-CONDITIONING UNIT .
