Removing and installing/replacing control unit for air conditioning
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Removal:
NOTE:
The control unit for the heating and air conditioning system is located in the footwell on the left next to the heating and air-conditioning unit.

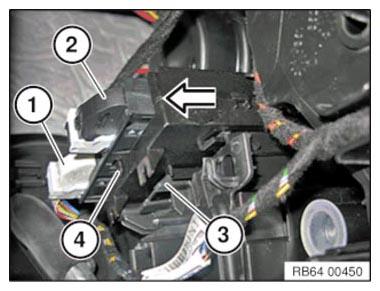

Unlock and detach plug connections (1 and 2).
Unlock detent (3) downward.
Pull out control unit (4) in arrow direction and remove.
Replacement:
Carry out PROGRAMMING/CODING .
Installation:
NOTE:

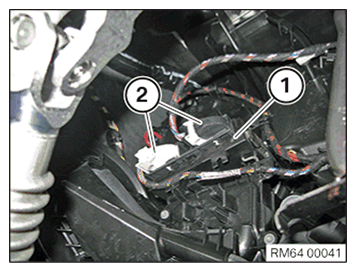

Make sure control unit (1) is correctly fitted.
Lock control unit (1).
Join and lock plug connections (2).
