Remove and install/replace the controller drive of the mixed air flap (left)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove left hand side center CONSOLE TRIM PANEL .
Removal:

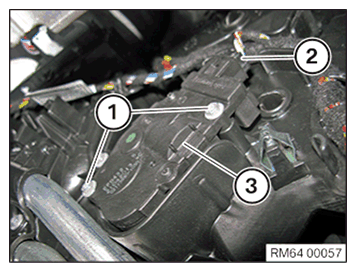

Unscrew the screws (1).
Unfasten plug connection (2) and disconnect.
Remove actuator drive (3).
Installation:
Position actuator drive (3) correctly.
Tighten down screws (1).
Join and lock plug connection (2).
Required reworking:
- Install left hand side center CONSOLE TRIM PANEL .
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the diagnostic system:
Service functions:
- Body
- Heating/air conditioning function
- Flap motors
- Readdress flap motors
