Removing and installing/replacing heater/air conditioner fan

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove CONTROLLER for blower.
Remove HEATING/AIR CONDITIONING UNIT .
Remove the left hand side CENTER CONSOLE TRIM PANEL

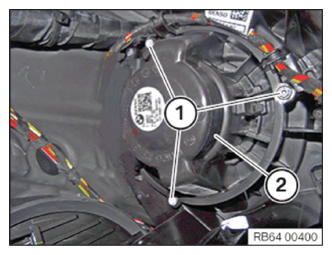

Removal:

Unscrew the screws (1).

Remove blower (2).

Courtesy of BMW OF NORTH AMERICA, INC.

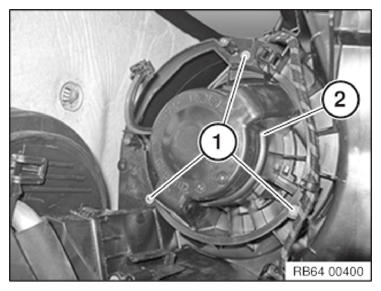

Installation:

Position blower (2) correctly.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install CONTROLLER for blower.
Install HEATING/AIR CONDITIONING UNIT
Install the left hand side CENTER CONSOLE TRIM PANEL
