Removing and installing/replacing actuator drive for fresh/recirculated air flap
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove bottom right DASHBOARD TRIM PANEL .
Removal:

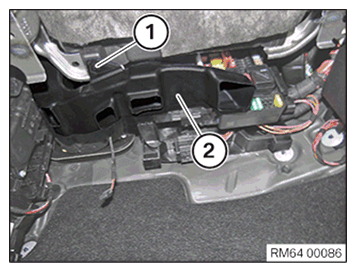

Loosen the screw (1) and feed out the air duct (2) downwards.

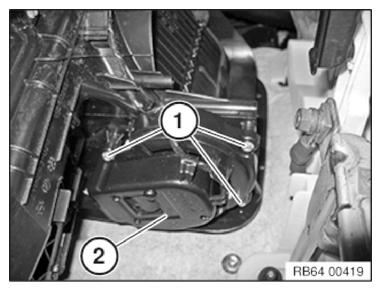

Unscrew the screws (1).
Unlock associated plug connection and disconnect.
Remove actuator drive with holder (2).
Replacement:

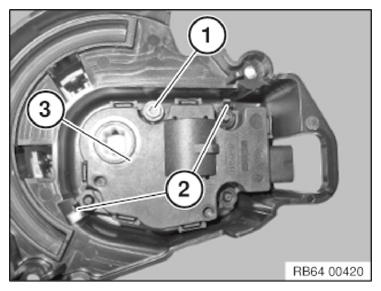

Remove screw (1).
Unlock detents (2).
Remove actuator drive (3).
Installation:
Position actuator drive (3).
Lock detents (2).
Tighten screw (1).
Correctly position actuator drive with holder (2).
Tighten down screws (1).
Join and lock associated plug connection.
Feed in the air duct (2) and correctly engage at heating and air-conditioning unit.
Tighten screw (1).
NOTE:
Ensure the air duct (2) is fitted correctly and securely.
Required reworking:
- Install bottom right INSTRUMENT PANEL TRIM PANEL .
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnostic system.
Service functions:
- Body
- Heating/air conditioning function
- Flap motor
- Readdress flap motors
