Removing and installing/replacing the controller drive for the mixed air flap (right)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Remove center console side TRIM PANEL .
Removal:

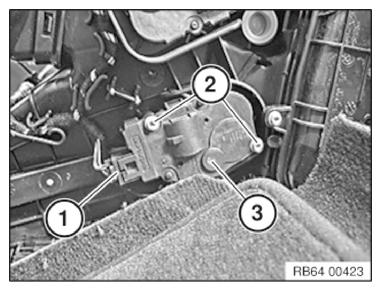

Unfasten plug connection (1) and disconnect.
Unscrew the screws (2).
Remove actuator drive (3).
Installation:
Position actuator drive (3) correctly.
Tighten down screws (2).
Join and lock plug connection (1).
Required reworking:
- Install center console side TRIM PANEL .
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnostic system.
Service functions:
- Body
- Heating/air conditioning function
- Flap motors
- Readdress flap motors
