Removing and installing instrument panel trim

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

Preliminary work needed:

Courtesy of BMW OF NORTH AMERICA, INC.

The following parts must be removed as preliminary work.

For equipment specification with Head-Up Display, make sure that Head-Up Display is retracted.

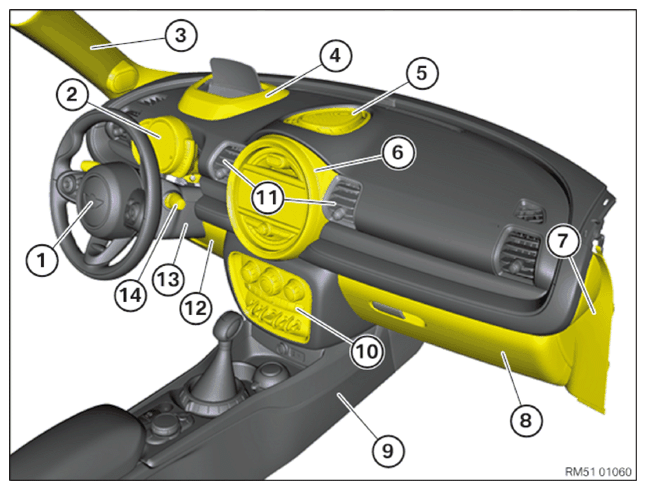

1	Airbag. Refer to: AIRBAG UNIT , AIRBAG UNIT (SPORTS STEERING WHEEL) and STEERING WHEEL .
2	INSTRUMENT CLUSTER .
3	TRIM PANEL for a-pillar, left/right.
4	COVER for head-up display.
5	MID-RANGE SPEAKERS .
6	CENTRAL INSTRUMENT and HEADUNIT .
7	left/right SIDE COVER on dashboard.
8	GLOVE COMPARTMENT WITH HOUSING .
9	CENTER CONSOLE, COMPLETE .
10	CONTROL PANEL for air conditioning.
11	Fresh air grille, middle, left/right. Refer to: CENTER RIGHT FRESH AIR GRILLE andCENTER LEFT FRESH AIR GRILLE .
12	Bottom instrument PANEL TRIM .
13	Lower part/upper section of steering column shroud. Refer to: LOWER PART OF STEERING COLUMN SHROUD and STEERING COLUMN SHROUD UPPER SECTION .
14	STEERING COLUMN SWITCH CLUSTER .

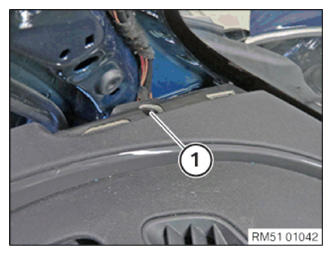

Remove screw (1).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

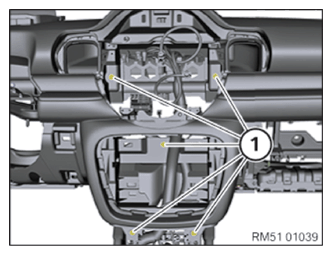

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

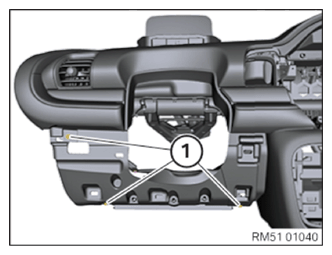

Release screws (1) on passenger's side.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. The wiring harness is therefore not present in the graphic.

Disconnect plug connection (1) from front passenger airbag (2).

US version only (no diagram):

Disconnect 3 plug connections (1) from front passenger airbag (2).

(Observe notes regarding AIRBAG PLUG CONNECTIONS ).

Courtesy of BMW OF NORTH AMERICA, INC.

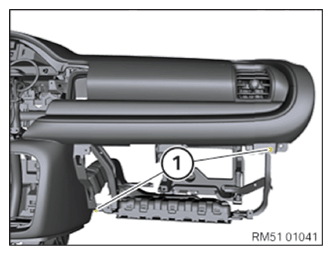

Release screws (1) on driver's side.

Remove dashboard with the help of a support person and guide out all electrical lines.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Graphic is only an example.

Make sure that guides (1) on dashboard (2) are correctly seated in respective mountings of Firewall.

Make sure gaskets are correctly seated on air ducts.

Insert foam shaped part of dashboard (2) correctly at center and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert dashboard with the help of a support person and guide in all electrical lines.

NOTE: Screw down the dashboard starting from the middle and working towards the outside.
Make sure all electrical lines are correctly routed.

Tighten down screws (1).

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on driver's side.

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. The wiring harness is therefore not present in the graphic.

Connect plug connection (1) of front passenger airbag (2) and lock.

US version only (no diagram):

Connect 3 plug connections (1) passenger airbag (2) and lock.

(Observe notes regarding AIRBAG PLUG CONNECTIONS ).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on passenger's side.

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 51 45 1AZ .

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Courtesy of BMW OF NORTH AMERICA, INC.

The following parts must be installed as follow-up work.

1	Airbag. Refer to: AIRBAG UNIT , AIRBAG UNIT (SPORTS STEERING WHEEL) and STEERING WHEEL .
2	INSTRUMENT CLUSTER .
3	TRIM PANEL for a-pillar on left/right.
4	COVER for head-up display.
5	MID-RANGE SPEAKERS .
6	CENTRAL INSTRUMENT and HEADUNIT .
7	Left/right SIDE PANEL on dashboard.
8	GLOVE COMPARTMENT WITH HOUSING .
9	CENTER CONSOLE SUPPORT .
10	CONTROL PANEL for air conditioning.
11	Fresh air grille, middle, left/right. Refer to: CENTER RIGHT FRESH AIR GRILLE and CENTER LEFT FRESH AIR GRILLE .
12	Bottom instrument PANEL TRIM .
13	Lower part/upper section of steering column shroud. Refer to: LOWER PART OF STEERING COLUMN SHROUD and STEERING COLUMN SHROUD UPPER SECTION .
14	STEERING COLUMN SWITCH CLUSTER .
