Removing and installing (replacing) center left fresh air grille

Removal:

NOTE: Diagram similar.

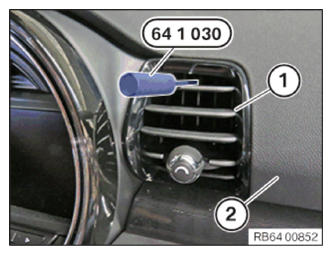

Pull out fresh air grille (1) from dashboard with special tool 64 1 030 (2).

G13825935Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

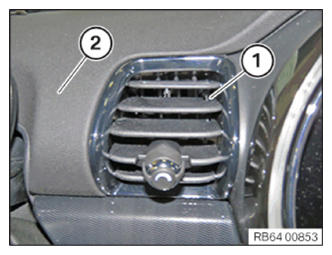

Position fresh air grille (1) correctly and engage in dashboard (2).

G13825936Courtesy of BMW OF NORTH AMERICA, INC.
